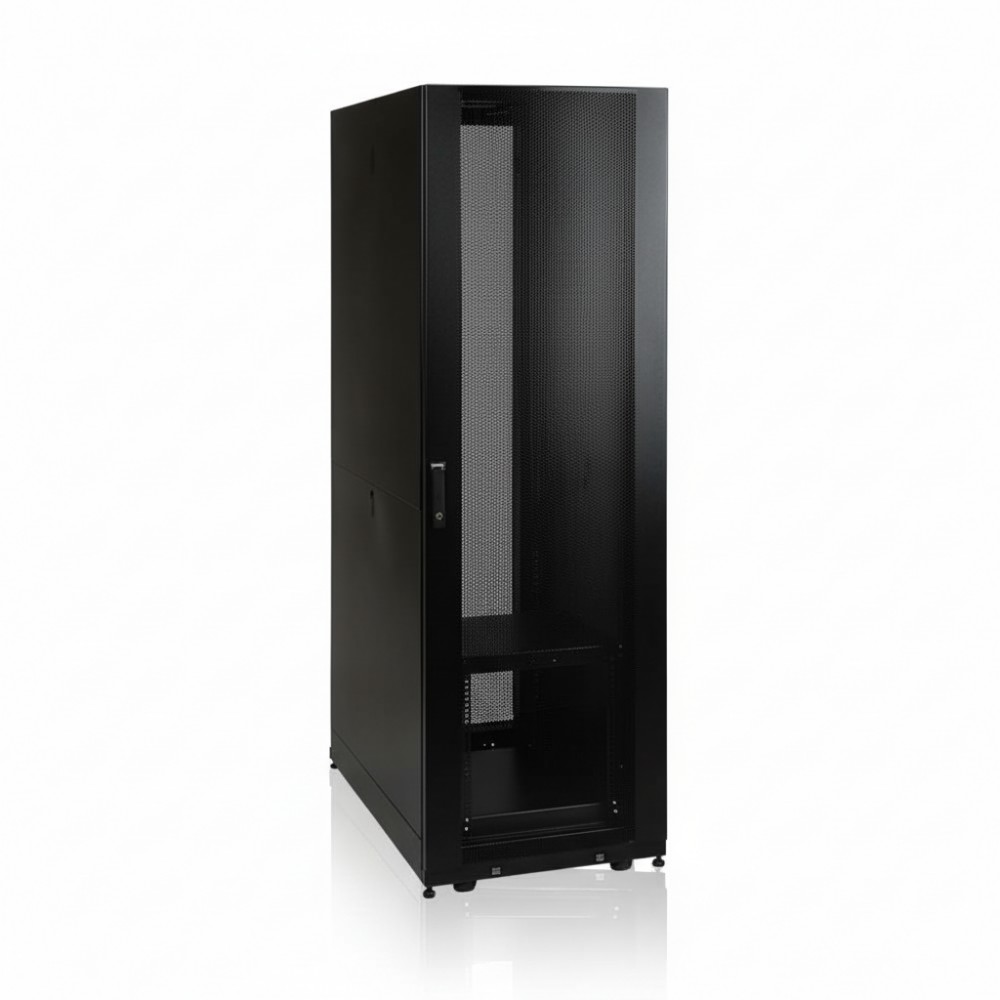

Eaton SR42UB - 42U Standard Rack Enclosure Cabinet
Overview
The Eaton SR42UB is a 42U floor-standing rack enclosure engineered to house and protect 19-inch EIA-310 rackmount IT equipment such as servers, switches, PDUs, UPS modules, and cable management accessories. It is deployed by data center infrastructure teams, network engineers, and facilities planners in core, IDF/edge, and enterprise server rooms where secure physical mounting and structured cable routing are required.
Electrically passive, this cabinet provides structural support and organization without active components. It features heavy-duty vertical mounting rails adjustable in 1/4-inch increments and a standard 42 U rack height with ample internal space to accommodate full-depth equipment and rack-mounted accessories with clearances defined by rail placement.
The SR42UB's standard depth (~43 in external/37 in usable internal) and 24-inch (600 mm) width balance floor footprint with depth to support general-purpose IT deployments. It ships fully assembled with integrated casters and leveling feet for positioning and stabilization in data centers, wiring closets, or technical rooms.
Security and serviceability are supported through locking, removable, and reversible front and rear doors, as well as removable, keyed-alike side panels that simplify maintenance access while deterring tampering. Perforated door patterns promote front-to-rear airflow for standard forced-air cooling strategies.
In typical deployment, this cabinet holds a mix of active devices and structured cabling in a central or edge rack row. It is not designed for shock isolation of seismic loads or for non-standard equipment widths outside EIA-310. Specialized racks may be required for extra-deep or wide equipment beyond standard IT gear.
Key Features
- 42U standard rack enclosure for 19″ EIA-310 equipment
- Lockable front/rear doors and keyed removable side panels
- Adjustable vertical mounting rails with 1/4″ depth increments
- Ships fully assembled with casters and leveling feet
- Perforated panels enabling front-to-rear airflow
Specifications
| Specification | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | SR42UB |
| Product Type | Floor-Standing Rack Enclosure Cabinet |
| Rack Height | 42U |
| Rack Width | 19 in (EIA-310) |
| External Depth | ≈43 in (1092 mm) |
| Usable Internal Depth | ≈37 in (940 mm) |
| Width (External) | ≈23.63 in (600 mm) |
| Height (External) | ≈78.5 in (1993 mm) |
| Material | Steel with black powder-coat |
| Load Capacity (Stationary) | 3000 lb (1361 kg) |
| Load Capacity (Rolling) | 2250 lb (1021 kg) |
| Doors | Lockable front & rear (reversible, removable) |
| Side Panels | Lockable, removable, keyed alike |
| Rail Type | Adjustable with square mounting pattern |
| Casters | Pre-installed, removable |
| Leveling Feet | Included, removable |
| Ventilation | Perforated doors for airflow |
| Compliance | EIA-310-E, UL 60950-1, RoHS, CE |
| Cable Access | Top cable routing openings, open bottom |
| Baying Tabs | Built-in for row combination |
