Detailed Specifications

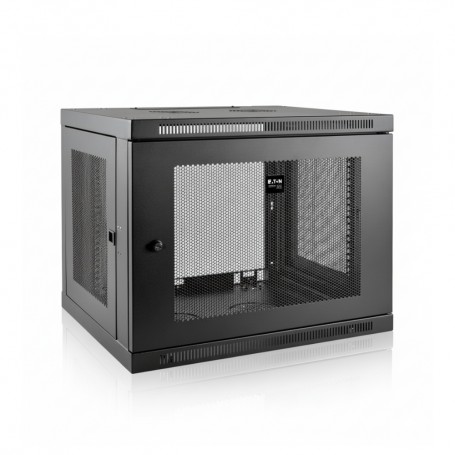

Eaton Tripp Lite SRW9UDP - 9U Wall-Mount Rack Enclosure
Overview :
The SRW9UDP from Eaton Tripp Lite is a 9U, low-profile, wall-mount rack enclosure built to house 19-inch EIA-standard network switches, patch panels or similar equipment. It supports equipment mounting depths up to 20.5 in (521 mm) and includes vented panels and a locking steel frame to provide physical security and airflow for installed gear. Designed for deployment in network wiring closets, retail locations, back office or edge-site installations where floor space is limited. Equipment installation is facilitated via adjustable vertical mounting rails and the enclosure ships fully assembled for fast deployment.
Key Features :
Supports 9U of 19-inch rack equipment up to 520 mm deep
Heavy-duty steel construction with front, top & side ventilation
Lockable front door and removable side panels for secure access control
Wall-mountable or convertible to caster-mobile with optional kit
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number | SRW9UDP |
| Product Type | 9U Wall-Mount Rack Enclosure Cabinet |
| Rack Units | 9U |
| Equipment Mounting Depth Max | 20.5 in (521 mm) |
| Load Capacity | 200 lb (90.7 kg) |
| Number of Vertical Mounting Rails | 4 |
| Rail Mounting Hole Type | Square-hole or 12-24 threaded |
| Color | Black |
| Country of Origin | China |
| Warranty | 5-year limited |
