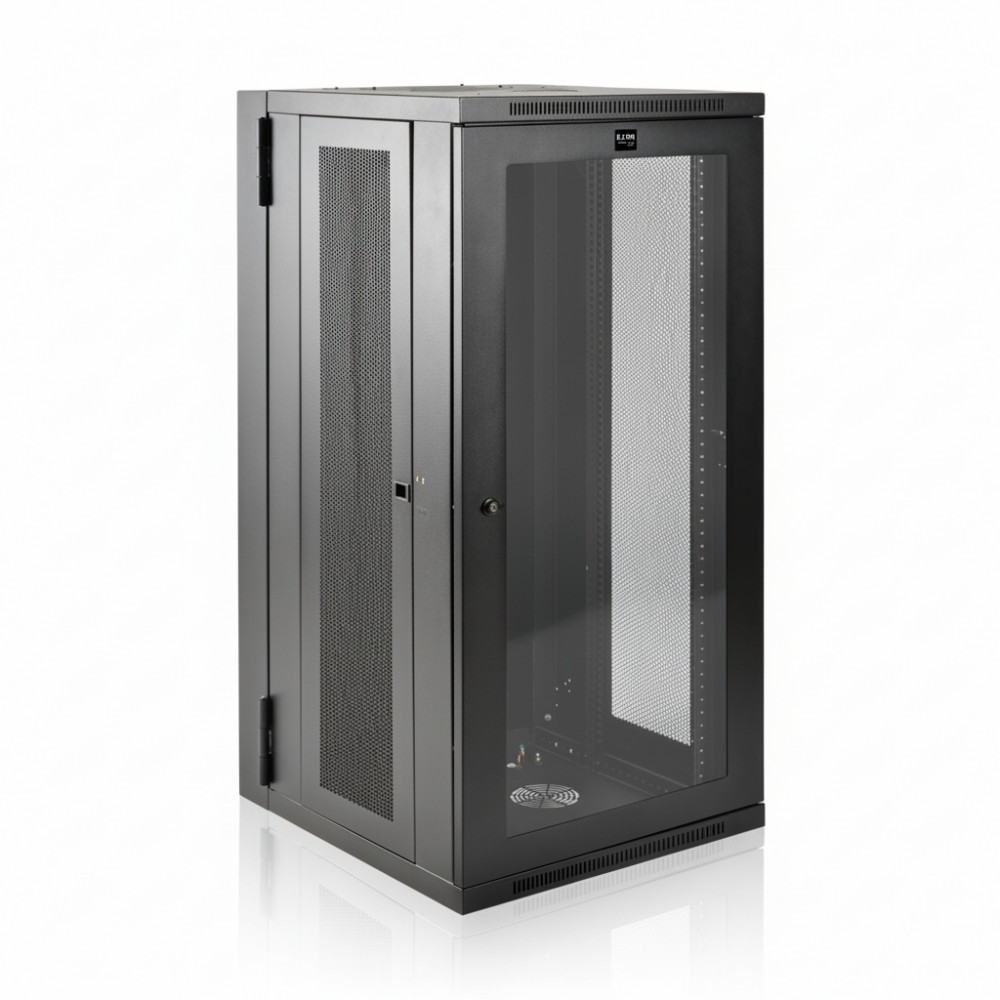

Eaton SRW26USDP - 26U UPS-Depth Wall-Mount Rack Enclosure
Overview :
The Eaton SRW26USDP is a 26U UPS-depth wall-mount rack enclosure engineered to house 19-inch EIA-310 rack equipment in space-constrained IT closets, network rooms, and edge environments. It is deployed by infrastructure engineers, network technicians, and facilities staff to secure, organise, and protect servers, switches, UPS systems, patch panels, and related cabling where floor footprint is limited. The hinged design allows easy rear access to equipment and cabling without removing the cabinet from the mounting surface.
The enclosure supports 26 rack units (U) of equipment and accommodates devices up to 24.5 in (≈623 mm) deep. Constructed from heavy-duty steel with a black powder-coat finish, it includes four adjustable vertical mounting rails with numbered U-marks, vented panels on all sides for airflow, and lockable front door and side panels to secure installed gear.
This model is installed as a wall-mounted cabinet using the integrated hinged bracket; it swings away from the wall for maintenance and deployment tasks. Cable entry/exit ports at the top and bottom provide structured pathways for power and data conduits. The unit ships with mounting hardware, cage nuts, screws, and keys.
Integration with structured racks and enclosures is via EIA-310 standard 19″ rail spacing, permitting common rack devices and accessories to be mounted without modification. Optional accessories such as a caster kit can convert the unit for on-floor mobility if wall-mount use is not required.
In practice, use SRW26USDP in IDF/edge closets, branch office wiring rooms, classrooms, and retail technology hubs where full floor racks are impractical. It is not intended for outdoor exposed environments, precision data-center aisles requiring heavy load-rated cabinets, or for housing very deep, high-mass UPS/battery stacks without additional support structures.
Key Features
• 26U EIA-310 wall-mount rack enclosure cabinet
• UPS-depth supports equipment up to 24.5 in deep
• Hinged wall bracket swings away for rear access
• Lockable vented panels on all sides
• Adjustable mounting rails with numbered U marks
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SRW26USDP |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 26 U |
| Rack Width | 19 in (EIA-310) |
| Max Equipment Depth | 24.5 in (≈623 mm) |
| Maximum Load Capacity | 250 lb (113.4 kg) |
| Material | Steel with black powder-coat |
| Door | Lockable steel front |
| Ventilation | Vented panels front, top, bottom, sides |
| Mounting Type | Wall-mount with hinged bracket |
| Vertical Rails | 4, adjustable with numbered U marks |
| Cable Access | Top and bottom ports |
| Dimensions (H×W×D) | 49.6×23.6×25.5 in |
| Weight | ~124.9 lb (56.6 kg) |
| Compliance | EIA-310-E, RoHS, UKCA |
