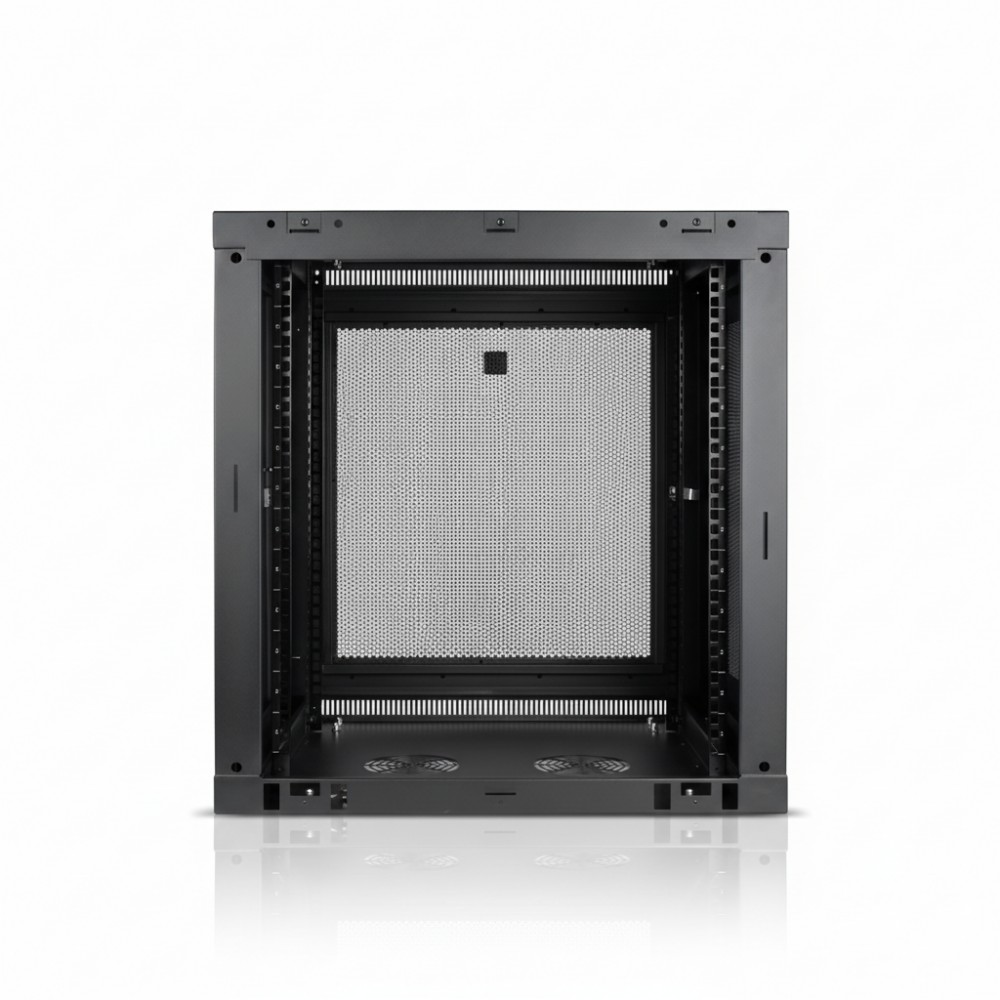

Eaton SRW12UDP - 12U Wall-Mount Rack Enclosure
Overview :
The Eaton SRW12UDP is a 12U low-profile wall-mount rack enclosure designed to house 19-inch EIA-standard rack equipment in constrained spaces. It is typically deployed by network engineers, rack installers, and infrastructure teams to secure and organise active equipment such as switches, patch panels, UPS units, and small servers in wiring closets, retail locations, classrooms, and back offices where floor footprint is limited.
Constructed as a steel enclosure with flow-through ventilation, the SRW12UDP supports up to 12 rack units (U) of equipment with a maximum static load capacity of 200 lb (≈90.7 kg) and accommodates equipment depths up to 20.5 in (≈521 mm). The unit includes a locking front door, removable vented panels, and numbered rack spaces to assist deployment and maintenance.
The low-profile cabinet is engineered for wall-mount installation but can be converted to a floor-standing orientation with an optional caster kit (SRCASTER) when flexibility of placement is needed. The design fits network and edge closets, small IDFs, and distributed IT locations where secure enclosure and cable routing are required without consuming valuable floor space.
Integration with standard infrastructure is inherent: the SRW12UDP conforms to EIA-310-E rack standards, uses adjustable vertical mounting rails, and includes wall-mount hardware. Removable panels and cable entry/exit ports at top and bottom provide structured pathways for power and data cabling.
In practical deployments, this cabinet is suited to environments where equipment depth is moderate and visibility is limited, such as small branch offices or retail wiring closets. It should not be used where larger depth gear (above ~20.5 in) or high-density cable bundles require deeper enclosures; in those cases a deeper wall unit or full 4-post rack is appropriate. The reversible door design allows adaptation to mounting side requirements.
Key Features
• 12U EIA-310 wall-mount rack enclosure
• Supports equipment up to 20.5 in (≈521 mm) deep
• 200 lb (90.7 kg) static load capacity
• Lockable front door & vented panels
• Adjustable vertical rails with cable entry/exit ports
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SRW12UDP |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 12U |
| Rack Width | 19 in (EIA-310) |
| Max Equipment Depth | 20.5 in (≈521 mm) |
| Maximum Load Capacity | 200 lb (90.7 kg) |
| Material | Steel with black finish |
| Ventilation | Vented sides, front, top, bottom |
| Door | Locking front panel |
| Mount Type | Wall-mount (optional caster conversion) |
| Vertical Rails | 4, adjustable with numbered U marks |
| Cable Access | Top & bottom entry/exit ports |
| Dimensions (H×W×D) | 25.08×23.62×21.75 in |
| Weight | ~58 lb (26.3 kg) |
| Compliance | EIA-310-E, RoHS |
