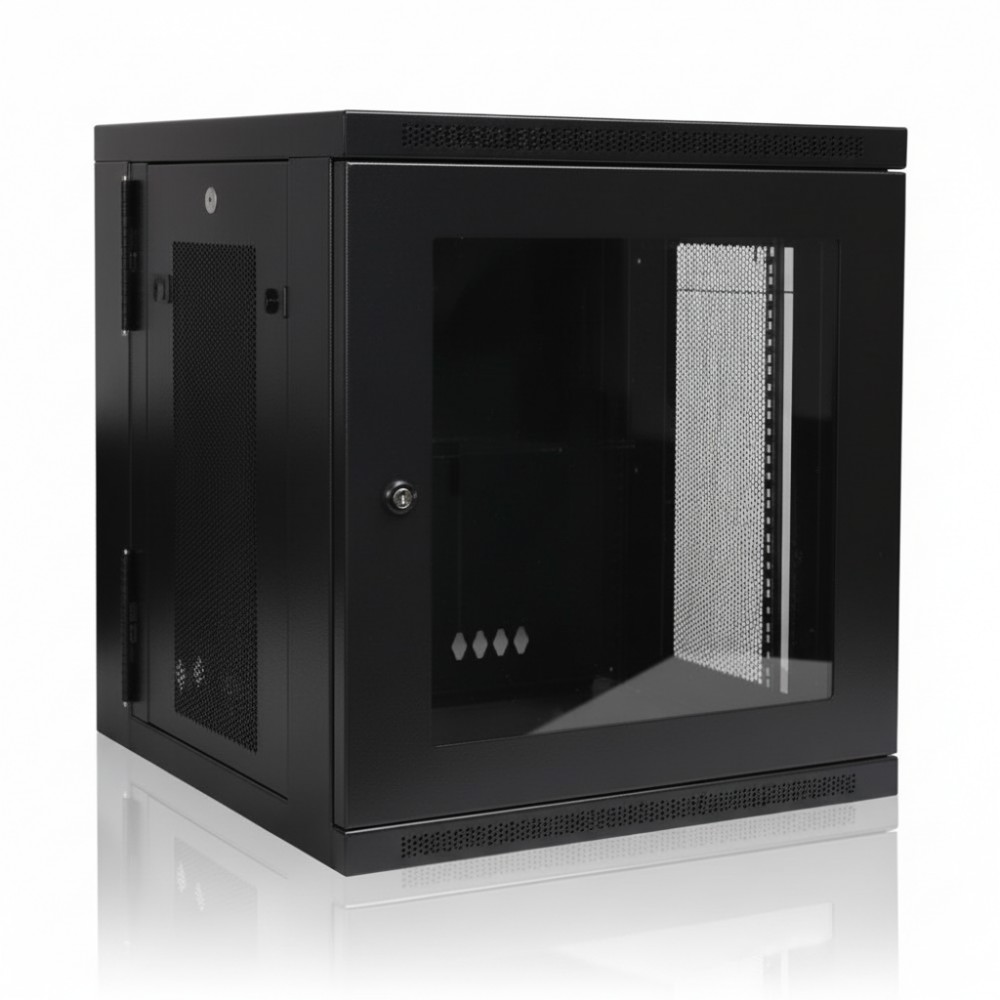

Eaton SRW12USG - 12U Wall-Mount Rack Enclosure
Overview
The Eaton SRW12USG is a compact wall-mount rack enclosure engineered to secure and organize standard 19-inch rack-mount equipment in space-limited environments. It is deployed by network and infrastructure engineers in wiring closets, small offices, branch sites, classrooms, and retail locations where floor space is constrained but structured equipment mounting is required. The enclosure provides mechanical protection and organized mounting for switches, patch panels, small UPS units, and other rack-mount gear.
Constructed from heavy-duty steel with a black powder-coated finish, the SRW12USG supports a static load appropriate for network and IT equipment typically installed in small racks. The enclosure ships fully assembled, simplifying wall installation using included mounting hardware. Perforated panels on the front, top, and bottom promote airflow around installed equipment, which assists in passive thermal management.
The front door is lockable to restrict unauthorized access, and it is reversible to suit different installation orientations. Vertical rack rails are compatible with EIA-310-E 19-inch mounting standards and support equipment with depths typical of networking and small UPS systems. Integrated top and bottom cable access ports facilitate structured cabling without compromising enclosure integrity.
In deployment, this cabinet provides secure mounting for network switches, small routers, patch panels, and entry-level UPS systems in branch or edge locations where full racks are impractical. Its wall-mount design keeps floor areas clear while maintaining serviceability.
This enclosure is not suitable for high-density server installations or deep, heavy equipment exceeding its load rating. It also lacks environmental sealing for dust- or moisture-sensitive environments, making it inappropriate for outdoor or industrial applications requiring IP-rated enclosures.
Key Features
• 12U wall-mount rack enclosure for 19″ equipment
• Lockable reversible front door for secure access
• Vented panels for passive airflow cooling
• Top and bottom cable routing ports
• Heavy-duty steel construction with black finish
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRW12USG |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 12U |
| Mounting Type | Wall-mount |
| Maximum Load Capacity | ~200 lb (≈ 90.7 kg) |
| Rack Width | 19″ EIA standard |
| Rack Depth | ~20 in (≈ 508 mm) |
| External Height | ~25.1 in (≈ 637 mm) |
| External Width | ~23.6 in (≈ 600 mm) |
| External Depth | ~21.6 in (≈ 548 mm) |
| Material | Heavy-duty steel |
| Color | Black |
| Vertical Rails | Adjustable rack rails |
| Cable Access | Top/bottom ports |
| Ventilation | Perforated panels front/top/bottom |
| Security | Lockable front door |
| Weight | ~55 lb (≈ 25 kg) |
| Standards | EIA-310-E |
| Warranty | 5-year limited |
