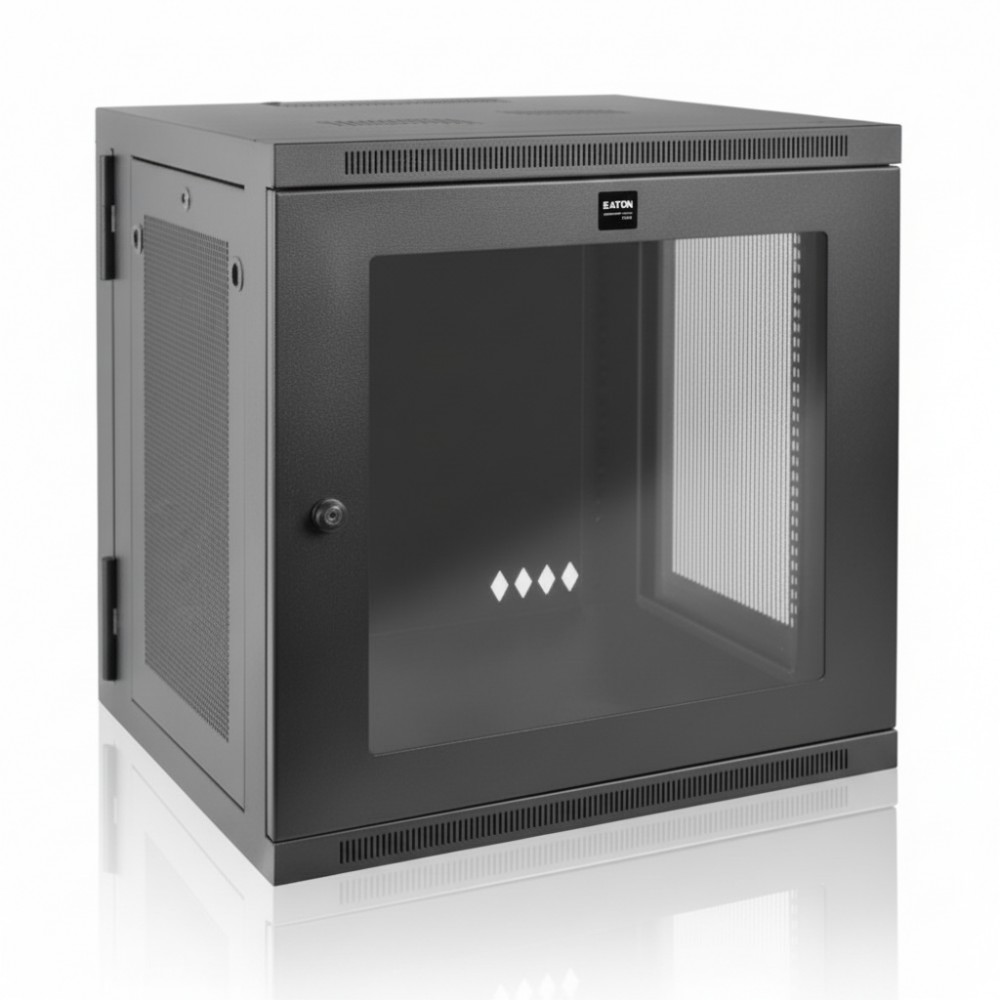

Eaton SRW12USDPG - 12U UPS-Depth Wall-Mount Rack Enclosure
Overview
The Eaton SRW12USDPG is a 12U wall-mount rack enclosure engineered to secure and accommodate standard 19-inch rack equipment in locations with limited floor space. It is deployed by IT and network engineers in wiring closets, branch offices, retail install points, and telecom spaces where compact, organised equipment mounting is required. The cabinet combines physical security with accessible serviceability via a hinged design.
Constructed from heavy-duty steel with a durable black powder-coated finish, the enclosure supports up to 200 lb (≈ 90.7 kg) of equipment load. The front door features a shatter-resistant clear acrylic window, allowing visual inspection of installed gear without unlocking the enclosure. Vented panels on the top, bottom, and side promote passive airflow around installed devices.
The design includes adjustable vertical mounting rails with numbered rack U markings, accommodating equipment up to roughly 24.5 in (≈ 622 mm) deep × suitable for switch, UPS, and battery pack combinations found in small-to-mid-size rack installations. The swing-away hinge eases access to rear cabling during installation and maintenance.
Security features include lockable front door and side panels. Cable entry is supported through top and bottom ports. Reversible door orientation allows field adaptation to space constraints. The unit ships fully assembled with rack hardware, reducing installation time.
In practice, this enclosure houses UPS units, network switches, patch panels, and associated battery systems in spaces where floor racks are impractical. Its depth and load capacity make it suitable for installations requiring UPSs deeper than switch-depth models.
It is not intended for heavy server or high-density compute installations exceeding the static load rating. It also lacks environmental sealing required for dust- or moisture-sensitive environments.
Key Features
• 12U vertical rack capacity for 19″ equipment
• Clear acrylic window front door for visual monitoring
• Hinged wall mount swings away for rear access
• Adjustable mounting rails up to ~24.5″ depth
• Lockable panels and vented airflow design
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SRW12USDPG |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Height | 12U |
| Mounting Type | Wall-mount hinged cabinet |
| Max Load Capacity | 200 lb (≈ 90.7 kg) |
| Rack Width | 19″ EIA standard |
| Max Supported Depth | ~24.5 in (≈ 622 mm) |
| External Height | ~25.1 in (≈ 637 mm) |
| External Width | ~23.6 in (≈ 600 mm) |
| External Depth | ~25.5 in (≈ 648 mm) |
| Material | Heavy-duty steel |
| Door Window | Clear shatter-resistant acrylic |
| Ventilation | Vented top/bottom/side panels |
| Cable Access | Top and bottom ports |
| Vertical Rails | Adjustable with numbered U marks |
| Color | Black |
| Included Hardware | M6 screws, cage nuts, washers, keys |
| Warranty | 5-year limited |
| Standards | EIA-310-D, IEC 60297-3, RoHS |
