Detailed Specifications

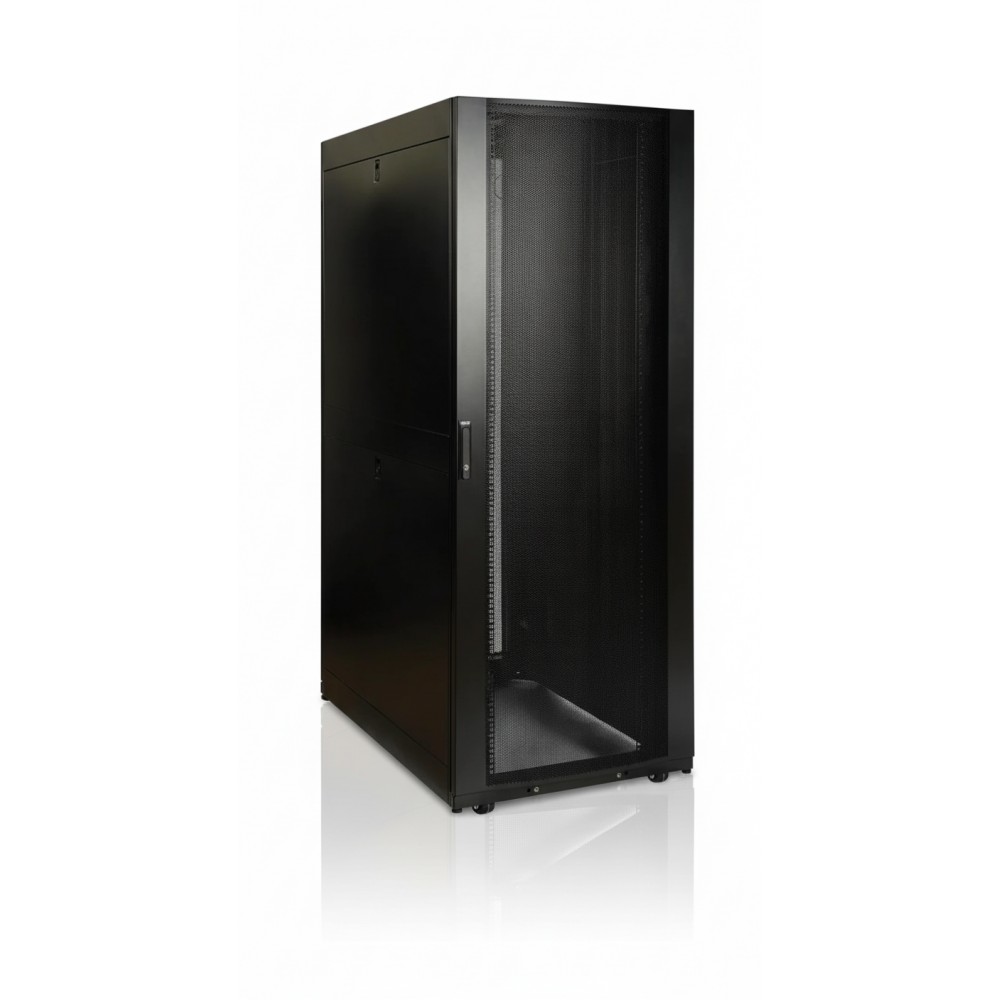

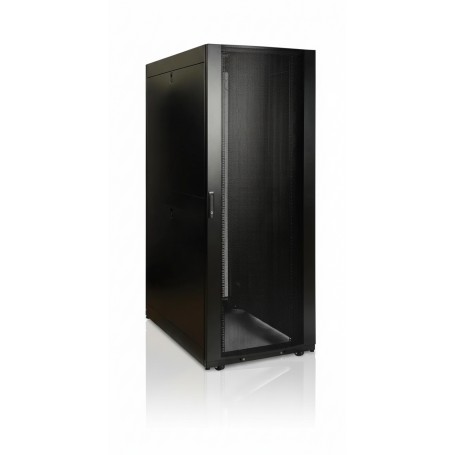

Eaton SR45UBDPWD - 45U Deep Server Rack Enclosure
Overview :
The Eaton SR45UBDPWD is a 45U deep server rack enclosure designed to house high-density IT and networking equipment. It supports standard 19-inch rack-mount devices and offers enhanced airflow management with perforated front and rear doors. This cabinet is well-suited for data centers, enterprise server rooms, and edge computing environments. It includes side panels and locking mechanisms for secure and organized installations.
Key Features :
• 45U rack height for enterprise deployments
• Locking perforated front and rear doors
• Heavy-duty castors for easy movement
• Tool-less vertical mounting rails included
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SR45UBDPWD |
| Product Type | 45U Server Rack Enclosure |
| Rack Height | 45U |
| Rack Width | 19 inches (standard EIA-310-D compliant) |
| Rack Depth | 1070 mm (42 inches) |
| Side Panels | Locking, removable |
| Front Door | Perforated steel, reversible |
| Rear Door | Split, perforated for airflow |
| Mounting Rails | Adjustable vertical mounting rails |
| Load Capacity | 1360 kg (3000 lbs) static |
| Frame Type | Steel, welded construction |
| Casters and Levelers | Pre-installed for mobility and stability |
| Cable Access | Top and bottom cable entry points |
| Ventilation | 65% open area perforation for airflow |
