Detailed Specifications

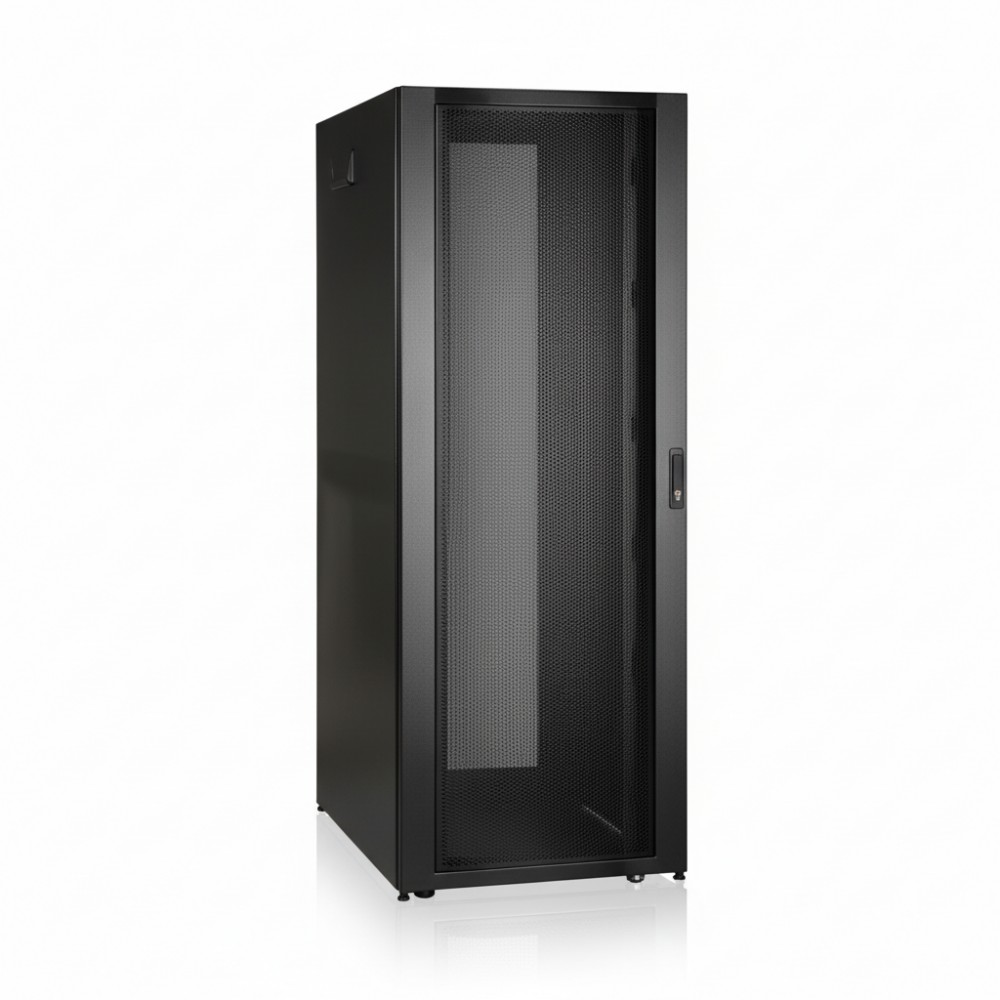

Eaton SR48UBWD8 - Rack Cabinet / Extra-Wide 48U
Overview :
This rack enclosure is built by Eaton for IT engineers to house 19-inch rack equipment and related infrastructure, solving the need for high-density installations with robust cable and PDU management. It supports a full 48U of equipment and includes extra width to accommodate side-mounting of PDUs and cable channels for improved airflow. The enclosure is suitable for data-centres, network closets, and campus wiring-rooms where a standard-depth but extra-wide form factor is required. It integrates with standard 0U accessory rails and supports security and cable management operations in a rack environment.
Key Features :
Extra width (800 mm / 31.5 in) for side-mounting and cable routing
Supports up to 1588 kg (3500 lb) stationary load capacity
Ships fully assembled with casters and levelers for fast deployment
Locking front, rear and side panels to support secure deployments
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SR48UBWD8 |
| Product Type | Standard-Depth Extra-Wide Rack Enclosure |
| Rack Height | 48U |
| Cabinet Width | 800 mm (31.5 in) |
| Cabinet Depth | 1092 mm (43.0 in) approx. |
| Maximum Device Depth | 940 mm (37 in) |
| Stationary Load Capacity | 1588 kg (3500 lb) |
| Rolling Load Capacity | 1021 kg (2250 lb) |
| Unit Weight | 178.6 kg (393.7 lb) |
| Material | Cold-rolled steel with black powder-coated finish |
| Mounting Rails | 4 vertical mounting rails |
| Compliance / Certifications | UL 62368-1, CAN/CSA 62368-1 (Canada), CE, RoHS, UKCA |
| Warranty | 5-year limited |
