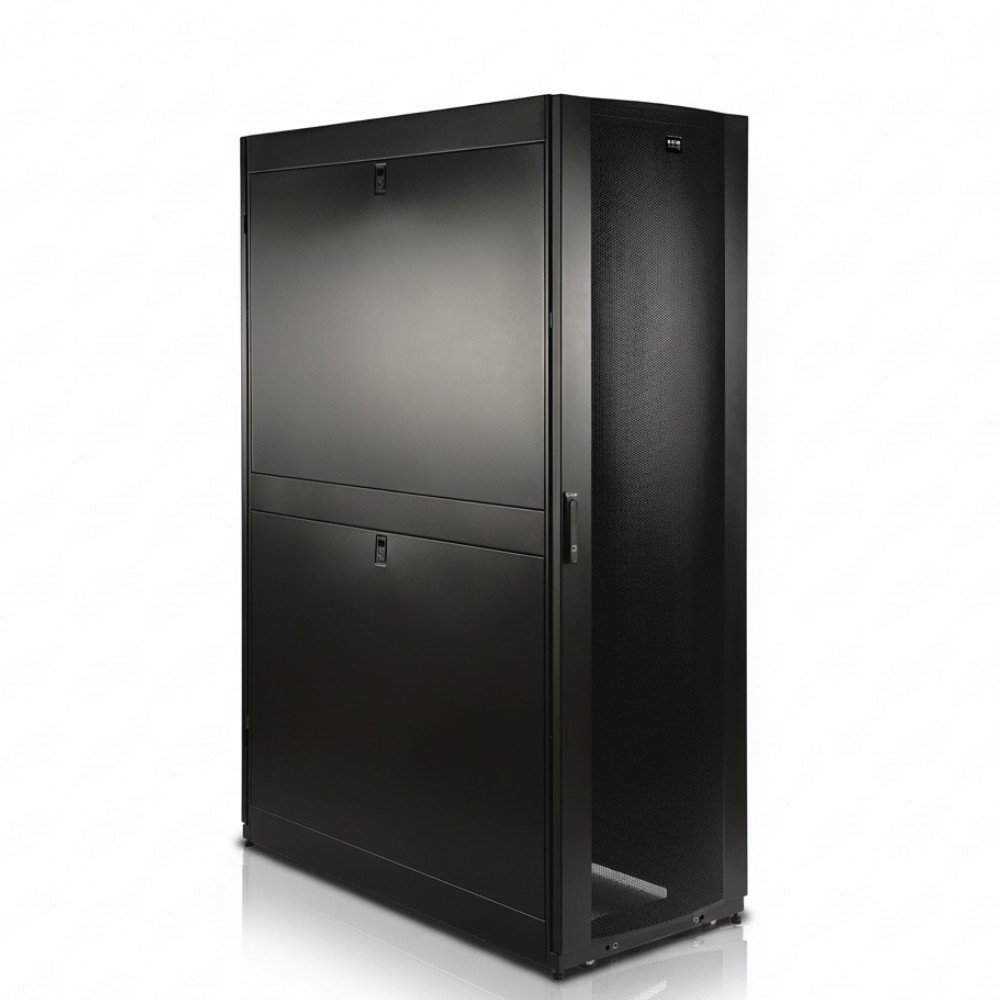

Eaton SR42UBDP48 42 U Extra Deep Server Rack Enclosure
Overvie
The Eaton SR42UBDP48 is a 42-unit high (42U) full enclosure cabinet designed for IT installations that require extra depth and robust infrastructure support×such as dense server racks, storage arrays with rear-mounted power supplies, or large cable management systems. With a 48-inch (1,219 mm) deep internal dimension, the cabinet gives sufficient space not just for standard rack-mount equipment but also for rear servicing, hot-swap modules, power distribution units (PDUs) and heavy cable bundles. The rack ships fully assembled with pre-installed heavy-duty casters and leveling feet, enabling roll-in deployment through standard commercial doorways and quick installation in data-centre or wiring-closet scenarios. It includes locking, reversible front and split rear doors, side panels keyed alike with the doors, and open-bottom cable access for power and fibre distribution. Rated for a stationary load capacity of up to 3,500 lb (1,588 kg) and a rolling load capacity of 2,250 lb (1,020 kg), the cabinet is engineered for high-density deployments without compromise. If you're planning for a fully-loaded rack of servers, storage shelves or networking gear, and you expect deep equipment or large cabling behind the rails, the SR42UBDP48 provides the physical envelope and structural strength to accommodate growth, serviceability and secure operations.
Key Features
48″ (1,219 mm) internal depth accommodates deep-chassis servers, storage modules and rear-mounted power/cable systems
Ships fully assembled with pre-installed casters and leveling feet×reduces onsite installation time and disruption
Heavy-duty construction rated for up to 3,500 lb stationary load and 2,250 lb rolling load×built for dense racks
Locking, reversible front and split rear doors plus removable keyed side panels provide secure access and service convenience
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SR42UBDP48 |
| Product Type | 42-U Extra-Deep Rack Enclosure Cabinet |
| Rack Height | 42 U |
| Rack Internal Depth | Approx 48″ (1,219 mm) |
| Rack Width | Approx 600 mm (~24″) internal standard width |
| Stationary Load Capacity | 3,500 lb (1,588 kg) |
| Rolling Load Capacity | 2,250 lb (1,020 kg) |
| Unit Dimensions (H × W × D) | ~78.5″ × 23.63″ × 50.91″ (~1,994 mm × 600 mm × 1,292 mm) |
