Detailed Specifications

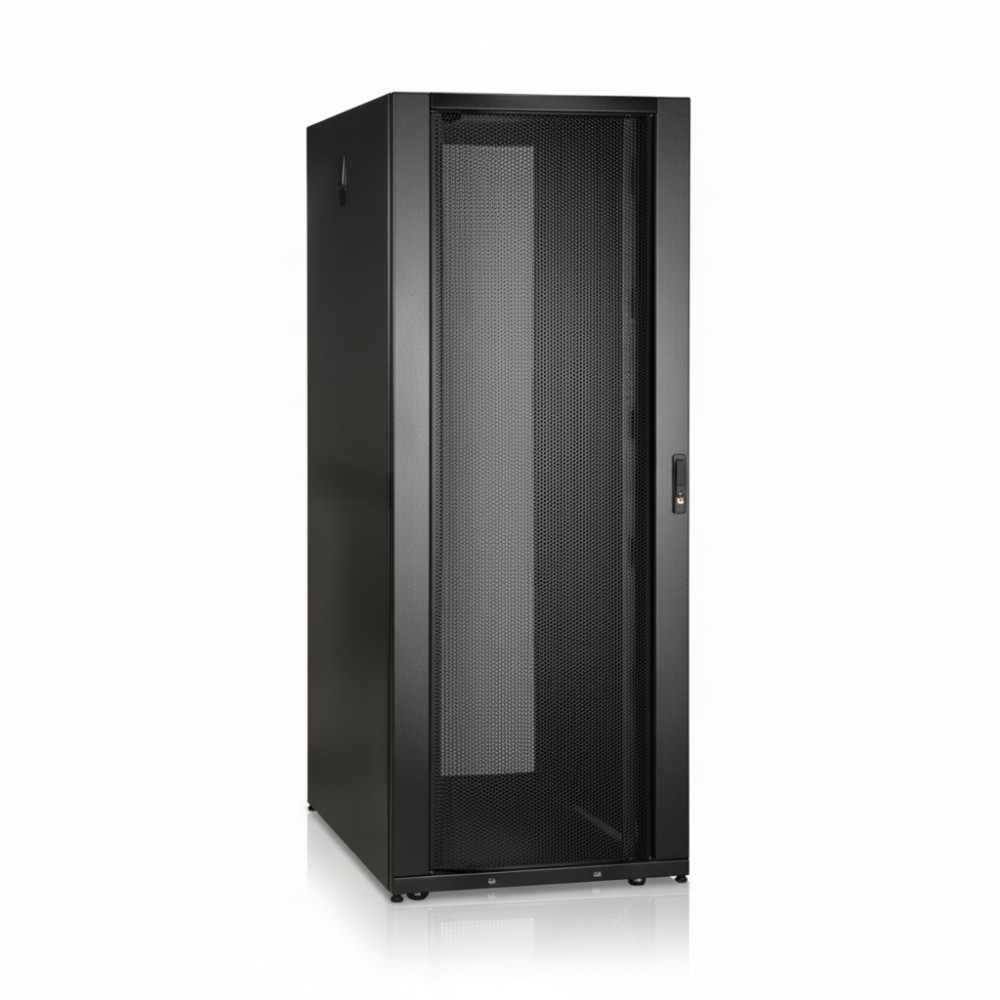

Eaton SR45UBWDVRT - 45U Server Rack Enclosure with Rear Cable Access
Overview :
The Eaton SR45UBWDVRT is a 45U server rack enclosure designed for data center and enterprise environments requiring efficient airflow and secure equipment housing. It features a split rear-door design for easier cable access and improved maintenance workflow. With a 19-inch rack width and adjustable mounting rails, it supports standard rack-mount IT equipment including servers, switches, and UPS systems. Ideal for network closets, colocation facilities, and edge computing deployments.
Key Features :
45U rack height with 19-inch mounting width
Split rear doors for enhanced cable access
Adjustable mounting rails for equipment depth
Preinstalled casters and leveling feet
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | SR45UBWDVRT |
| Product Type | Server Rack Enclosure |
| Rack Height | 45U |
| Rack Width | 19 inches |
| Rack Depth | 1070 mm (42 inches) |
| Front Door Type | Perforated steel, locking |
| Rear Door Type | Split, perforated, locking |
| Side Panels | Removable with key locks |
| Frame Type | Fully welded steel frame |
| Load Capacity | Up to 1360 kg (3000 lbs) |
| Casters and Levelers | Included, preinstalled |
| Color | Black |
| Ventilation | 65% open area for airflow |
| Compliance | EIA-310-E, UL 60950-1 |
