Detailed Specifications
Eaton SR42UBG Tripp Lite 42 U Standard Depth Server Rack Enclosure Cabinet Window
Overview

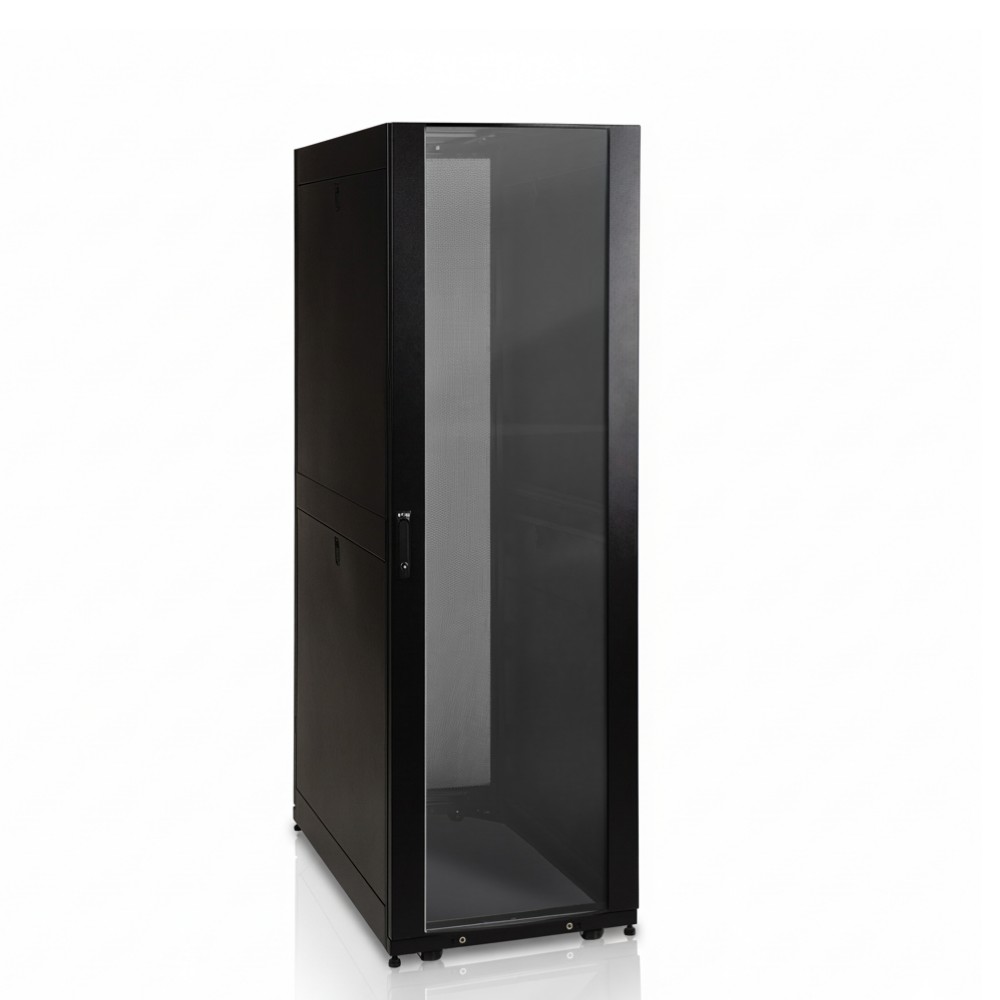

The Eaton SR42UBG is a fully enclosed 42-unit-height server rack enclosure that's purpose-built for network closets, computer rooms or enterprise data-centre environments where you want secure gear housing plus immediate front-panel visibility via a clear acrylic window. Its "standard-depth" footprint is sized to accommodate typical rack equipment depths while still rolling through commercial doors and fitting tight aisles. Constructed with heavy-duty steel and a black powder-coat finish, this enclosure offers durability and a clean professional look.One of its distinguishing features is the full-length front door with a shatter-resistant acrylic window × allowing you to visually check equipment status without unlocking the door or opening side-panels, which improves both security and serviceability. The cabinet includes locking reversible front and split rear doors, removable locking side-panels and an open-bottom design accommodating cable routing from beneath. Venting is built-in on the rear door and top panel to support airflow management in hot-aisle/cold-aisle designs.Internally, the vertical mounting rails are adjustable and support equipment up to approximately 37″ (≈940 mm) deep, giving flexibility to mount deeper servers, switches and shelves. The unit ships partially assembled with pre-installed casters and leveling feet so you can roll it into position and then level and bolt it down. With a substantial load-rating (up to 3,500 lb stationary) it's capable of supporting dense racks full of servers, storage and power gear without compromise.If you're deploying a row of 42-U racks and want one that combines security, visibility (via the window), depth flexibility and strong mechanical capacity, the SR42UBG is a solid choice in the Eaton SmartRack line.
Key Features
Full-length clear acrylic front door allows visual equipment inspection without unlocking the cabinet.
Supports up to 3,500 lb (1,588 kg) stationary load and approx. 2,250 lb (1,020 kg) rolling load × suitable for fully equipped racks.
Ships with pre-installed heavy-duty casters and leveling feet, plus locking front/rear doors and removable keyed side panels for secure service access.
Adjustable vertical mounting rails (in quarter-inch increments) support equipment up to ~37″ (≈940 mm) deep; vented rear/top panels and open-bottom cable access support cable management and airflow.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SR42UBG |
| Product Type | 42-U Standard-Depth Rack Enclosure Cabinet |
| Rack Height | 42 U |
| Rack Width | Approx 600 mm (≈24″) internal standard |
| Rack Depth | Approx 1090 mm (≈43″) full external depth |
| Stationary Load Capacity | 3,500 lb (1,588 kg) |
| Rolling Load Capacity | 2,250 lb (1,020 kg) |
| Unit Dimensions (H×W×D) | ~78.5″ × 23.63″ × 43.00″ (≈1994 mm × 600 mm × 1090 mm) |
| Warranty | 5-year limited warranty |
