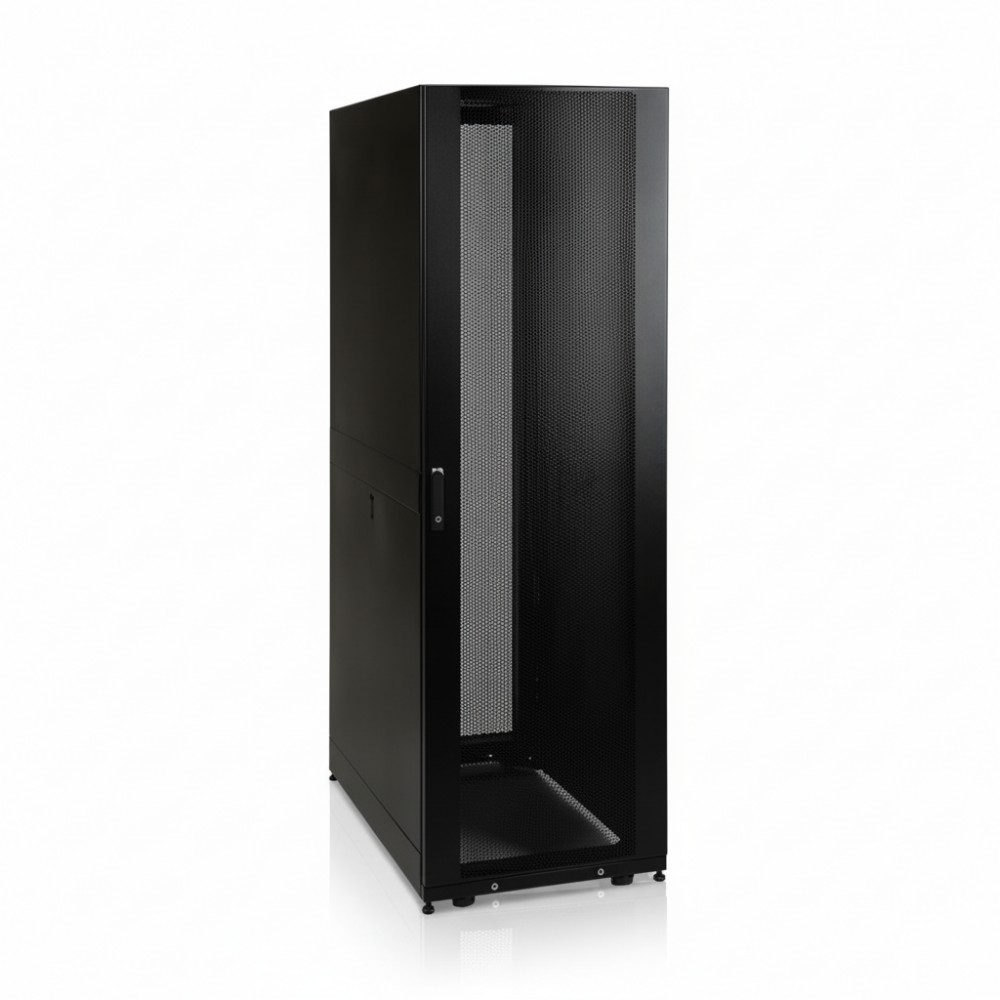

Tripp Lite SR48UB - 48U Standard Rack Enclosure Cabinet
Overview
The Tripp Lite SR48UB is a 48U freestanding rack enclosure designed for housing servers, networking equipment, UPS systems, and PDUs in structured IT environments. It is deployed by data center engineers, infrastructure teams, and network architects to consolidate rack-mounted equipment into a secure, standardized enclosure while supporting airflow, cable management, and high load capacity.
This cabinet provides 48U of 19-inch EIA-standard mounting space with four adjustable vertical mounting rails using square-hole mounting for standard cage nuts. The enclosure supports up to ~3000-3500 lb (1360-1588 kg) static load and ~2250 lb (1020 kg) rolling load, allowing deployment of dense server, storage, and power equipment without structural limitations.
The rack is built with a standard 24″ width and ~43″ depth, supporting typical enterprise server chassis while maintaining compatibility with data center layouts. It includes locking, removable, and reversible front and rear doors, along with locking side panels keyed alike, enabling secure access control and simplified servicing.
Cooling and airflow are addressed through high-perforation doors (65%+ open space), enabling front-to-rear airflow aligned with server cooling requirements and hot-aisle/cold-aisle containment strategies. Integrated baying tabs allow multiple enclosures to be joined in rows for scalable rack deployments.
A practical deployment includes enterprise server rows in a data center or network core environment where full-height racks are required for mixed equipment (servers, switches, PDUs). The enclosure ships fully assembled with preinstalled casters and leveling feet, enabling rapid installation.
This cabinet should not be used in seismic-rated environments or specialized containment systems without additional accessories, as it is designed for general-purpose rack deployments rather than engineered seismic or micro-environment enclosures.
Key Features
• 48U EIA-310-E rack enclosure for full-height deployments
• Supports up to ~3000-3500 lb static equipment load
• Locking removable doors and side panels (keyed alike)
• High-perforation doors for front-to-rear airflow
• Ships fully assembled with casters and leveling feet
Technical Specifications
| Specification | Detail |
|---|
| Brand | Tripp Lite by Eaton |
| Part Number | SR48UB |
| Product Type | Rack Enclosure Cabinet |
| Rack Height | 48U (19″ EIA-standard) |
| Rack Width | 24″ (600 mm external approx.) |
| Rack Depth | ~43″ (1092 mm) |
| External Height | ~89″ (2260 mm) |
| External Width | ~23.6″ (600 mm) |
| External Depth | ~43″ (1092 mm) |
| Static Load Capacity | 3000-3500 lb (1360-1588 kg) |
| Rolling Load Capacity | 2250 lb (1020 kg) |
| Mounting Rails | 4 adjustable vertical rails |
| Rail Type | Square-hole (cage nut compatible) |
| Doors | Lockable, removable, reversible (front/rear) |
| Side Panels | Lockable, removable (keyed alike) |
| Ventilation | Perforated doors (high airflow) |
| Casters | Pre-installed |
| Leveling Feet | Included |
| Weight | ~315 lb (142.9 kg) |
| Compliance | EIA-310-E, RoHS, UL 60950 |
