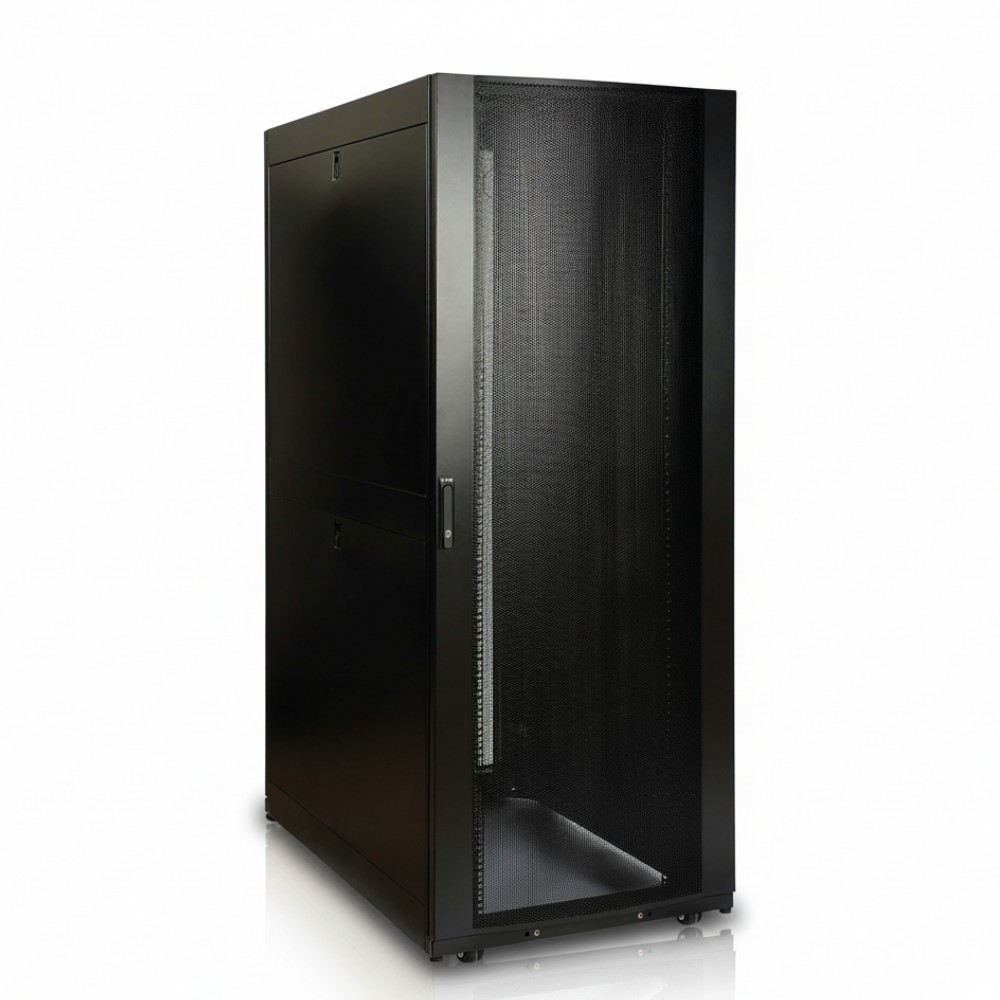

Tripp Lite SR42UBDPWD - 42U Deep & Wide Rack Enclosure
Overview
The Tripp Lite SR42UBDPWD is a 42-unit (42U) deep and wide server rack enclosure designed for infrastructure and data-center teams to house servers, networking equipment, PDUs, UPSes, and cable management accessories with robust load support. It is deployed where large, heavy IT loads and extended depth equipment are present in enterprise and colocation rack rooms.
This full-enclosure cabinet provides a deep and wide internal footprint (approx. 47.2″ / 1200 mm depth × ~29.5″ / 750 mm width), enabling high-density racks, cable channels, and rear-mounted PDUs without obstructing airflow or service access. The fully assembled cabinet includes front and rear locking, removable, reversible doors and locking side panels keyed alike for secure access control.
Structural support is engineered for heavy gear: up to ~3000 lb (1361 kg) static load and ~2250 lb (1020 kg) rolling capacity on pre-installed casters that allow positioning and leveling feet for secure installation on uneven floors. The reinforced cold-rolled steel frame and powder-coat finish withstand mechanical stress in rack-dense environments.
Ventilation is a core consideration with high perforation patterns on doors and open bottoms for cable access, enabling front-to-rear airflow appropriate for servers and blade systems. Vertical mounting rails adjust in 1/4″ increments with depth indexing for consistent equipment alignment.
Typical deployments include enterprise IT closets, edge racks with deep equipment (modular servers, blade chassis), and high-density telecom racks. This unit should not be used in acoustically isolated or seismic certified installations without appropriate rack accessories, as it is designed for general rack infrastructure rather than specialized environments.
Key Features
• 42U deep & wide rack cabinet for high-density gear
• ~1200 mm (47.2″) internal depth × ~750 mm (29.5″) width
• Lockable/removable front & rear doors + side panels
• Pre-installed casters + leveling feet; ships fully assembled
• 3000 lb static / 2250 lb rolling load capacity
Technical Specifications
| Specification | Detail |
|---|
| Brand | Tripp Lite by Eaton |
| Part Number | SR42UBDPWD |
| Product Type | Server Rack Enclosure Cabinet |
| Rack Height | 42U (EIA-310 standard) |
| Internal Depth | ~47.2″ (1200 mm) |
| Width | ~29.5″ (750 mm) |
| External Height | ~78.5″ (199 cm) |
| External Width | ~29.63″ (75 cm) |
| External Depth | ~48.5″ (123 cm) |
| Static Load Capacity | ~3000 lb (1361 kg) |
| Rolling Load Capacity | ~2250 lb (1020 kg) |
| Doors | Lockable, reversible/removable |
| Side Panels | Lockable, removable (keyed alike) |
| Mounting Rails | 4 vertical rails, 1/4″ increment depth indexing |
| Ventilation | Perforated doors, open bottom |
| Casters | Pre-installed (removable) |
| Leveling Feet | Included, removable |
| Compliance | EIA-310-E, UL 60950, RoHS |
| Warranty | Limited (varies by region) |
