Detailed Specifications

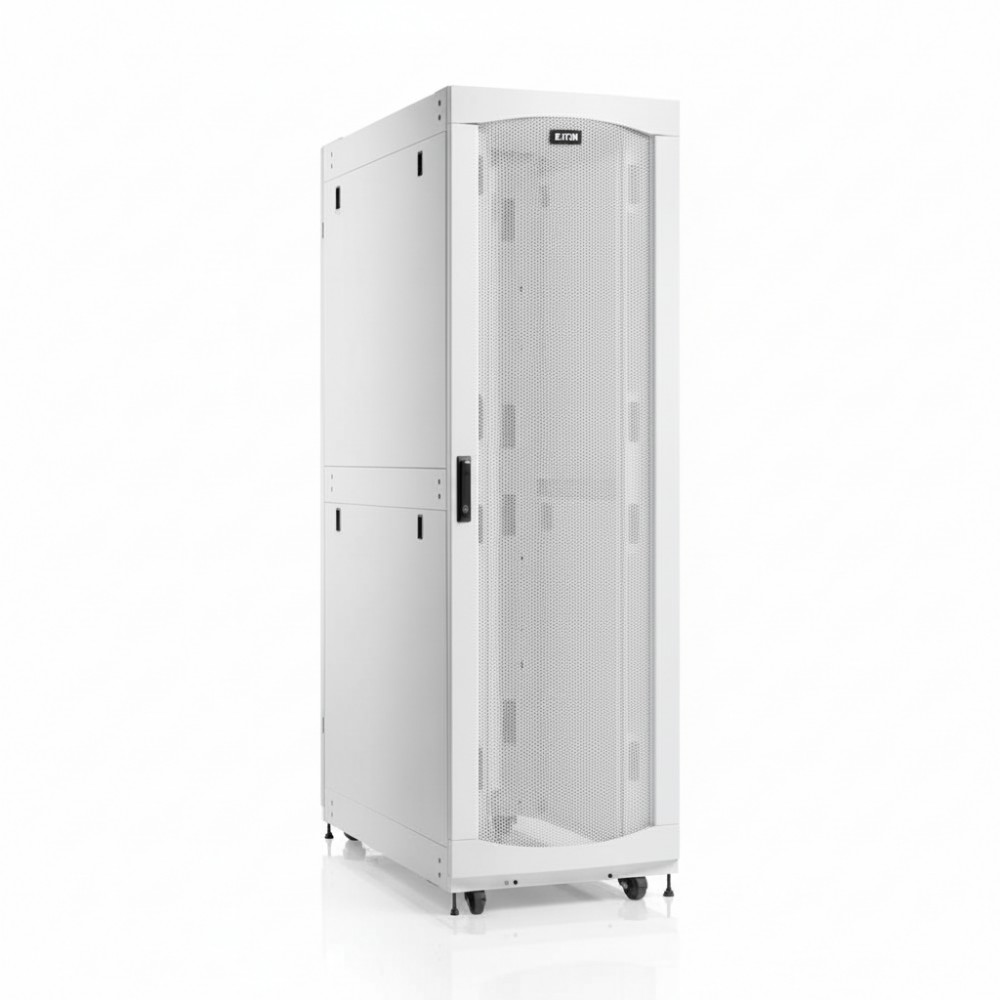

Eaton SRH422446W - Heavy Duty 42U Rack Enclosure
Overview :
The Eaton SRH422446W is a 42-rack-unit floor-standing enclosure designed for infrastructure engineers managing large servers and AI systems, providing a stable mounting platform for heavy equipment. It features a 46-inch (1168 mm) internal depth to accommodate oversized devices and deep rack assemblies. This enclosure is suitable for use in data centre, colocation, and enterprise campus/server room environments. It integrates with standard 19-inch rack-mount rails and supports locking doors, removable side panels and built-in casters/levelers for deployment flexibility.
Key Features :
Supports up to 5,000 lb (2,268 kg) static load capacity.
46 in (1,168 mm) maximum device depth for deep rack equipment.
White powder-coated steel finish to improve visibility in high-density environments.
Lockable reversible front door, split rear doors and removable side panels for security and service access.
Technical Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SRH422446W |
| Product Type | Heavy-Duty 42U Floor Rack |
| Rack Height | 42U |
| Maximum Device Depth | 46 in (1,168 mm) |
| Weight Capacity - Stationary | 5,000 lb (2,268 kg) |
| Weight Capacity - Rolling | 3,500 lb (1,588 kg) |
| Unit Dimensions (H × W × D) | 79.508 in × 23.622 in × 49.238 in (2,019.4 mm × 600 mm × 1,251.1 mm) |
| Unit Weight | 515 lb (233.6 kg) |
| Material | Steel (2.5 mm thick frame) |
| Colour | White |
| Number of Vertical Rails | 4 |
| Certifications | UL 2416, UL 62368-1; CE; RoHS; UKCA |
| Warranty | 5-year limited |
