Detailed Specifications

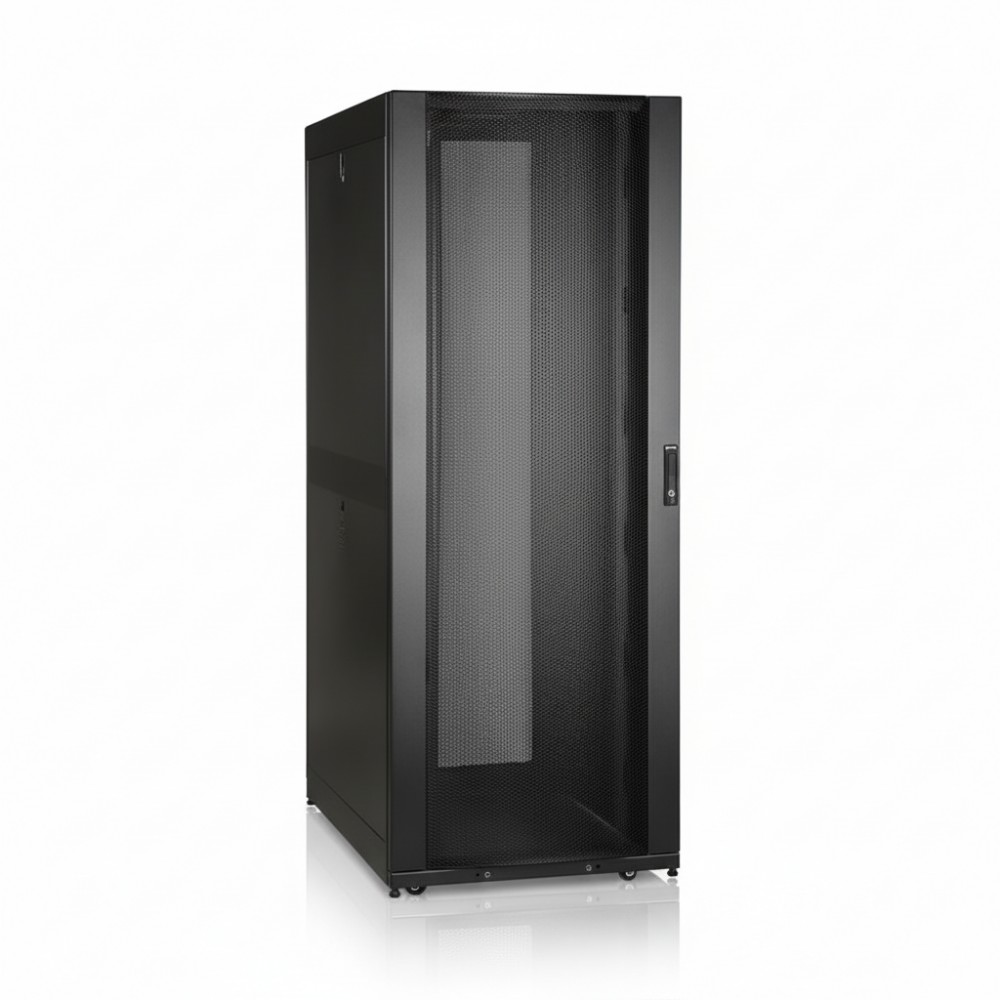

Eaton SR48UBDPWD8 - Rack Enclosure / 48U Extra-Wide
Overview :
The SR48UBDPWD8 from Eaton is a full-sized 48-rack-unit steel enclosure intended for IT infrastructures where deep, wide equipment mounting and heavy load capacity are required. It supports large servers, UPS systems or network racks, providing up to 3,500 lb (≈1,588 kg) stationary load rating. It is applied in data-centres, high-density server rooms, telecom closets or edge sites where depth (46 in / 1,168 mm) and width (800 mm) exceed standard racks. The enclosure integrates with Eaton's SmartRack accessory ecosystem (PDUs, cable management kits) for streamlined deployment and access.
Key Features :
48U mounting height with 800 mm rack width and 1,168 mm depth
Locking front door, split reversible rear doors and keyed side panels
Ships fully assembled with pre-installed casters and levelers
Stationary load rating 3,500 lb (1,588 kg) and rolling load rating 2,250 lb (1,021 kg)
Specification :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SR48UBDPWD8 |
| Product Type | 48U Deep Extra-Wide Rack Enclosure |
| Rack Units | 48U |
| Internal Depth | 1,168 mm (46 in) |
| Finished Width | 800 mm (31.5 in) |
| Unit Weight | 186.43 kg (411 lb) |
| Stationary Load Capacity | 1,588 kg (3,500 lb) |
| Rolling Load Capacity | 1,021 kg (2,250 lb) |
| Material | Cold-rolled steel, powder-coated black |
| Certifications & Compliance | UL 62368-1; CE; RoHS; UKCA |
