Detailed Specifications

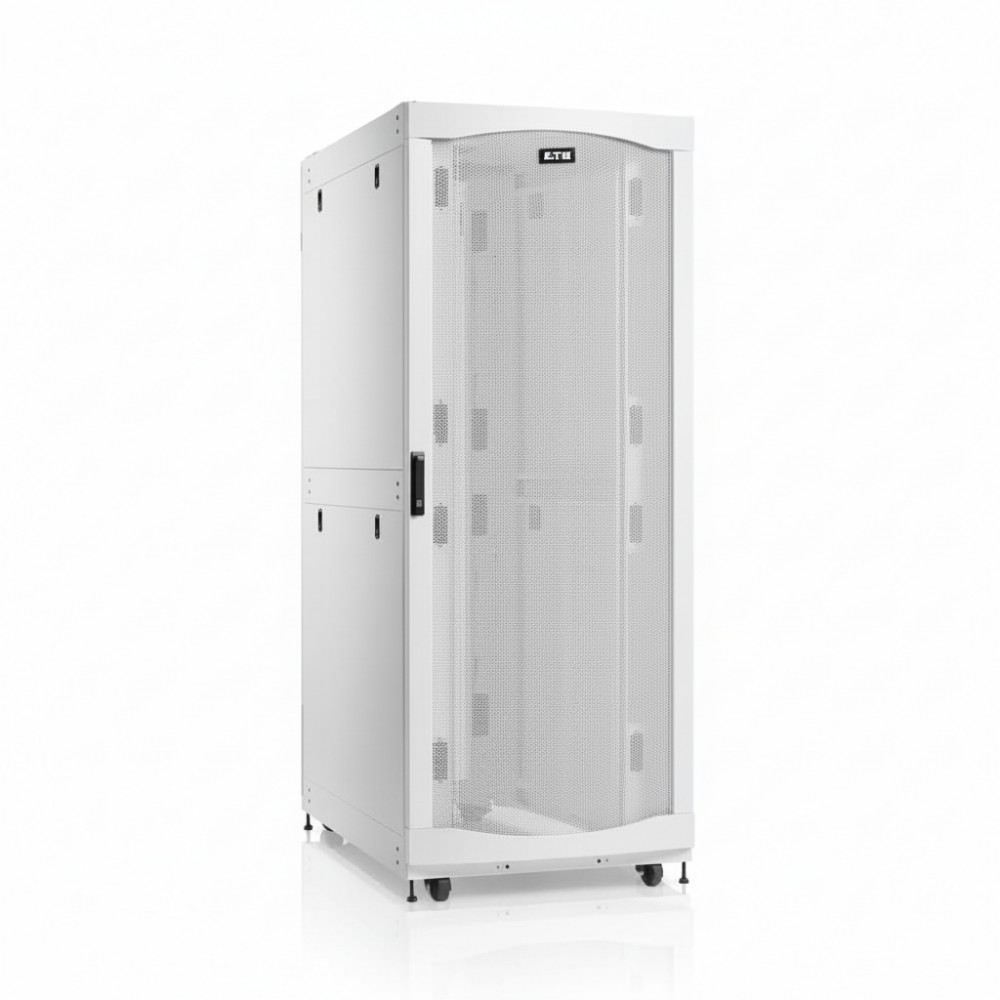

Eaton SRH453242W - Heavy-Duty SmartRack Enclosure
Overview :
The Eaton SRH453242W is a 45-rack-unit, extra-wide heavy-duty server rack enclosure designed for IT infrastructure engineers who deploy high-density servers and AI/edge computing clusters. It supports up to 5,000 lb (static) and 3,500 lb (rolling) loads in a steel 2.5 mm frame with reinforced welds and gussets to meet heavy equipment demands. The unit's 31.5″ (800 mm) width allows additional side channels for cabling and accessories, making it suitable for data center, edge-facility, or campus-server-room deployment. It integrates with Eaton's SmartRack system of accessories and supports locking side panels, front/rear doors, and security features for compliance-aware environments.
Key Features :
Reinforced 2.5 mm steel frame with gussets and welds
800 mm (31.5 inch) width for side-channel routing and accessories
Maximum stationary load capacity of 5,000 lb (2,268 kg)
White powder-coat finish inside and out for improved visibility
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SRH453242W |
| Product Type | 45 U Heavy-Duty Server Rack Enclosure |
| Rack Units (U) | 45 U |
| Material | Steel (2.5 mm frame) |
| Color | White powder-coated (inside & out) |
| Dimensions (H × W × D) | 84.91 in × 31.50 in × 44.09 in (≈ 2160 × 800 × 1120 mm) |
| Load Capacity - Static | 5,000 lb (2,268 kg) |
| Load Capacity - Rolling | 3,500 lb (1,588 kg) |
| Depth (factory preset) | 29.5 in (749 mm) |
| Max Device Depth | 41 in (1,041 mm) |
| Number of Vertical Rails | 4 |
| Compliance/Certifications | UL 2416, UL 62368-1, CE, RoHS, EIA-310-E, UKCA |
| Warranty | 5-year limited |
