Detailed Specifications

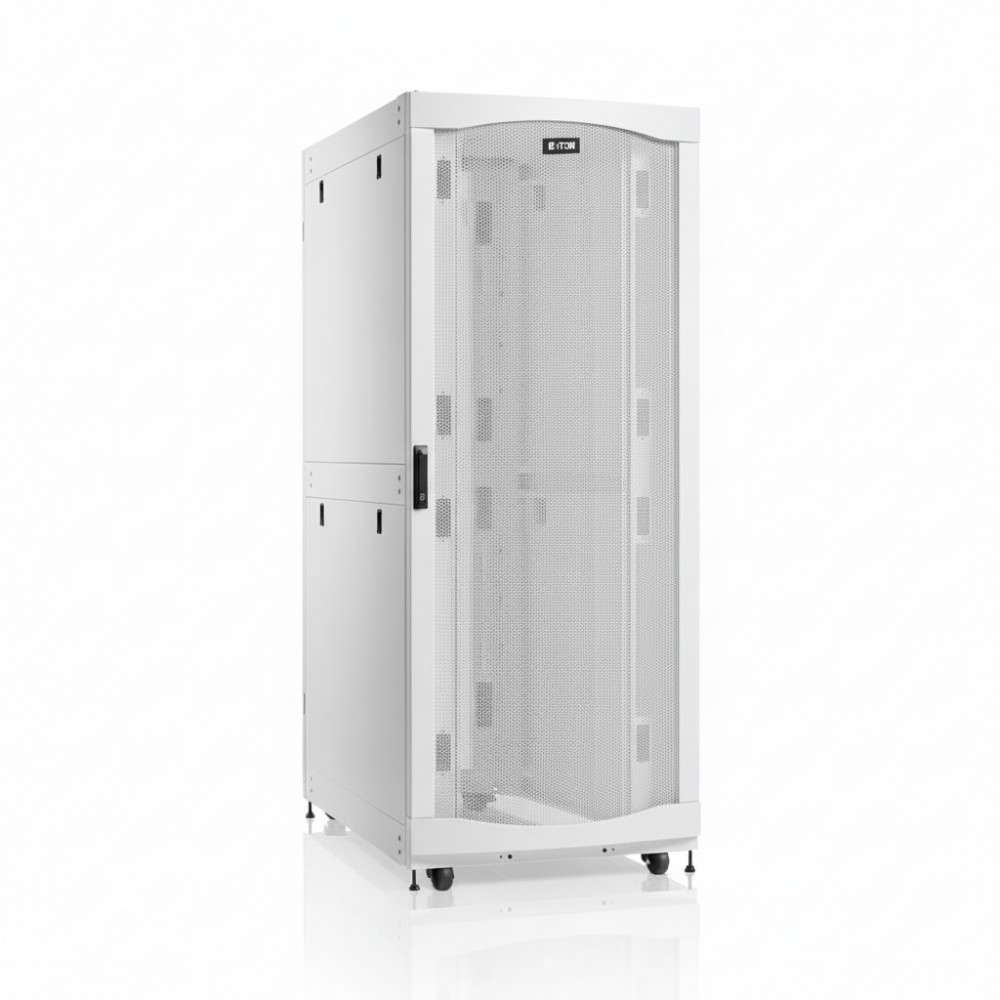

Eaton SRH483242W - Rack Enclosure Cabinet
Overview :
The Eaton SRH483242W is a 48U heavy-duty server rack enclosure for IT and data centre engineers who install high-density server, storage and AI-hardware systems. It supports a 48-unit height and offers an 800 mm width configuration to accommodate larger servers and extensive cabling. It is designed for deployment in data centres and edge locations where space, airflow and access matter. The cabinet integrates with existing 19-inch rack-mount rails and supports security provisions such as locking doors and removable side-panels.
Key Features :
800 mm (31.5") width for extra-space cabling and accessories.
Heavy-duty steel frame rated for 2,500 kg stationary load (approx.).
White powder-coated finish improving visibility in high-density installs.
Locking front door, split rear doors and removable side panels for secure access.
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SRH483242W |
| Product Type | Rack Enclosure Cabinet |
| Rack Height | 48U |
| Rack Width (external) | 800 mm (31.5 in) |
| Rack Depth (external) | ~1122 mm (44.17 in) |
| Maximum Stationary Load | 5000 lb (2268 kg) |
| Maximum Rolling Load | 3500 lb (1588 kg) |
| Material / Frame Thickness | Steel, 2.5 mm thickness frame |
| Finish | White powder-coated (inside & outside) |
| Door / Panel Configuration | Reversible front door, split rear doors, removable side panels |
| Mounting Rails | 4 vertical 19″ mounting rails |
| Certifications | UL 2416, UL 62368-1, CE, RoHS, UKCA, EIA/ECA-310-E |
| Warranty | 5-year limited warranty |
