Detailed Specifications

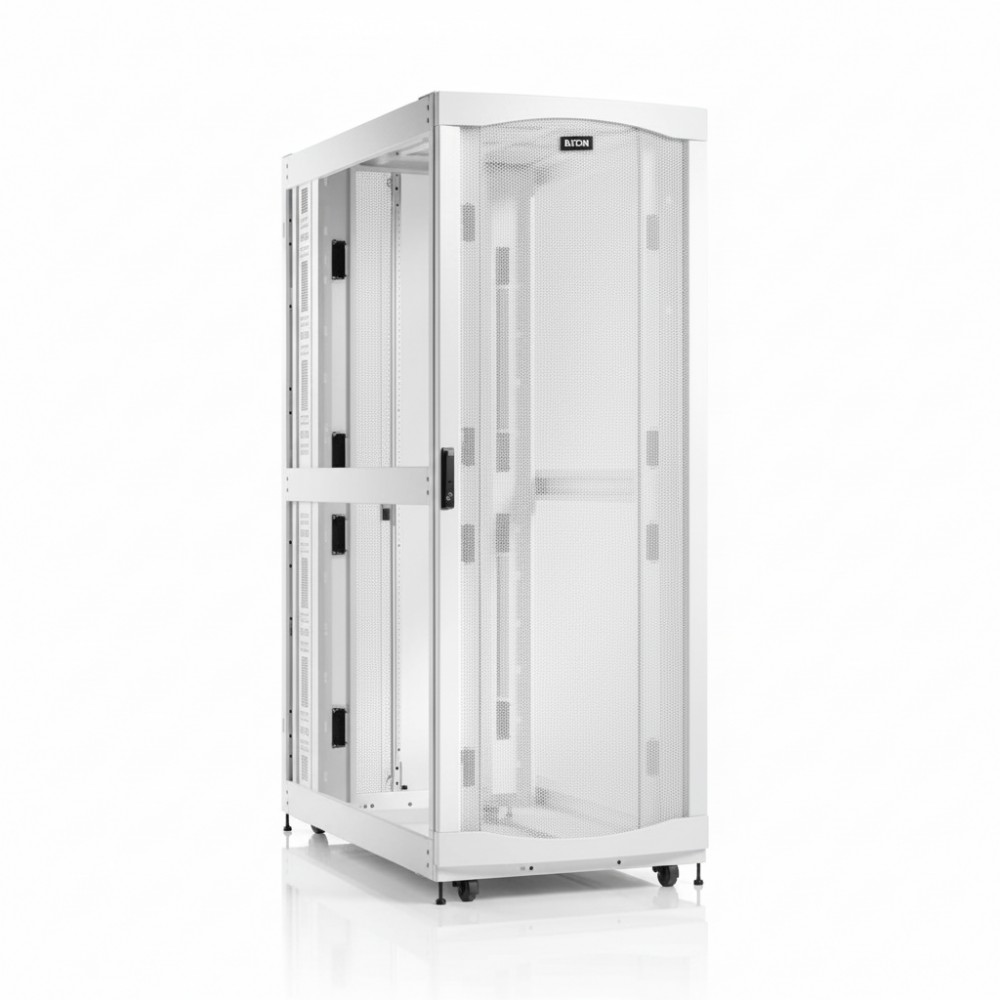

Eaton SRH453254W - Heavy-Duty Rack Enclosure
Overview :
The Eaton SRH453254W is a heavy-duty 45U server rack enclosure used by data centers and AI/high-density compute deployments. It solves the problem of accommodating oversized hardware and dense cabling in constrained floor space. Built with reinforced steel, it supports high loads and long devices. It fits in data centers, AI pods, edge sites or campus collocation areas. It works with Eaton's SmartRack accessories and management modules.
Key Features :
45U rack height with extra depth and width
Supports 5,000 lb static / 3,500 lb rolling loads
White powder-coated finish for interior visibility
Locking doors, removable side panels, and roof cable pass-through
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SRH453254W |
| Product Type | Heavy-Duty Rack Enclosure |
| Rack Height | 45U |
| External Dimensions (H × W × D) | 84.758 × 31.496 × 58.038 in (2131 × 800 × 1474 mm) |
| Max Device Depth | 54 in (1372 mm) |
| Min Device Depth | 4 in |
| Static Load Capacity | 5,000 lb (2,268 kg) |
| Rolling Load Capacity | 3,500 lb (1,588 kg) |
| Frame Material / Thickness | Steel, 2.5 mm |
| Vertical Mounting Rails | 4 rails |
| Finish | White powder-coat inside & out |
| Compliance / Certifications | UL 62368-1, UL 2416, EIA/ECA-310-E, RoHS, CE, UKCA |
| Warranty | 5-year limited |
