Detailed Specifications

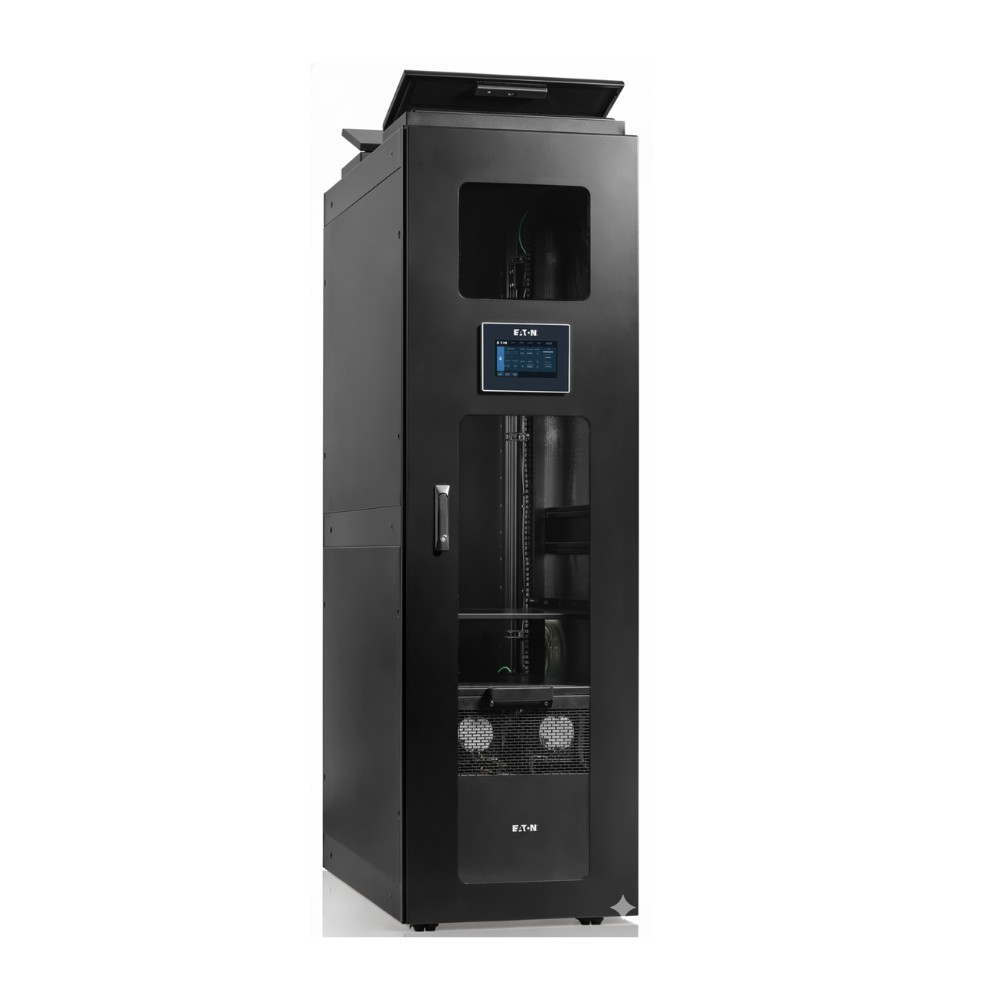

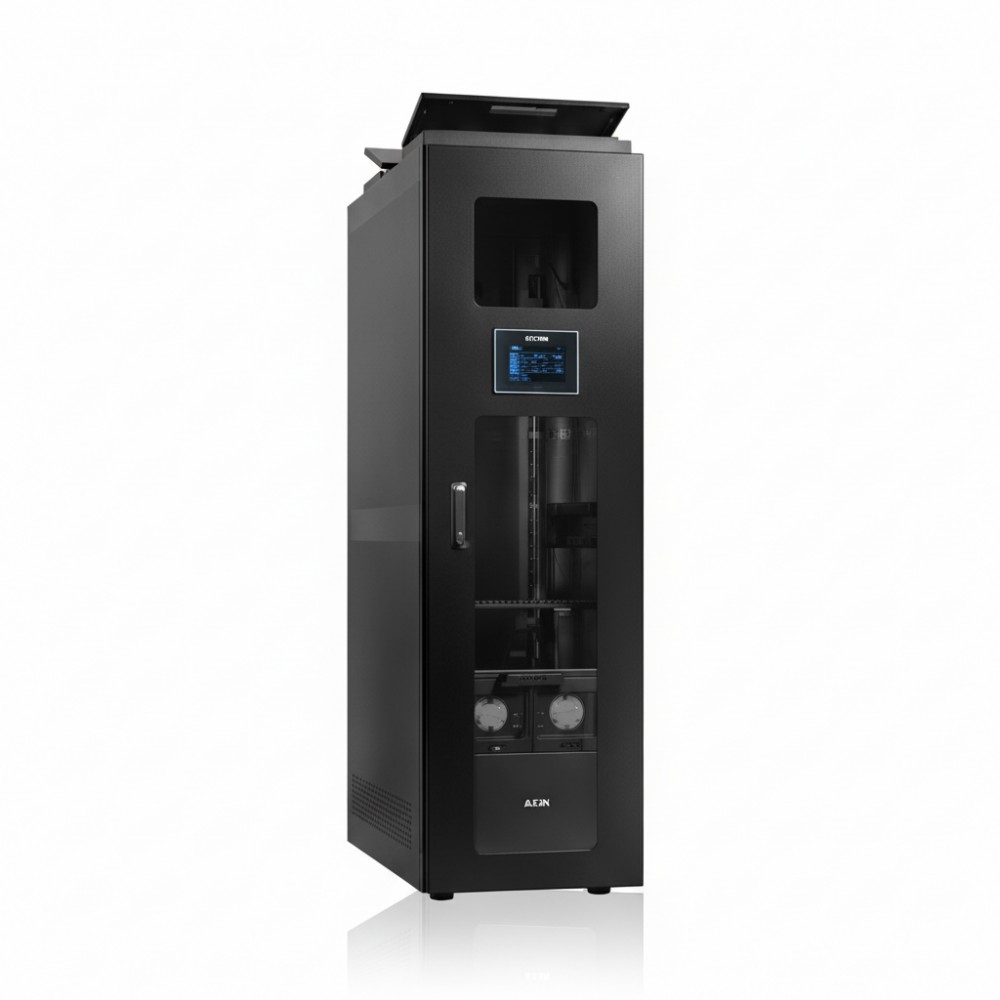

Eaton SRCOOL5KWRM42U - Self-Cooling Rack Enclosure
Overview :
The Eaton SRCOOL5KWRM42U is a 42U server rack with an integrated 5.5 kW cooling system, designed for deployments where separate room cooling is impractical. It delivers precision cooling (18,766 BTU/h) in a rack-mounted form factor with built-in exhaust ducting and drainage options. The unit suits edge, remote, or small data center installations where floor space is constrained. It supports remote monitoring and control via an LX Platform (SNMP) interface.
Key Features :
5.5 kW (18,766 BTU/h) cooling capacity
Integrated exhaust duct hose (13 ft)
Multiple condensate removal methods
LX Platform (SNMP) remote monitoring
Specifications :
| Specification | Value / Description |
|---|
| Brand | Eaton |
| Part Number | SRCOOL5KWRM42U |
| Product Type | Self-Cooling Rack Enclosure |
| Cooling Capacity | 5.5 kW (18,766 BTU/h) |
| Input Voltage | 200-240 V AC |
| Input Frequency | 60 Hz |
| Nominal Current | 18 A |
| Airflow | 470 CFM |
| Exhaust Duct Length | 13 ft (hot air duct included) |
| Condensate Removal Options | Evaporation, vertical drain, or gravity drain |
| Operating Temperature Range | 64 °F to 104 °F |
| Operating Elevation | Up to 1,000 m (derates above) |
| Dimensions (H × W × D) | 82.66 in × 23.62 in × 47.26 in |
| Weight | 552.26 lb |
| Certifications / Compliance | UL 60335, CAN/CSA-C22.2 60335, FCC Class A |
