Detailed Specifications

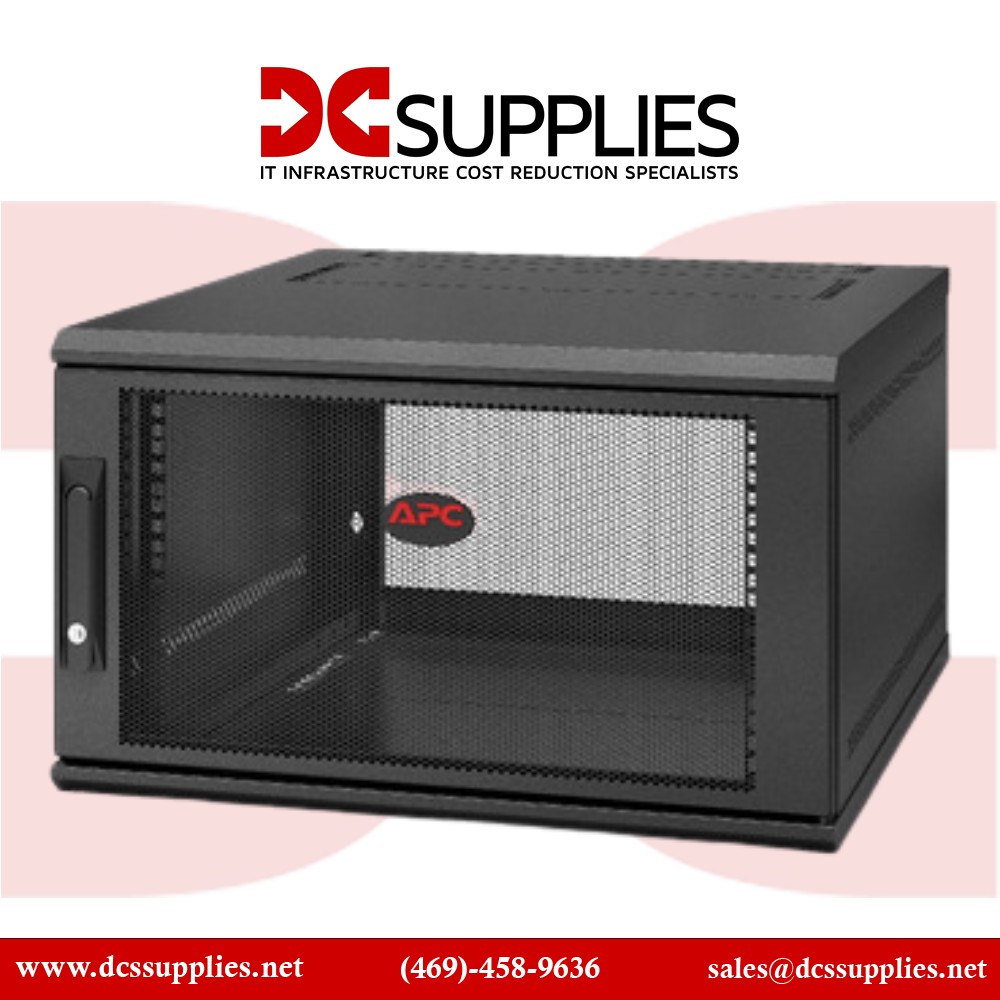

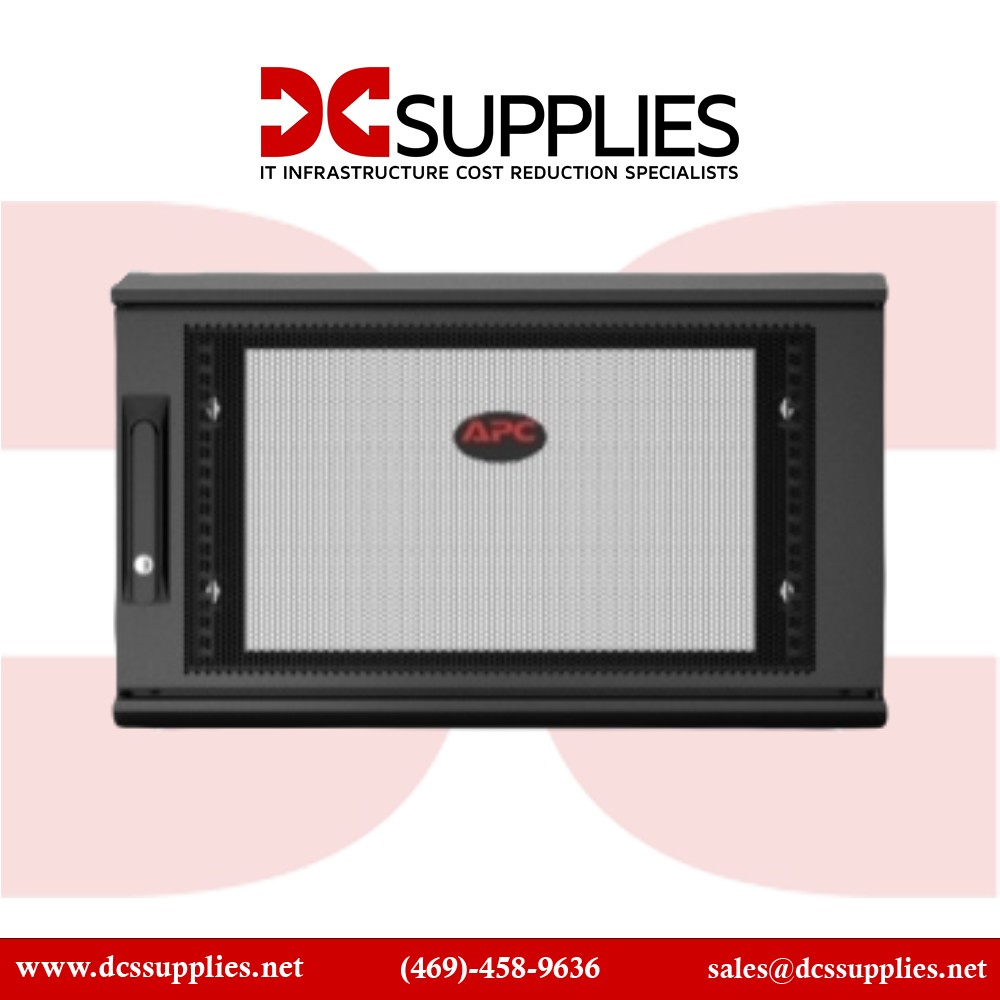

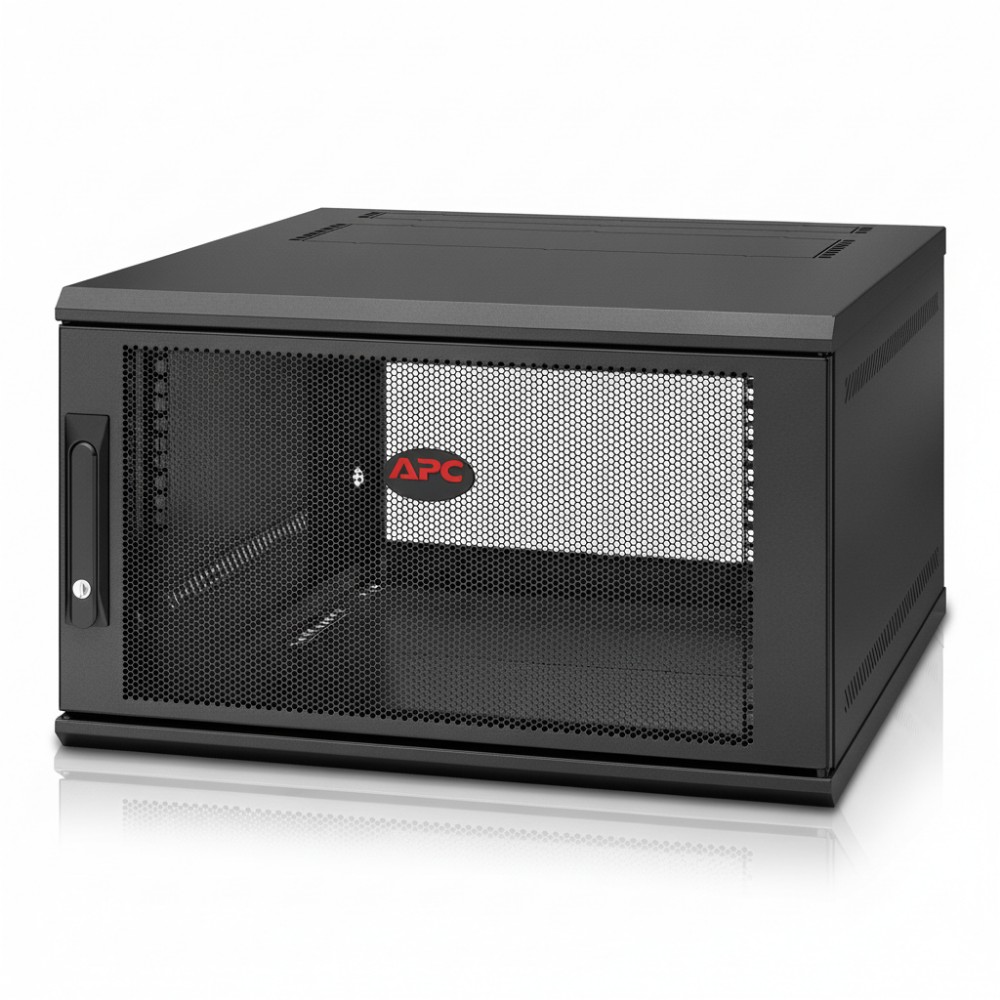

APC NetShelter WX AR106SH6 - 6U Wallmount Rack Enclosure Cabinet
Overview
The APC AR106SH6 is a 6U wallmount rack enclosure from the NetShelter WX series, specifically designed for small network closets, edge computing, and server rooms where floor space is limited. It supports 19-inch EIA-standard rack equipment such as switches, patch panels, routers, and small servers. The enclosure features a single hinged, perforated front door and a removable rear panel for easy installation and maintenance. Its compact 600mm depth provides enough space for cabling while maintaining a minimal footprint. Built with durable steel and a black powder-coat finish, the AR106SH6 ensures both strength and professional aesthetics.
Key Features
6U wallmount rack enclosure for 19-inch EIA-standard equipment
Single hinged perforated front door for efficient airflow
Removable rear panel and side panels for quick installation and maintenance
600mm depth accommodates cabling and small network/server devices
Weight capacity up to 90.91 kg (200 lbs) with steel construction for durability
Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number / Model | AR106SH6 |
| Product Type | Wallmount Rack Enclosure |
| Rack Units (Height) | 6U |
| Rack Width | 19 inches (482.6 mm) |
| Rack Depth | 600 mm (23.6 inches) |
| Overall Height | 355 mm (13.98 inches) |
| Overall Width | 600 mm (23.6 inches) |
| Overall Depth | 600 mm (23.6 inches) |
| Weight | 14.38 kg (31.7 lbs) |
| Weight Capacity | 90.91 kg (200 lbs) |
| Material | Steel |
| Color | Black |
| Front Door | Single hinged, perforated |
| Side Panels | Removable for access |
| Rear Panel | Removable for cabling |
| Mounting Type | Wall-mountable |
| Certifications | UL 2416, RoHS, REACH, TAA Compliant |
