Detailed Specifications

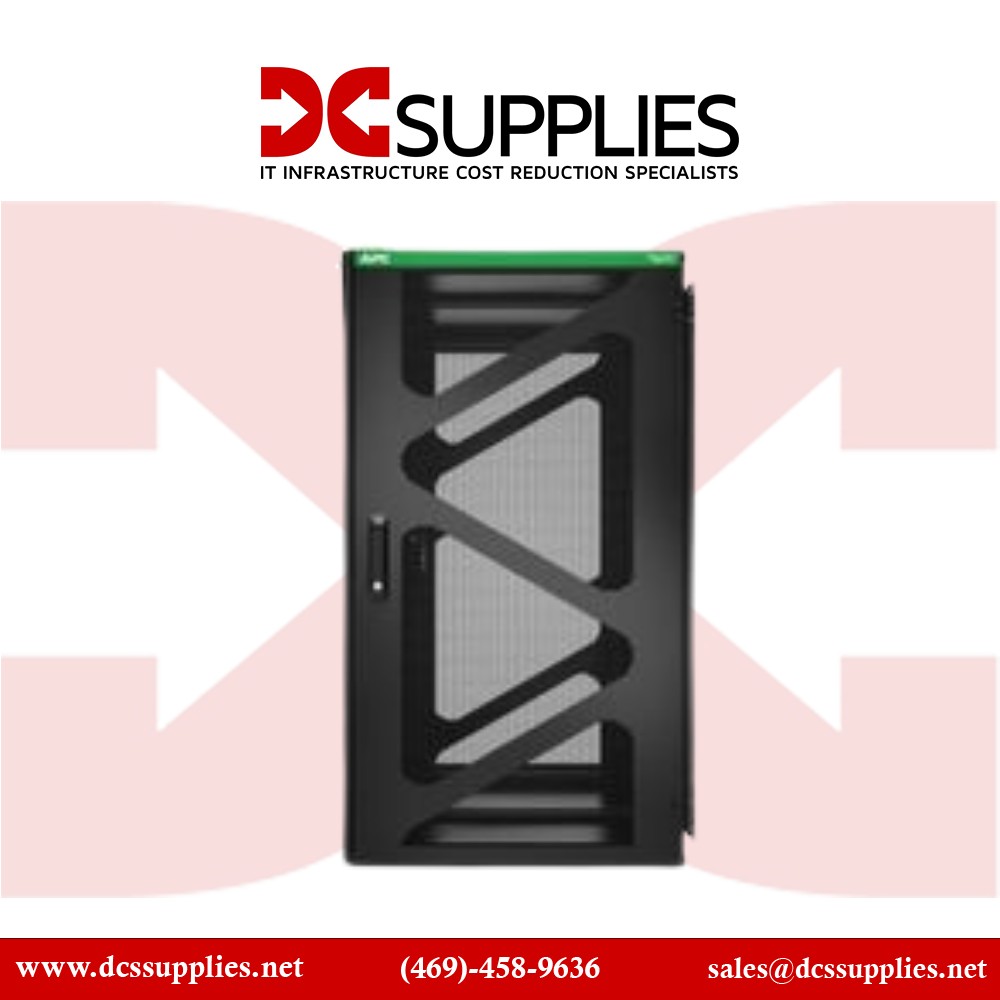

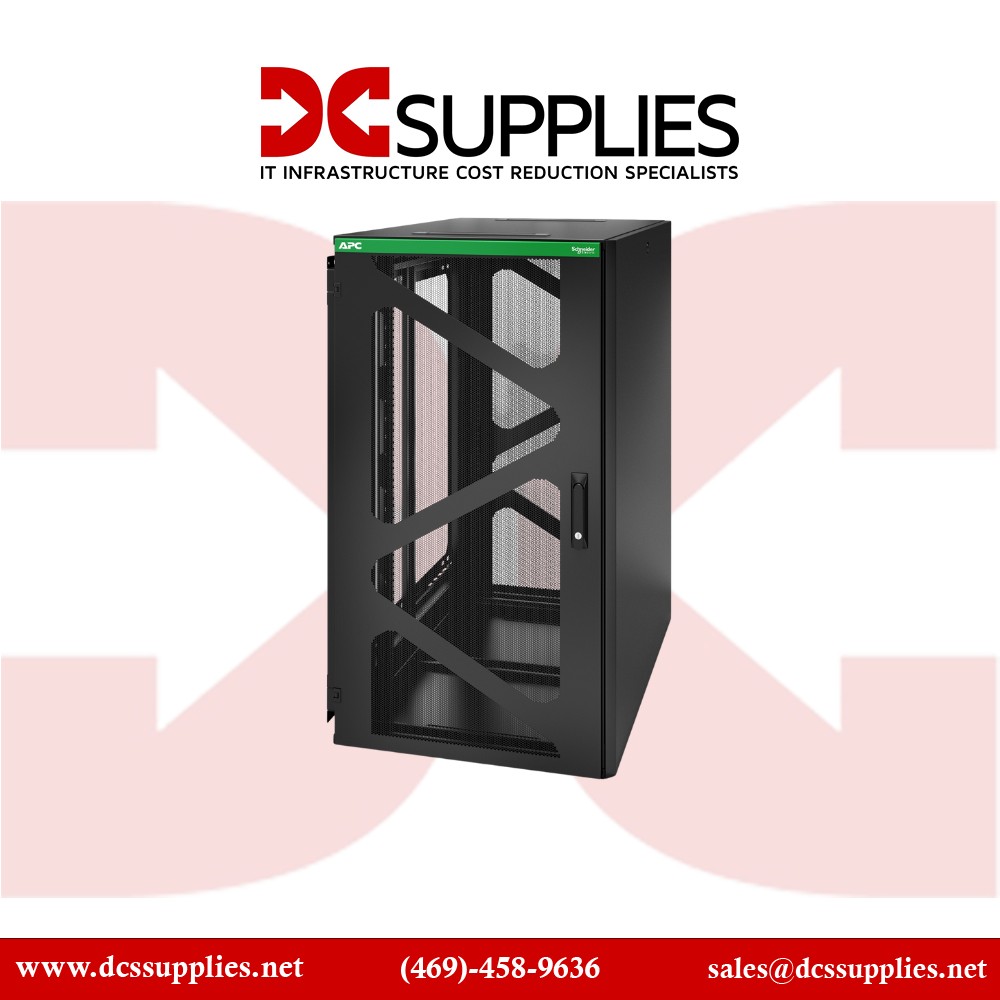

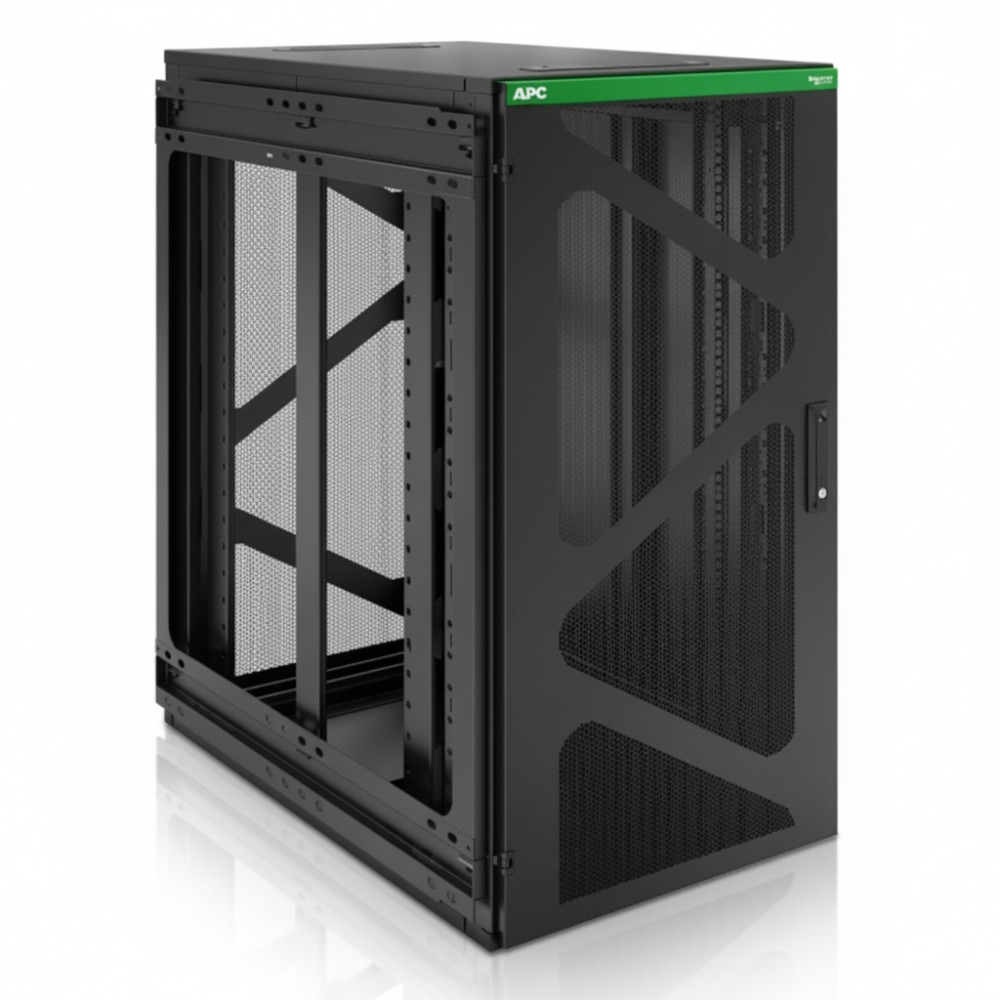

APC AR124SM - NetShelter 24U Wallmount Rack Enclosure
Overview
The APC AR124SM is a 24U wallmount rack enclosure tailored for edge IT deployments where floor space is limited. It features an 800 mm depth to house standard 19" equipment and supports a maximum load of 350 lb. Its low-profile side-mount design extends minimally from the wall, preserving aisle clearance while providing full rack access. The enclosure includes a locking swing-handle door, cable access openings top and bottom, accessory mounting channels, and preconfigured brackets for tool-less mounting of PDUs and accessories. Ideal for retail, branch offices, healthcare, and edge data center environments that require secure, compact, and reliable rack enclosures.
Key Features
24U capacity in a wallmount format with 800 mm depth
Side-mount layout to minimize wall protrusion
Locking swing-handle front door for physical security
Cable access at top and bottom for clean routing
Internal mounting channels for accessories and PDUs
Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | AR124SM |
| Product Type | Wallmount Rack Enclosure / Cabinet |
| Rack Units | 24U |
| Depth | 800 mm |
| Load Capacity | 350 lb (≈ 158.8 kg) |
| Rack Width | 19″ |
| Mounting Style | Side-mount / Wallmount |
| Material | Steel |
| Door Style | Locking swing-handle |
| Cable Access | Top and bottom openings |
| Ventilation | Vented panels (front/back) |
| Internal Rails | Accessory mounting channels |
| Operating Temp | 0 °C to 40 °C |
| Dimensions (H×W×D) | 1156 × 600 × 1037 mm |
| Weight | 80 kg |
