Overview

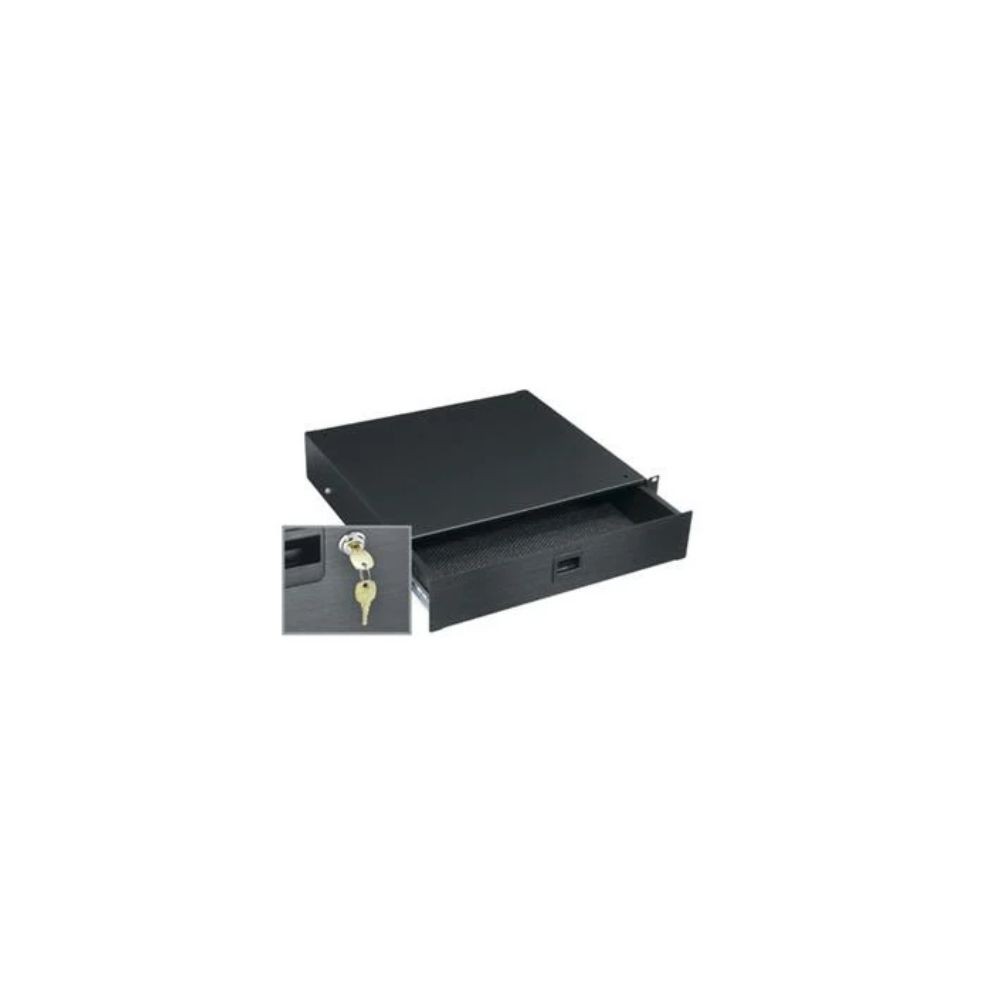

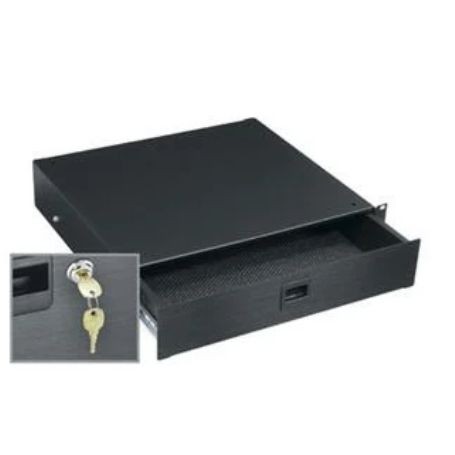

The Middle Atlantic D2LK is a heavy-duty, 2U rackmount drawer designed to provide enclosed storage within compatible equipment racks. It is suitable for professional AV installations, equipment rooms, studios, and network environments where tools, accessories, and small items need to remain organized and secured.
The drawer features rugged steel construction, a black brushed-and-anodized face, full-extension ball-bearing slides, and a spring-loaded latch with an installed keylock. A drawer mat and rear cable-entry grommet are included to help protect stored items and manage cables.
The D2LK occupies 3.5 inches of vertical rack space and has a 50 lb load capacity. Before installation, confirm the rack's available mounting height and usable depth, including clearance for the drawer and its extended slides.
Key Features
Provides enclosed storage within a standard 2U equipment rack.
Includes an installed keylock and spring-loaded drawer latch.
Uses full-extension ball-bearing slides for convenient access.
Features rugged steel construction with a black anodized finish.
Supports loads up to 50 lb with a drawer mat and rear grommet.
Technical Specifications
| Specification | Details |
|---|
| Brand | Middle Atlantic Products |
| Part Number | D2LK |
| Product Type | Heavy-duty locking rackmount drawer |
| Product Series | D Series |
| Rack Height | 2U (3.5 in / 89 mm) |
| Rack Width | 19 in (483 mm) |
| Exterior Dimensions (W × H × D) | 19 × 3.5 × 15.56 in |
| Interior Width | 15-7/8 in (403 mm) |
| Interior Depth | 14-1/2 in (368 mm) |
| Construction Material | Steel |
| Face Finish | Black brushed and anodized |
| Locking Mechanism | Installed keylock with spring-loaded latch |
| Slide Mechanism | Full-extension ball-bearing slides |
| Maximum Load Capacity | 50 lb (22.7 kg) |
| Included Accessories | Drawer mat and rear cable grommet |
| Product Weight | Approximately 9.9 lb (4.5 kg) |
| Warranty | 3-year limited warranty, subject to applicable terms |
Product Note
The supplied brand field, Strategic Sourcing, does not match the manufacturer identity associated with part number D2LK. The verified product is manufactured by Middle Atlantic Products, a Legrand brand. Confirm whether Strategic Sourcing is the supplier or reseller before publishing the listing.
The D2LK is a storage drawer, not an equipment shelf. Check rack depth, mounting compatibility, and load requirements before ordering. The stated 50 lb capacity is the manufacturer's listed load rating; distribute stored items appropriately.
Frequently Asked Questions
What is the Middle Atlantic D2LK used for?
It provides enclosed, lockable storage for accessories and small equipment inside compatible equipment racks.
How much rack space does the D2LK require?
It occupies 2 rack units, equivalent to 3.5 inches of vertical rack space.
Does the drawer include a lock?
Yes. The D2LK includes an installed keylock and a spring-loaded latch.
What is the maximum load capacity?
The listed maximum load capacity is 50 lb (22.7 kg).
What accessories are included?
The drawer includes a drawer mat and rear cable-entry grommet.
Will the D2LK fit any equipment rack?
It is designed for standard 19-inch rack systems, but usable depth and mounting clearance must be checked. Its exterior depth is approximately 15.56 inches, so shallow racks may not accommodate it.
