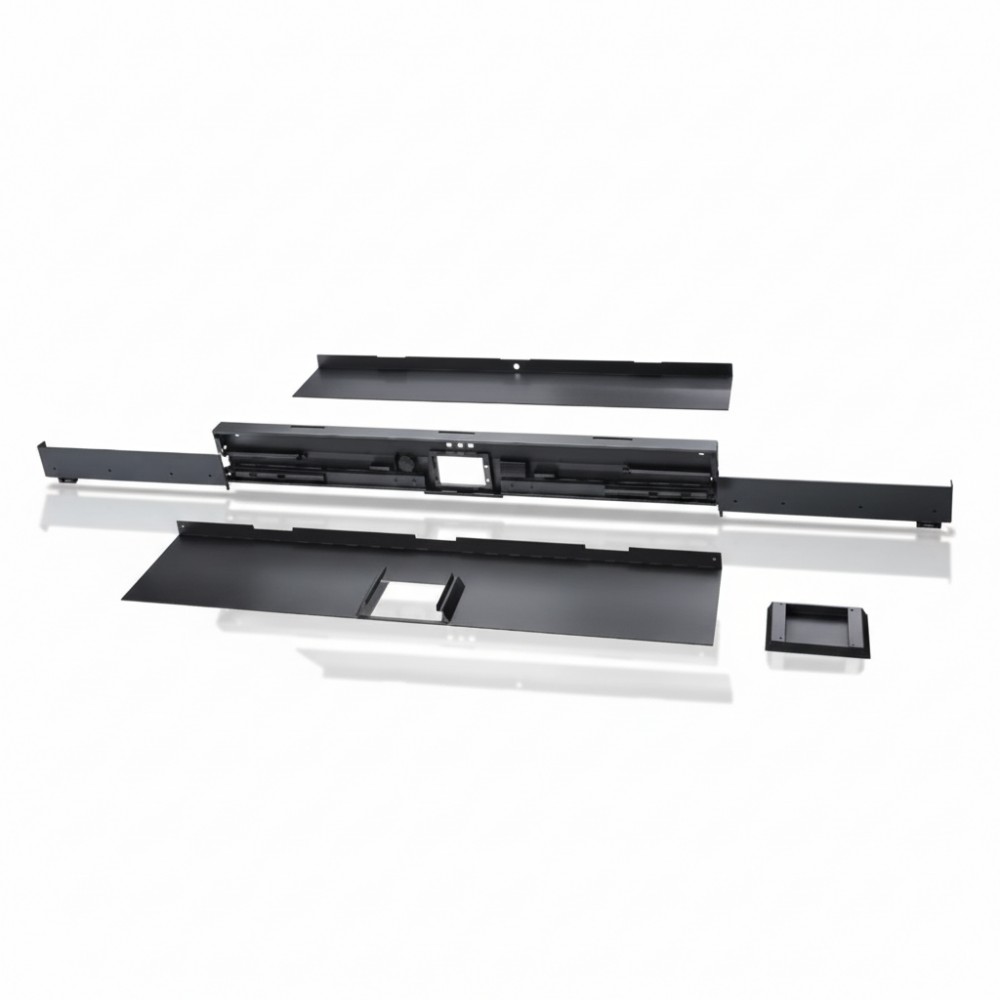

APC ACDC2403 NetShelter Aisle Containment Door Header for 48U SX View larger

APC ACDC2403 NetShelter Aisle Containment Door Header for 48U SX

ACDC2403

New

Steel door-header module for the APC ACDC2403, designed to cap
×




Detailed Specifications

APC ACDC2403 48U SX Thermal Containment Door Header

Overview

The APC ACDC2403 is a door-header module designed specifically for 48U SX NetShelter racks in an aisle containment architecture. It’s used by data-centre and network infrastructure engineers to cap the top of the aisle containment door, preserving the thermal boundary between hot and cold aisles. By sealing this gap, the header helps prevent air leakage, ensuring that the containment system maintains consistent airflow and minimizes recirculation. It integrates cleanly with the rest of APC’s Eco-Aisle / NetShelter containment framework, making it a reliable component in row-based rack deployments.

Key Features

  • Tailored for 48-unit high SX NetShelter enclosures, matching the form factor precisely.

  • Provides a tight top seal for door frames, helping prevent hot-air bypass and improving containment efficiency.

  • Heavy-duty steel construction supports structural integrity without sagging or bending.

  • Black powder-coat finish matches APC rack aesthetics.

  • Compliance with RoHS and REACH environmental standards ensures regulatory alignment.

Technical Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number ACDC2403
Product Type Aisle Containment Door Header
Compatible Rack 48U SX NetShelter
Height ~3.35 in / 85 mm
Width ~19.76 in / 502 mm
Depth ~57.76 in / 1,467 mm
Net Weight ~76.06 lb / 34.5 kg
Environmental Compliance RoHS, REACH
Warranty As per APC NetShelter accessory policy (check with distributor)
Packaging Dimensions ~60.63″ × 9.65″ × 22.05″ (L × W × H) with shipping weight ~85 lb
