Detailed Specifications

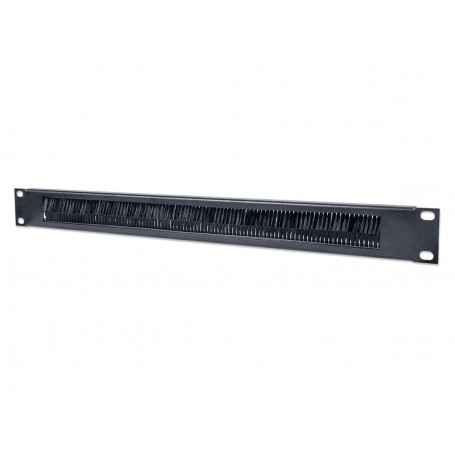

Intellinet 712767 - 19" Cable Entry Panel
Overview:
The Intellinet 712767 is a 1U, 19-inch rack-mount cable entry panel with an integrated brush insert . It provides a clean, organized pathway for routing network cables from the front to the rear of a server rack.
Network engineers and data center technicians use this panel to improve cable management and maintain professional rack installations. The brush insert allows for easy cable passage while helping to reduce dust ingress and maintain airflow .
Deployment is in standard 19-inch racks or cabinets requiring organized cable entry, typically at the top or rear. The horizontal installation and 1U height make it suitable for structured cabling environments. It is not a structural mounting component and should not be used to support heavy cables.
Key Features:
1U horizontal rack installation with brush insert
Steel construction with 1.5mm thickness
Antistatic powder coating, black RAL 9005
Reduces dust ingress while allowing cable pass-through
Three-year manufacturer warranty
Specifications:
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 712767 |
| Product Type | Rack Cable Entry Panel |
| Rack Size | 19" (48.3 cm) |
| Rack Height | 1U |
| Material | Steel (1.5 mm thickness) |
| Color | Black, RAL 9005 |
| Finish | Antistatic powder coating |
| Width | 483 mm (19.02") |
| Depth | 15 mm (0.59") |
| Weight | 300 g (0.66 lbs) |
