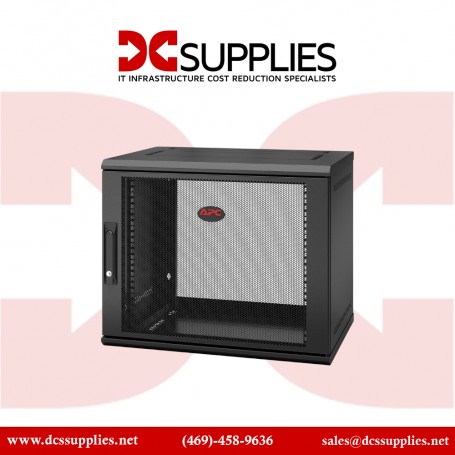

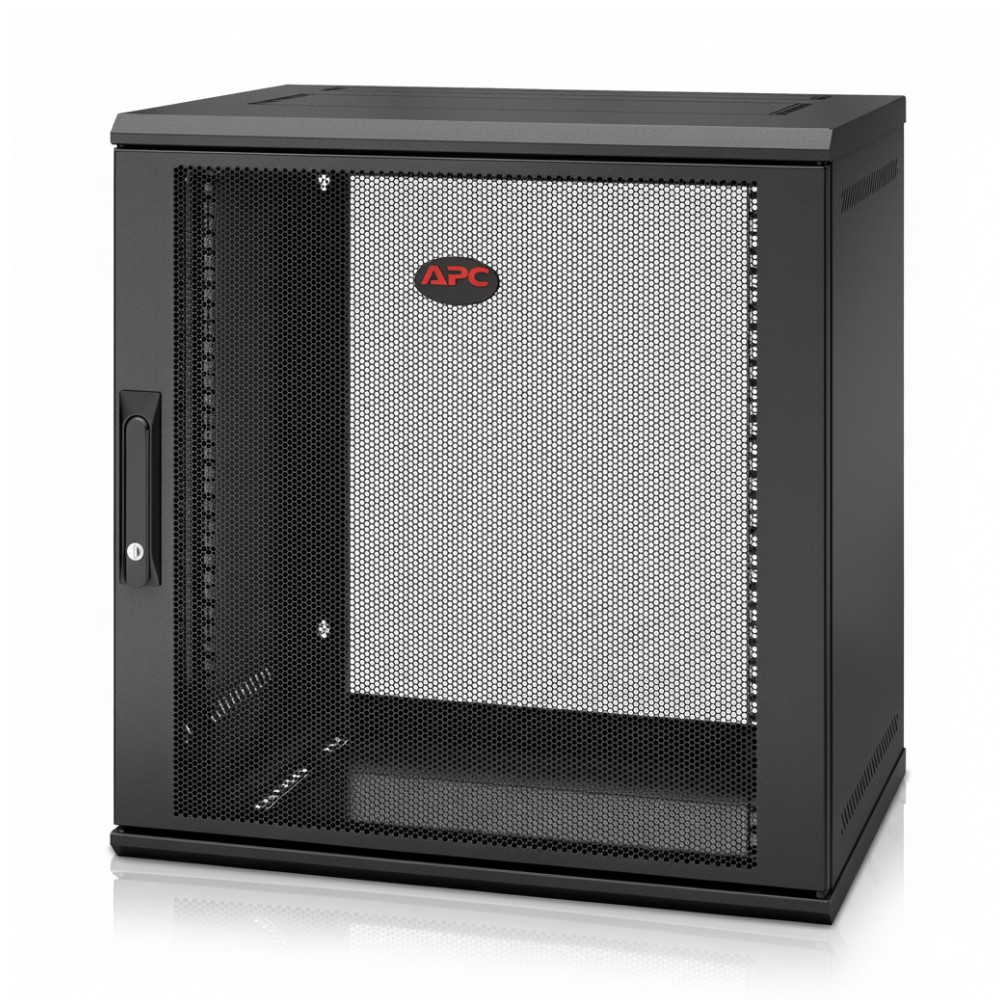

APC AR112SH4 NetShelter WX 12U Wall-mount Enclosure Rack cabinet 12U

New

Secure compact 12U wall mount rack for IT and network equipment
×




  • New

Detailed Specifications

APC

AR112SH4

NetShelter WX 12U Wall-Mount Enclosure (Single-Hinged, Switch Depth)

The APC AR112SH4 NetShelter WX is a rugged yet compact 12U wall-mounted rack enclosure, designed for edge computing, branch offices, retail, healthcare, and educational settings. Fully assembled and delivered with shock-resistant packaging, this cabinet is ready for rapid deployment. Its single-hinged, reversible perforated door secures equipment while ensuring efficient airflow, making it a practical solution for network switches, servers, patch panels, and mini-UPS units in tight spaces.

Features

The AR112SH4 wall-mount cabinet is engineered for durability and operational efficiency. Its welded steel construction includes a reversible, locking perforated door that adapts to varied installation environments. The ventilated design promotes side-to-side airflow, accommodating passive cooling or adding fan trays for enhanced thermal control—essential for network and server equipment.

Advanced Options

Pre-assembled and shock-tested, this enclosure ensures safer transport and faster site rollout. The integrated accessory features—such as top and bottom 0.5U knockouts and vertical zero-U channels—support clean cabling and enable insertion of PDUs, cable managers, or fan modules without sacrificing rack space. Grounding studs and compliance with UL 2416 and IP20 make this rack suitable for diverse environments requiring equipment protection and code compliance.

Product Key Features

  • 12U wall-mount rack, 19″ EIA‑310 compliant

  • Fully assembled with shock-resistant packaging

  • Reversible, single-hinged locking perforated front door

  • Supports up to 200 lb (91 kg) static load

  • 400 mm deep; usable equipment depth up to 329 mm

  • Ventilated design with cable knockouts and zero-U accessory channels

Reliability & Performance

The APC AR112SH4 delivers enterprise-grade reliability with a welded steel chassis and integrated shock protection during transit. Its perforated front and ventilated side panels support effective airflow, essential for equipment longevity. Knockouts and accessory channels make future upgrades—like fan trays or PDUs—hassle-free. Grounding studs ensure compliance and safety in commercial and industrial deployments.

Key Features :

  • 12U, 19″ wall-mount cabinet, single-hinged door

  • Fully assembled; no field assembly required

  • Perforated reversible locking door

  • 200 lb static load rating

  • 400 mm depth; 329 mm mounting depth

  • Top/bottom 0.5U knockouts; zero-U accessory support

  • Welded steel, ventilated enclosure

  • Includes grounding studs and compliance certifications

Specifications :

SpecificationDetails
Model Number AR112SH4
Product Type Wall-Mount Rack Enclosure (NetShelter WX)
Rack Units 12U
Mounting Standard 19″ EIA‑310
External Dimensions (HxWxD) 620 × 600 × 400 mm (24.4″ × 23.6″ × 15.7″)
Maximum Equipment Depth 329 mm (12.95″)
Static Load Capacity 90.7 kg (200 lb)
Net Weight 14.9 kg (32.8 lb)
Construction Welded steel chassis, perforated door
Door Style Single-hinged, reversible, lockable
Ventilation Perforated front, ventilated panels
Knockouts 0.5U top and bottom accessory spaces
Accessory Channels Two vertical zero-U
Compliance UL 2416, IP20, RoHS, REACH
Grounding Included grounding studs
Packaging Shock-resistant crate; no assembly required
Warranty 5-Year repair-or-replace
