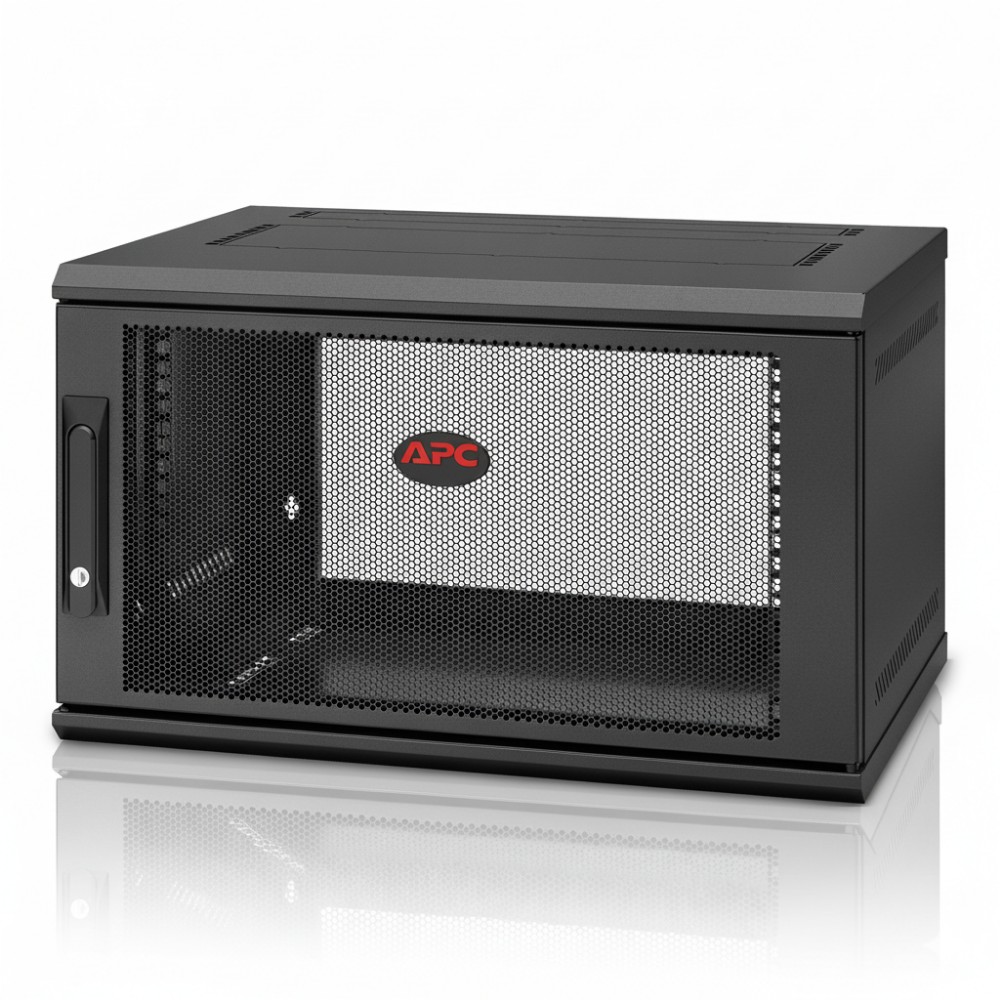

APC AR106SH4 - 6U Wall-Mount Rack Enclosure
Overview :
APC AR106SH4 is a 6U wall-mount rack enclosure from the NetShelter WX series designed to mount rack-mountable IT equipment × such as switches, patch panels, and compact appliances × on vertical surfaces where floor cabinets aren't feasible. This enclosure is deployed by network and systems engineers in edge closets, IDF/MDF rooms, and branch office environments with limited footprint. It solves constrained-space mounting while retaining structured rack standards and cable access.
Mechanically, AR106SH4 supports 6 rack units (6U) of standard 19-inch EIA-310 equipment with a maximum usable depth near 329 mm and a static load capacity around 90.7 kg (200 lb) when anchored properly to a wall structure. The enclosure ships fully assembled, simplifying installation.
The enclosure fits network closets, telecom rooms, retail or healthcare IT spaces, and other environments where a compact rack is required near cable infrastructure. The front door is perforated and reversible, enabling adaptation to installation constraints while providing passive airflow through installed equipment.
Integration with infrastructure includes top and bottom ½U knockouts for cable entry or accessory installation (such as fan trays or patch panels). The reversible door uses a locking swing handle to support basic access control where physical security of rack equipment matters.
In a practical deployment, AR106SH4 can mount network switching and patching hardware directly above workstations or in reduced-footprint closets, maximizing usable space and organizing cable routing without requiring a full-height cabinet.
This enclosure is not suitable for heavy rack servers or high-density compute stacks requiring deeper equipment or significant cooling. It does not include internal PDUs or dedicated airflow systems; those must be added separately to meet power distribution and cooling requirements.
Key Features :
6U 19″ wall-mount rack enclosure (NetShelter WX)
Reversible single-hinged perforated door
Supports ~329 mm equipment depth
Static load ~90.7 kg (200 lb) capacity
Top/bottom ½U accessory knockouts
Specifications :
| Spec | Detail |
|---|
| Brand | APC |
| Part Number | AR106SH4 |
| Product Type | Wall-Mount Rack Enclosure |
| Rack Units | 6U |
| Rack Width | 19″ (EIA-310) |
| Maximum Mounting Depth | ~329 mm |
| Minimum Mounting Depth | ~73 mm |
| Static Load Capacity | ~90.7 kg (200 lb) |
| Height | ~355 mm |
| Width | ~600 mm |
| Depth | ~400 mm |
| Net Weight | ~11.1 kg |
| Front Door | Single-hinged, reversible, lockable |
| Knockouts | Top/bottom ½U for accessories |
| Construction | Welded steel |
| Ventilation | Perforated airflow |
