Detailed Specifications

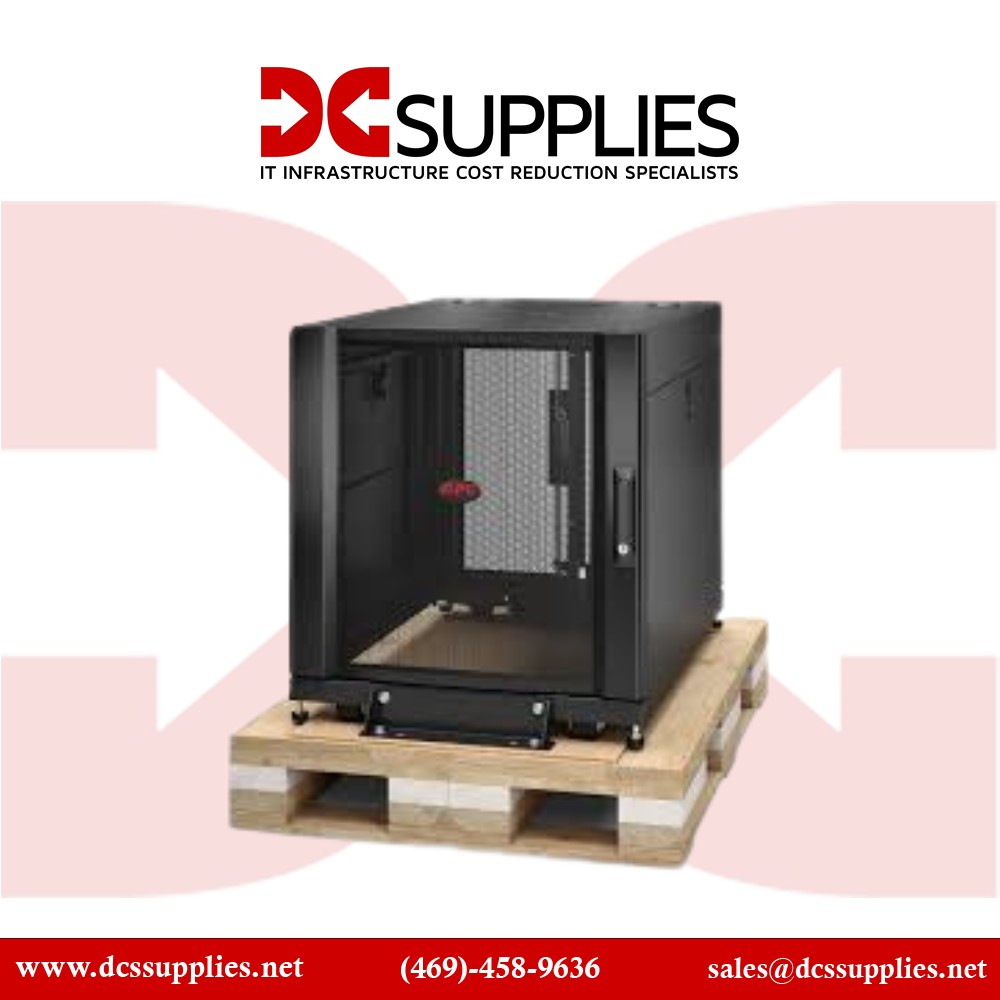

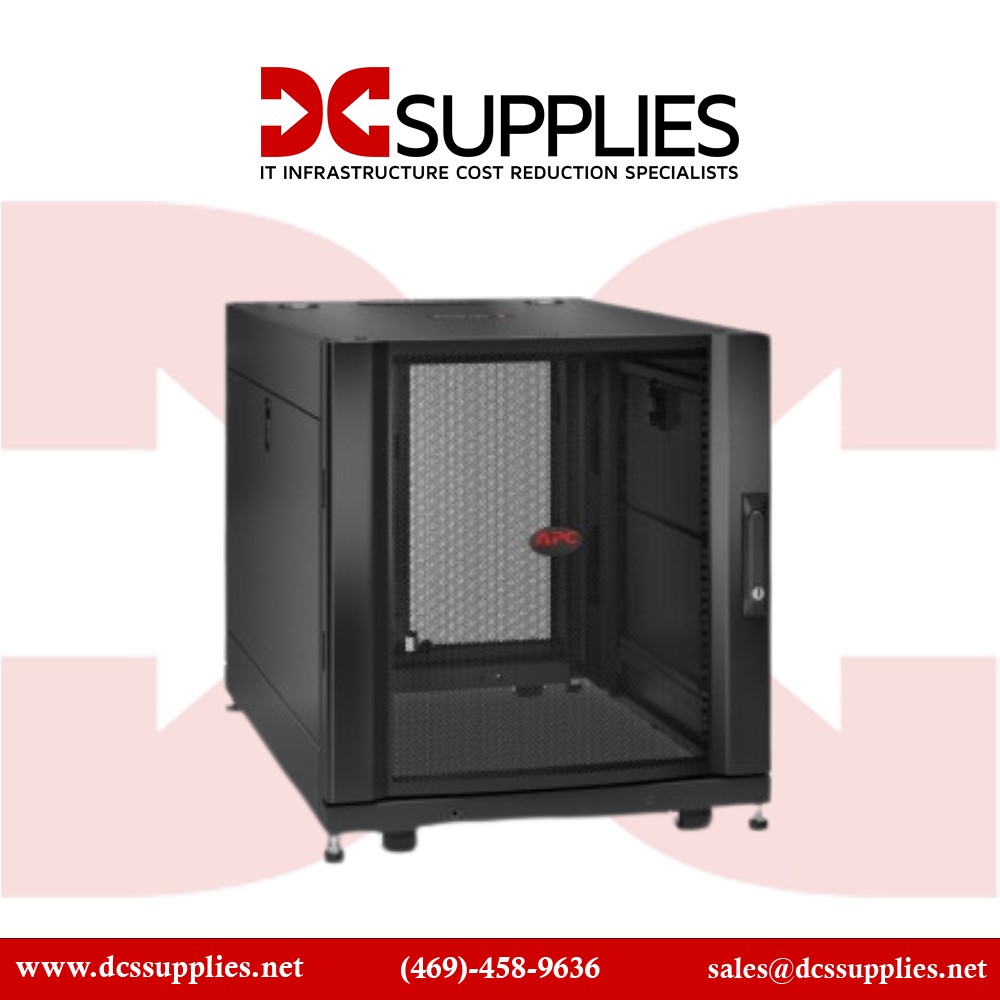

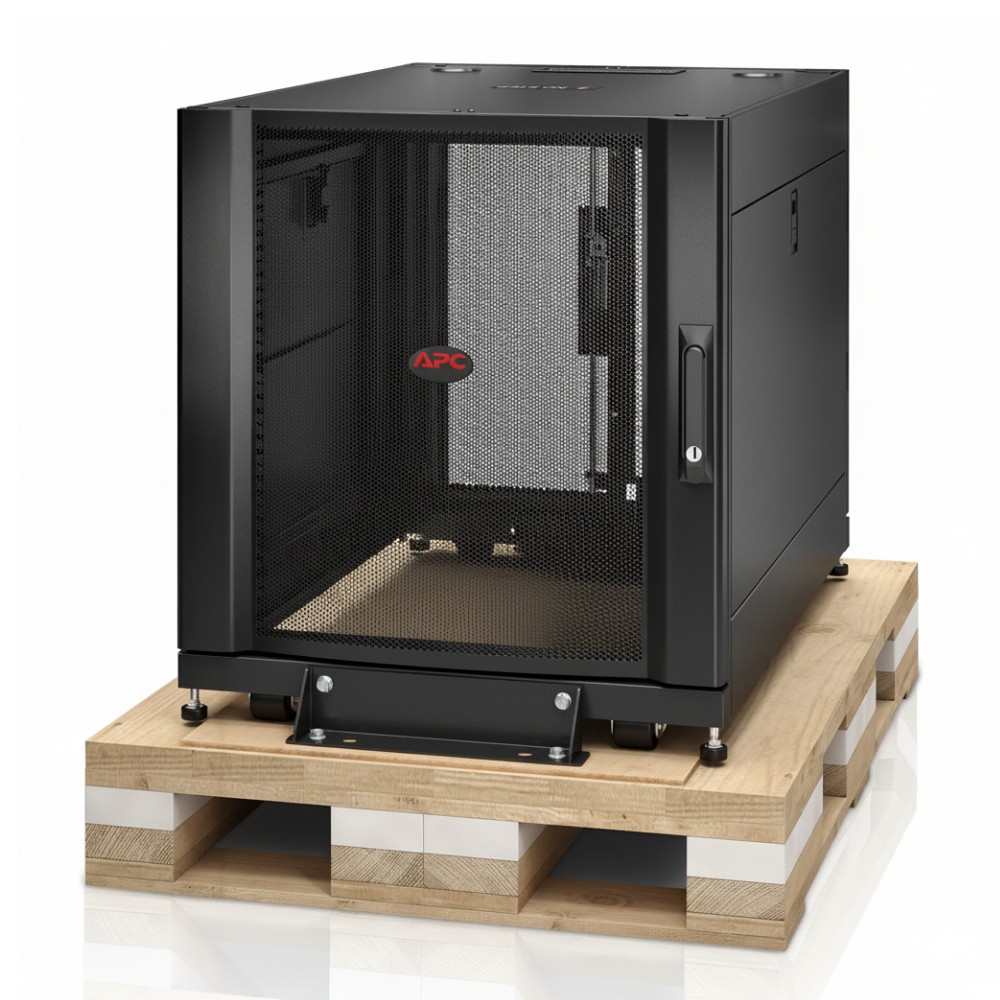

APC AR3003SP - 12U NetShelter SX Rack Enclosure (Shock Pack)
Overview
The APC AR3003SP is a 12-rack unit enclosure from the NetShelter SX line, designed for compact and edge deployments where space is tight. Its shock-packaging and shorter height make it ideal for mounting under cabinets, inside closets, or in branch micro data rooms. It supports equipment mounting depths up to 756 mm (≈ 29.75″) and handles payloads of up to 272 kg (static and dynamic).The enclosure includes heavy-gauge EIA-310 compliant rails, 0U accessory mounting channels, and front and rear vented doors for airflow. Its compact footprint (600 mm width × 900 mm depth) helps it fit into constrained spaces while still providing real rack capacity.
Key Features
Shock-pack shipping reduces risk of transit damage and eases deployment
Supports max 756 mm equipment depth for deeper networking or storage gear
272 kg load rating (static & dynamic) supports server and PDU loads
0U accessory channels free up rack space for cable managers and panels
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AR3003SP |
| Product Type | Rack Enclosure / Cabinet |
| Rack Units | 12U |
| Equipment Depth Support | Up to 756 mm (≈ 29.75″) |
| Width × Depth | 600 mm × 900 mm |
| Height | 658 mm (25.9″) |
| Load Capacity | 272 kg static / dynamic |
| Rail Standard | EIA-310 heavy gauge rails |
