Detailed Specifications

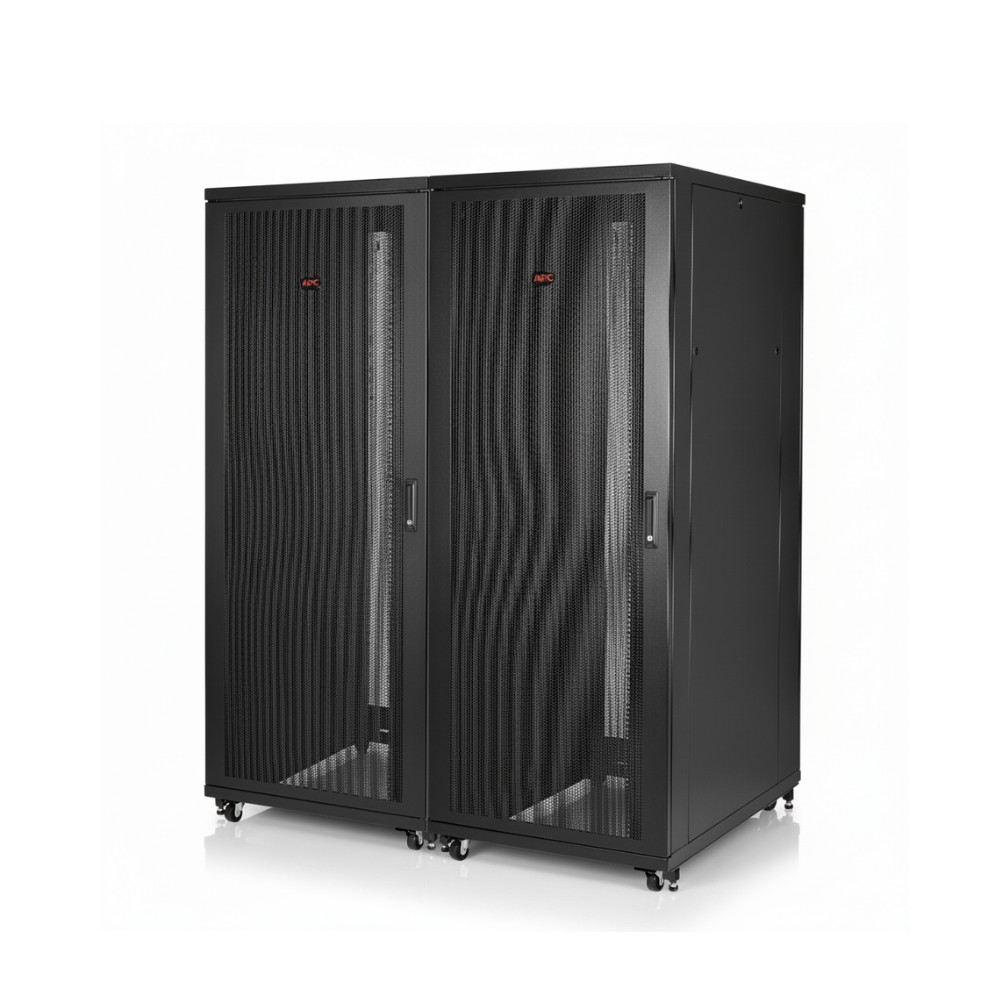

APC AR2580 - 42U Rack Enclosure 800x1200mm
Overview
The APC AR2580 is a NetShelter SV series rack enclosure designed for housing servers, networking equipment, and power infrastructure in data center and enterprise environments. It is used by IT teams to standardize rack deployments, improve airflow, and manage cabling in high-density setups.
This enclosure provides a 42U rack height with an 800mm width and 1200mm depth, offering additional internal space for cable management and deep IT equipment. It supports standard 19-inch EIA-310 compliant mounting and includes perforated doors for airflow, integrated grounding, and vertical mounting options for accessories.
It is typically deployed in data centers, server rooms, and network closets where structured rack infrastructure is required. The extra width improves cable routing, while the depth allows better rear clearance for large servers and PDUs.
This enclosure is not suitable for shallow-depth deployments or compact edge environments due to its large footprint. It is designed for full-scale rack installations requiring structured airflow and cable management.
Key Features
- 42U rack height for full server deployments
- 800mm width improves cable management space
- 1200mm depth supports deep IT equipment
- Perforated doors for optimized airflow
- Pre-installed casters and leveling feet
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AR2580 |
| Product Type | Rack Enclosure |
| Rack Height | 42U |
| Rack Width | 19-inch (EIA-310) |
| External Width | 800 mm |
| External Depth | 1200 mm |
| External Height | 2057 mm |
| Max Static Load | 1000 kg |
| Max Dynamic Load | 460 kg |
| Mounting Depth Range | 168 - 917 mm |
| Protection Rating | IP20 |
| Doors | Perforated front & rear |
| Cooling | Passive airflow design |
| Warranty | 5 years |
