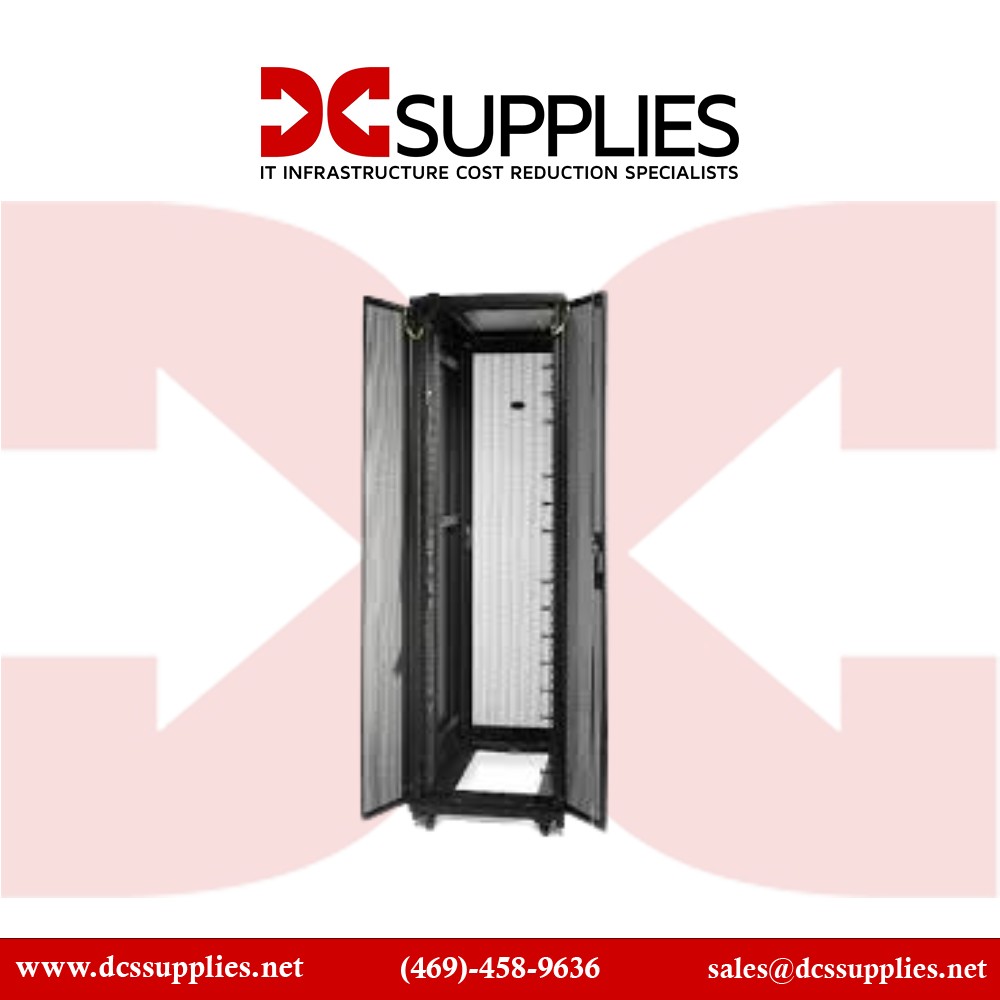

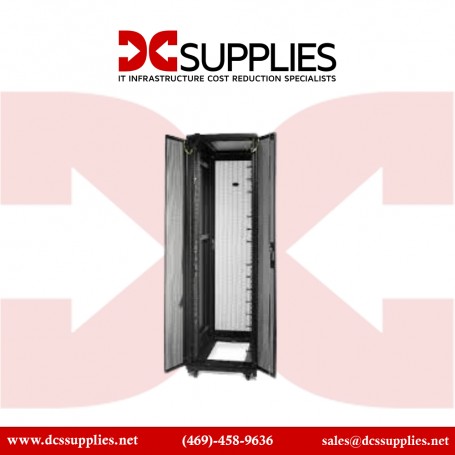

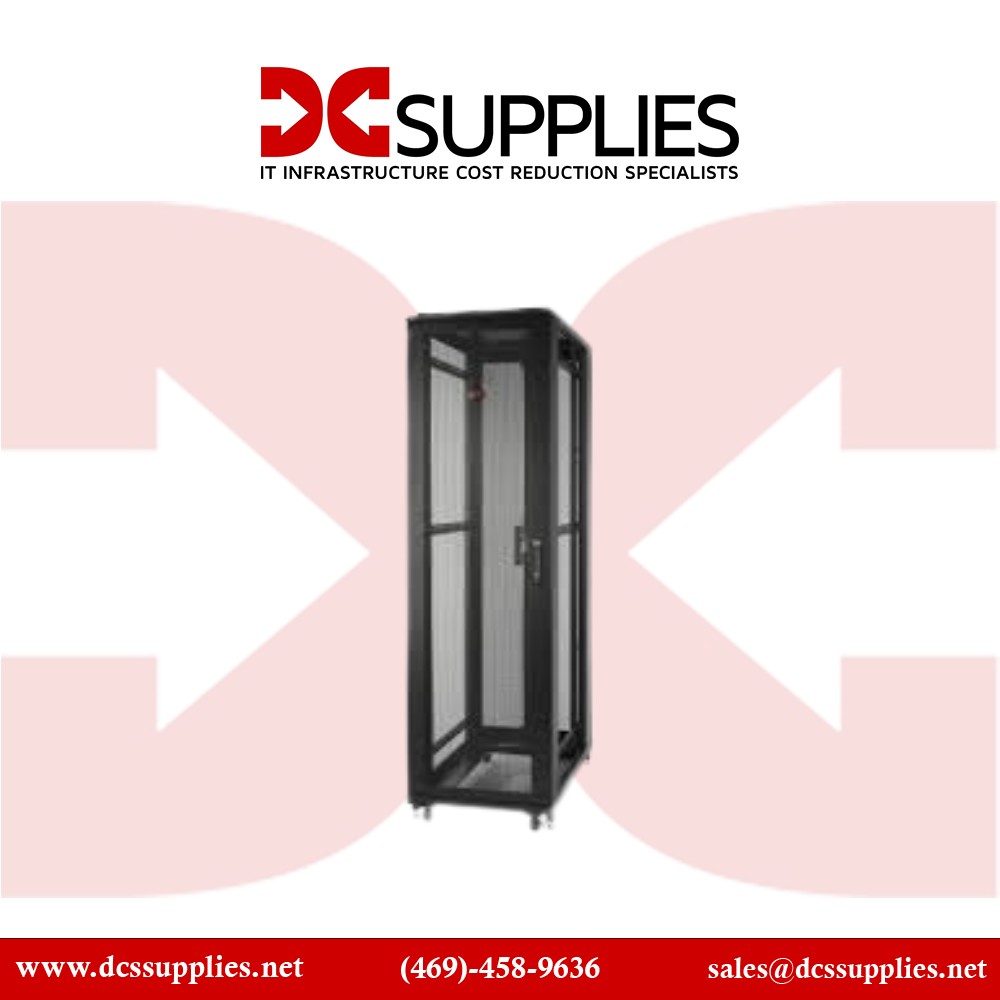

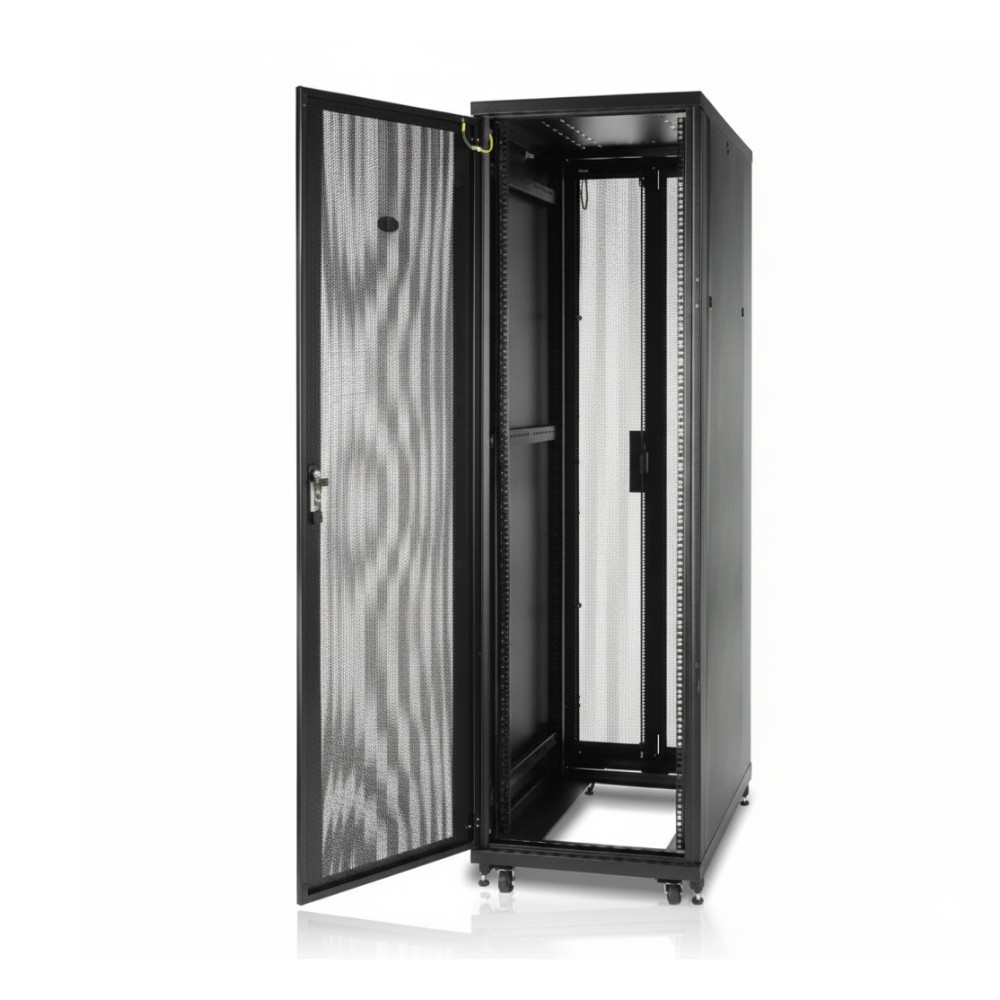

APC AR2407 NetShelter SV Deep Enclosure with Sides Black

New

H1 Heading: APC AR2407 NetShelter SV 48U IT Enclosure, 600mm W x 1060mm D
×




  • New

Detailed Specifications

APC

AR2407

NetShelter SV 48U Deep Enclosure with Side Panels – 600mm x 1200mm, Black

The APC AR2407 NetShelter SV is a 48U deep server enclosure cabinet built for high-density IT environments. Measuring 600mm wide and 1200mm deep, it offers ample space for deep servers, cabling, and airflow optimization. This model includes side panels for added security and structural integrity, making it ideal for enterprise data centers and network closets.

Features

Engineered for flexibility and scalability, the AR2407 supports a wide range of server and networking applications. The 1200mm depth accommodates full-length servers and high-capacity cable bundles while maintaining efficient airflow. The enclosure is delivered fully assembled with integrated grounding, adjustable mounting rails, and robust cable access systems.

Advanced Options

Its perforated front and rear doors promote passive airflow, ensuring effective cooling without additional cost. Tool-less side panels offer quick access for maintenance while keeping equipment secure. Designed to meet universal IT standards, this enclosure integrates seamlessly with APC cable management and power distribution accessories.

Product Key Features

  • 48U rack height with deep 1200mm depth for full-length servers

  • Includes side panels and removable doors for secure access

  • Adjustable mounting rails for flexible equipment installation

  • Perforated doors enhance airflow and cooling efficiency

  • Robust cable management with wide access channels

  • Compatible with APC rack PDUs, cable organizers, and airflow kits

Reliability & Performance

Built to withstand dynamic IT environments, the AR2407 features a welded frame for enhanced stability and supports high static and dynamic load capacities. It’s ideal for growing data centers and edge deployments where depth and airflow are essential for performance and uptime.

Key Features (Bullet List)

  • 48U, 19" rack enclosure with 1200mm depth

  • 600mm width fits standard floor tiles

  • Ships fully assembled with side panels

  • Perforated front and rear doors for airflow

  • Adjustable depth mounting rails

  • Tool-less vertical accessory channels

  • Cable entry via top and bottom panels

  • High load-bearing capacity

  • Integrated grounding system

  • Black powder-coated finish

Specifications :

SpecificationDetails
Model Number AR2407
Rack Units 48U
Form Factor Freestanding Enclosure
Dimensions (HxWxD) 89.4 x 23.6 x 47.2 in (2270 x 600 x 1200 mm)
Color Black
Side Panels Included (removable, locking)
Front/Rear Doors Perforated (reversible, locking)
Mounting Rails Adjustable depth
Load Capacity Static: 1363 kg (3000 lb), Dynamic: 1022 kg (2250 lb)
Cable Management Top/bottom access, tool-less channels
Weight ~135 kg (297.6 lbs)
Warranty 5 Years
