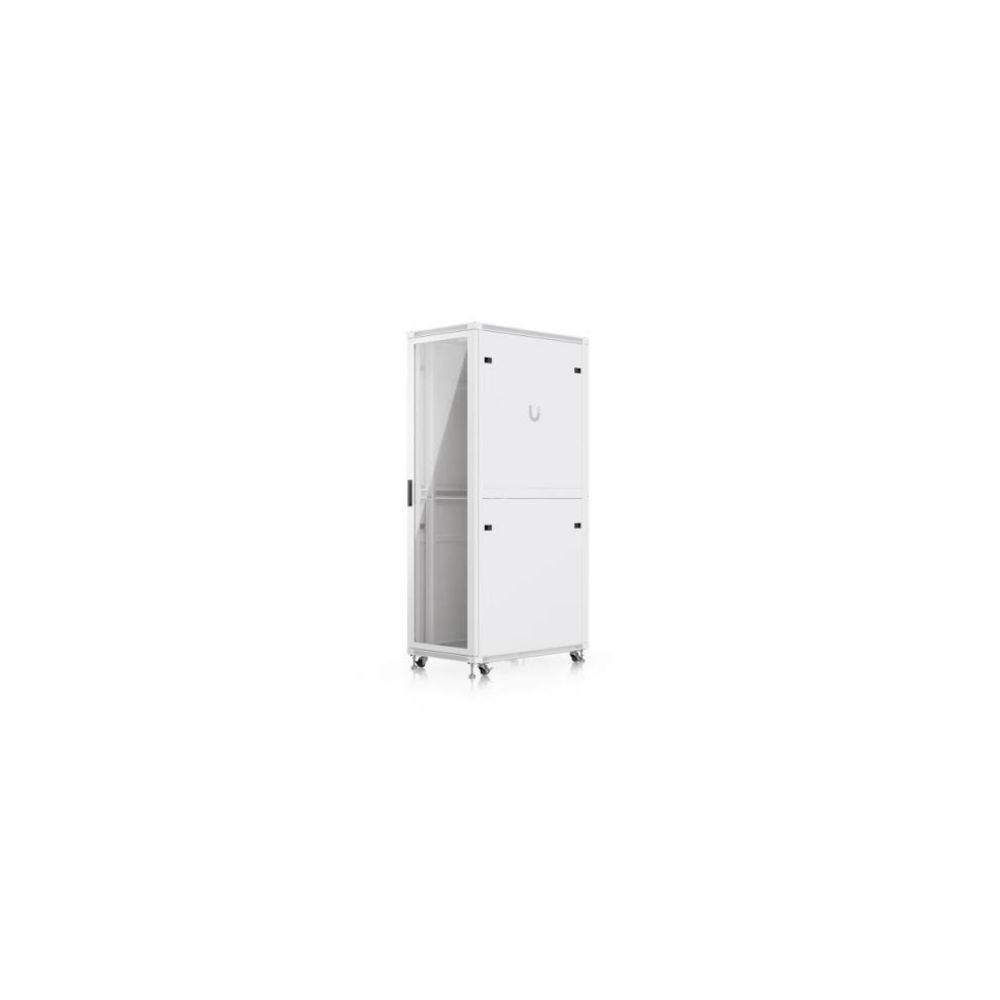

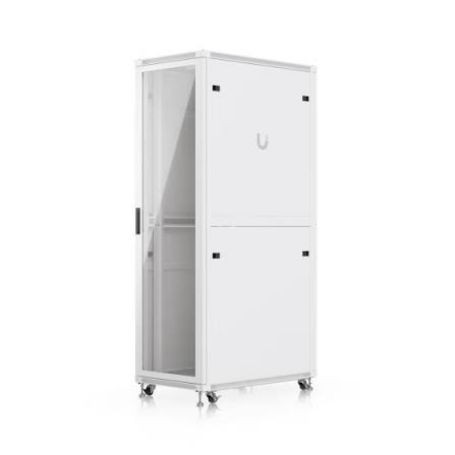

Ubiquiti UACC-RACK-42U-1000-G – UniFi 42U 1000mm Rack Cabinet with Glass Door
Overview
The Ubiquiti UACC-RACK-42U-1000-G is a 42U, four-post enclosed floor-standing rack cabinet with a 1,000mm external depth and tempered glass front door. It provides standard 19-inch rack space for network, server, power, fiber, and other compatible rack-mounted infrastructure.
The cabinet uses an SPCC steel enclosure with four removable and lockable side panels, a solid rear door, adjustable mounting posts, lockable casters, leveling stands, cabinet interconnect provisions, floor-anchor provisions, vertical cable management, and four pre-installed AC fan modules.
Technical Information
The UACC-RACK-42U-1000-G provides 42U of rack height and square mounting holes. Its mounting depth is adjustable from 652.3mm by default to 877.3mm maximum in 15mm increments. The cabinet is rated for an 800kg static load and a 320kg rolling load.
Four 120 × 120 × 38mm AC fan units are pre-installed for cabinet ventilation. The enclosure also provides two top and two bottom cable-entry openings, each measuring 335 × 52.5mm. Grounding lugs are provided for rack bonding.
Compatibility
The UACC-RACK-42U-1000-G accepts standard 19-inch rack-mount equipment and provides substantially greater mounting depth than Ubiquiti's 800mm-deep 42U glass-door cabinet. Equipment depth should be checked against the 652.3mm default and 877.3mm maximum mounting positions.
The cabinet is designed for floor-standing installation and includes lockable casters and leveling stands. Its 4-post construction and square mounting holes support compatible rack-mount equipment and accessories.
Key Features
- 42U four-post enclosed floor-standing rack cabinet
- 1,000mm external cabinet depth with 877.3mm maximum mounting depth
- Tempered glass reversible front door and solid reversible rear door
- 800kg static and 320kg rolling load capacity
- Four pre-installed 120 × 120 × 38mm AC fan modules
Applications
The UACC-RACK-42U-1000-G is suited to data centers, server rooms, network rooms, enterprise infrastructure deployments, and other installations requiring a deep 42U enclosure for standard 19-inch equipment.
The additional cabinet depth provides mounting clearance for deeper rack equipment and structured cable management. The tempered glass front door allows equipment visibility while the solid rear door provides enclosed rear protection.
DC Supplies Product Note
The 1,000mm cabinet depth does not represent the usable equipment mounting depth. The UACC-RACK-42U-1000-G has a default mounting depth of 652.3mm and a maximum adjustable mounting depth of 877.3mm. Verify equipment chassis depth, rear clearance, cable bend radius, and accessory requirements before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-RACK-42U-1000-G |
| Product Type | 42U Rack Cabinet |
| Rack Height | 42U |
| Rack Type | 4-post enclosed cabinet |
| Cabinet Depth | 1,000mm |
| Rack Dimensions with Casters | 600 × 1,000 × 2,050mm |
| Rack Dimensions without Casters | 600 × 1,000 × 1,966mm |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | 652.3mm default; 877.3mm maximum |
| Adjustment Pitch | 15mm |
| Maximum Static Capacity | 800kg |
| Maximum Rolling Capacity | 320kg |
| Enclosure Material | SPCC steel |
| Door and Side Panel Thickness | 1.2mm |
| Main Body Thickness | 1mm |
| Mounting Post Thickness | 2mm |
| Front Door | Tempered glass; reversible; left-hand outswing by default |
| Rear Door | Solid; reversible; left-hand outswing by default |
| Side Panels | 4 solid, removable and lockable |
| Fan Modules | 4 pre-installed 120 × 120 × 38mm AC fans |
| Cable Entry Openings | 2 top and 2 bottom; each 335 × 52.5mm |
| Vertical Cable Management | Yes |
| Mounting | Floor stand |
| Casters | Lockable |
| Leveling Stands | Yes |
| Cabinet Interconnect | Yes |
| Floor Anchor | Yes |
| Grounding Lugs | Yes |
| Color | White |
| Finish | Powder coating |
| Rack Weight | 92.4kg |
| Packaging Dimensions | 740 × 1,165 × 2,223mm |
| Packaging Weight | 120.6kg |
| Security | 1 front door lock, 1 rear door lock, 8 side-panel locks, 3 keys |
| Standards | CE; EIA/ECA-310-E; RoHS |
| NDAA Compliant | Yes |
FAQs
How much rack space does the UACC-RACK-42U-1000-G provide?
The cabinet provides 42U of rack-mount equipment space.
What is the maximum equipment mounting depth?
The mounting depth can be adjusted from 652.3mm by default to 877.3mm maximum, using 15mm adjustment increments.
What type of front door does this rack use?
The UACC-RACK-42U-1000-G uses a tempered glass front door that is reversible and configured for left-hand outswing by default.
What is the load capacity?
The cabinet supports up to 800kg of static load and 320kg of rolling load.
How many fans are included?
Four 120 × 120 × 38mm AC fan modules are pre-installed.
Are the side panels removable?
Yes. Four solid side panels are removable and lockable.
