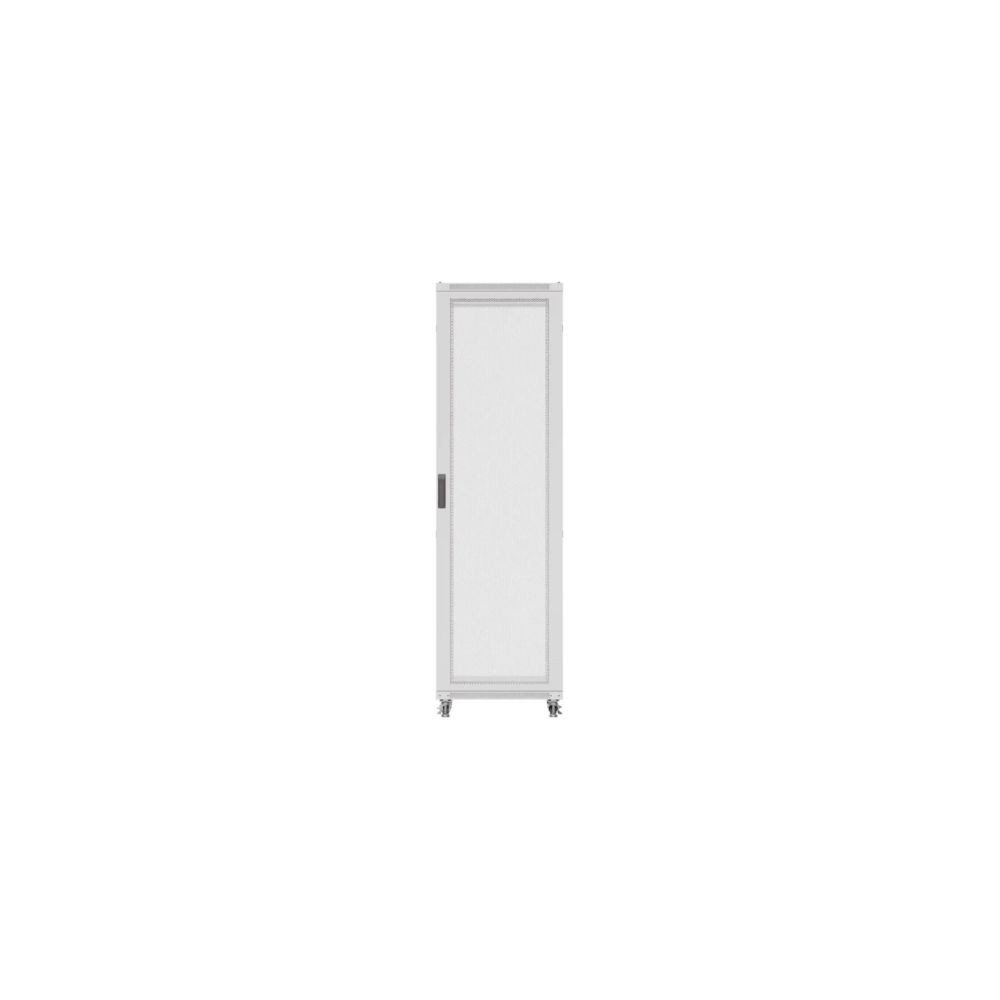

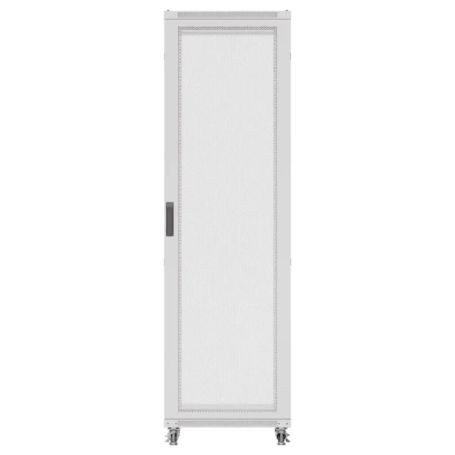

Ubiquiti UACC-RACK-42U-800-P – UniFi 42U 800mm Rack Cabinet with Perforated Doors
Overview
The Ubiquiti UACC-RACK-42U-800-P is a 42U, four-post enclosed floor-standing rack cabinet with an 800mm external depth and perforated front and rear doors. It is designed for standard 19-inch rack equipment where airflow and accessible equipment ventilation are important considerations.
The cabinet uses an SPCC steel enclosure with four removable and lockable solid side panels, adjustable mounting posts, lockable casters, leveling stands, floor-anchor provisions, cabinet interconnect provisions, and two pre-installed AC fan modules.
Technical Information
The UACC-RACK-42U-800-P provides 42U of equipment space and uses square mounting holes. The mounting depth is adjustable from a default of 607.2mm to a maximum of 682.2mm in 15mm increments. The cabinet is rated for an 800kg static load and a 320kg rolling load.
The perforated front and rear doors support airflow through the equipment enclosure. Two 120 × 120 × 38mm AC fan units are pre-installed. Cable-entry openings are provided at both the top and bottom of the cabinet, while grounding lugs support rack bonding.
Compatibility
The UACC-RACK-42U-800-P accommodates standard 19-inch rack-mount equipment. Equipment depth should be checked against the maximum 682.2mm mounting depth rather than the cabinet's 800mm external depth.
Ubiquiti identifies the UACC-Rack-Shelf-CLV, UACC-Rack-Rails-Slide, and UACC-Rack-PM-Kit as compatible accessories. The rack is intended for floor-standing installation and includes lockable casters and leveling stands.
Key Features
- 42U four-post enclosed floor-standing rack cabinet
- Perforated reversible front and rear doors for airflow
- 607.2mm default and 682.2mm maximum adjustable mounting depth
- 800kg static and 320kg rolling load capacity
- Two pre-installed 120 × 120 × 38mm AC fan modules
Applications
The UACC-RACK-42U-800-P is suited to network rooms, equipment rooms, enterprise infrastructure deployments, and data-center installations requiring enclosed 19-inch rack space with ventilated front and rear access.
The 42U capacity provides vertical rack space for compatible switches, gateways, patch panels, fiber equipment, power distribution equipment, and other rack-mounted infrastructure. The perforated doors can be used where front-to-rear airflow is preferred over a glass-door configuration.
DC Supplies Product Note
The UACC-RACK-42U-800-P uses perforated doors on both the front and rear, distinguishing it from the UACC-RACK-42U-800-G variant, which uses a tempered-glass front door and solid rear door. Select the door configuration according to the required airflow and equipment-access arrangement.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-RACK-42U-800-P |
| Product Type | 42U Rack Cabinet |
| Rack Height | 42U |
| Rack Type | 4-post enclosed cabinet |
| External Cabinet Depth | 800mm |
| External Dimensions with Casters | 600 × 800 × 2,050mm |
| External Dimensions without Casters | 600 × 800 × 1,966mm |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | 607.2mm default; 682.2mm maximum |
| Adjustment Pitch | 15mm |
| Maximum Static Capacity | 800kg |
| Maximum Rolling Capacity | 320kg |
| Enclosure Material | SPCC steel |
| Door and Side Panel Thickness | 1.2mm |
| Main Body Thickness | 1mm |
| Mounting Post Thickness | 2mm |
| Front Door | Perforated; reversible; left-hand outswing by default |
| Rear Door | Perforated; reversible; left-hand outswing by default |
| Side Panels | 4 solid, removable and lockable |
| Fan Modules | 2 pre-installed 120 × 120 × 38mm AC fans |
| Cable Entry Openings | 2 top and 2 bottom; each 335 × 52.5mm |
| Mounting | Floor stand |
| Casters | Lockable |
| Leveling Stands | Yes |
| Cabinet Interconnect | Yes |
| Floor Anchor | Yes |
| Grounding Lugs | Yes |
| Color | White |
| Finish | Powder coating |
| Weight | 84.6kg rack; 110.4kg packaged |
| Security | Front door lock, rear door lock, 8 side-panel locks, 3 keys |
| Standards | CE; EIA/ECA-310-E; RoHS |
| NDAA Compliant | Yes |
FAQs
How much rack space does the UACC-RACK-42U-800-P provide?
The cabinet provides 42U of rack-mount equipment space.
What type of doors does this rack use?
The UACC-RACK-42U-800-P uses perforated doors on both the front and rear. Both doors are reversible and configured for left-hand outswing by default.
What is the maximum equipment mounting depth?
The adjustable mounting depth reaches 682.2mm, with a default mounting depth of 607.2mm and 15mm adjustment increments.
What is the rack's load capacity?
The cabinet supports up to 800kg of static load and 320kg of rolling load.
Does the cabinet include fans?
Yes. Two 120 × 120 × 38mm AC fan modules are pre-installed.
Are the side panels removable?
Yes. Four solid side panels are removable and lockable.
