Ubiquiti UACC-RACK-42U-800-G – UniFi 42U 800mm Rack Cabinet with Glass Door
Overview

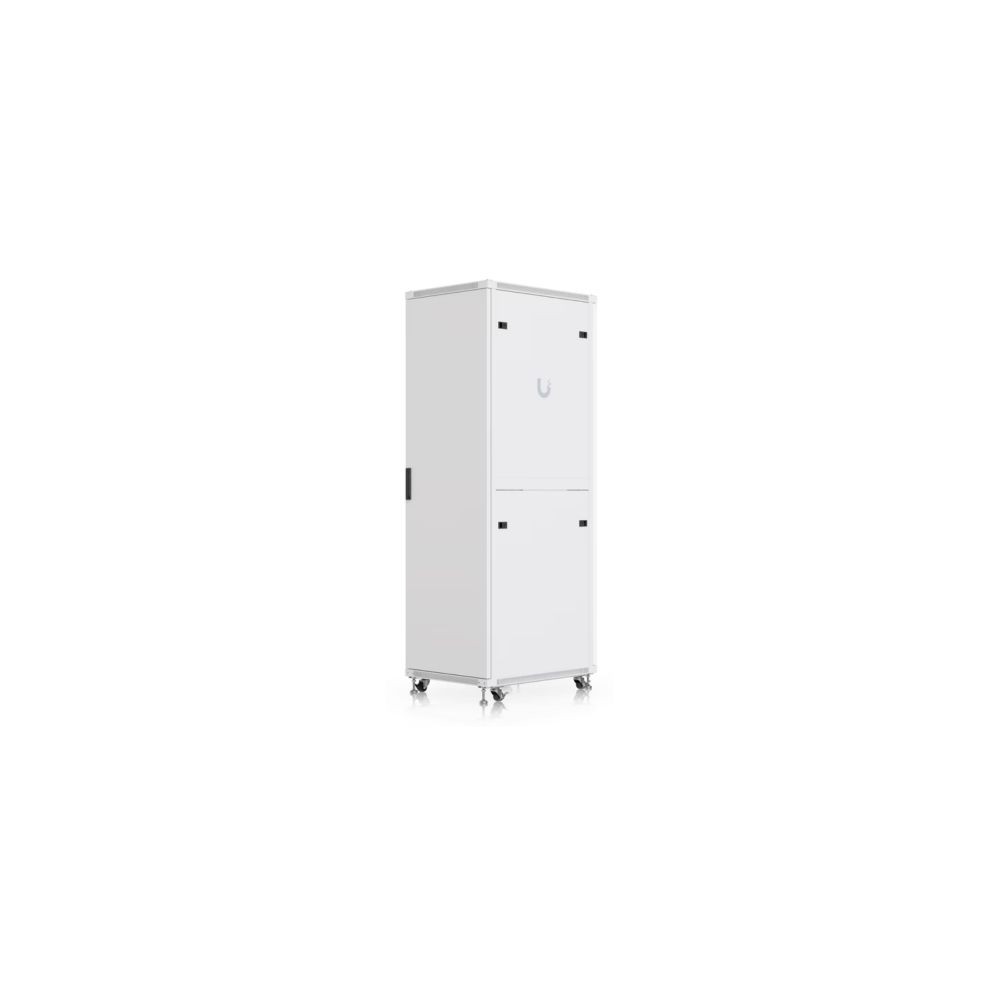

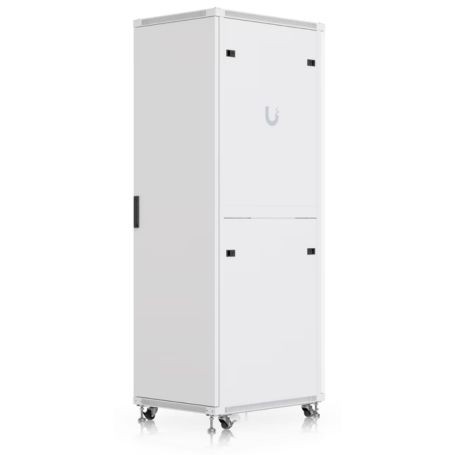

The Ubiquiti UACC-RACK-42U-800-G is a 42U, four-post enclosed floor-standing rack cabinet with an 800mm cabinet depth and tempered glass front door. It is designed for standard 19-inch rack-mount networking and infrastructure equipment where enclosed equipment protection, controlled cable routing, and physical access control are required.
The cabinet uses an SPCC steel enclosure with removable and lockable side panels, a solid rear door, adjustable mounting rails, lockable casters, leveling stands, and pre-installed AC fan modules. The tempered glass front door is reversible and configured for left-hand outswing by default.
Technical Information
The rack provides 42U of equipment space with square mounting holes and an adjustable mounting depth of 607.2mm by default, extending to 682.2mm with 15mm adjustment increments. The cabinet has a static load capacity of 800kg and a rolling load capacity of 320kg.
Two pre-installed 120 × 120 × 38mm AC fan units provide cabinet airflow. Grounding lugs, floor-anchor provisions, cabinet interconnect provisions, and four cable-entry openings support structured rack installation.
Compatibility
The UACC-RACK-42U-800-G accepts standard 19-inch rack-mount equipment. Its adjustable mounting depth is intended for equipment that fits within the specified 607.2mm default and 682.2mm maximum mounting dimensions.
The 800mm cabinet depth should be distinguished from the available 1000mm-depth Ubiquiti 42U rack variants when deeper server or infrastructure equipment requires additional rear clearance.
Key Features
- 42U four-post enclosed floor-standing rack cabinet
- Tempered glass reversible front door with solid rear door
- 607.2mm default and 682.2mm maximum adjustable mounting depth
- 800kg static and 320kg rolling load capacity
- Two pre-installed 120 × 120 × 38mm AC fan modules
Applications
The UACC-RACK-42U-800-G is suited to network rooms, equipment rooms, data-center infrastructure, enterprise LAN deployments, and other installations requiring enclosed 19-inch rack space. The 42U capacity provides vertical space for switches, gateways, patch panels, fiber equipment, power distribution equipment, and other compatible rack-mounted infrastructure.
DC Supplies Product Note
Verify equipment depth before installation. Although the cabinet is 800mm deep externally, the specified rack mounting depth is 607.2mm by default and 682.2mm maximum. Deeper equipment may require a deeper rack configuration rather than relying on the cabinet's overall external depth.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-RACK-42U-800-G |
| Product Type | 42U Rack Cabinet |
| Rack Height | 42U |
| Rack Type | 4-post enclosed cabinet |
| Cabinet Depth | 800mm |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | 607.2mm default; 682.2mm maximum |
| Adjustment Pitch | 15mm |
| Maximum Static Capacity | 800kg |
| Maximum Rolling Capacity | 320kg |
| Rack Dimensions with Casters | 600 × 800 × 2,050mm |
| Rack Dimensions without Casters | 600 × 800 × 1,966mm |
| Enclosure Material | SPCC steel |
| Door and Side Panel Thickness | 1.2mm |
| Main Body Thickness | 1mm |
| Mounting Post Thickness | 2mm |
| Front Door | Tempered glass; reversible; left-hand outswing by default |
| Rear Door | Solid; reversible; left-hand outswing by default |
| Side Panels | 4 solid, removable and lockable panels |
| Fan Modules | 2 pre-installed 120 × 120 × 38mm AC fans |
| Cable Entry Openings | 2 top and 2 bottom; each 335 × 52.5mm |
| Color | White |
| Finish | Powder coating |
| Weight | 92.4kg rack; 118.6kg packaged |
| Mounting | Floor stand |
| Casters | Lockable |
| Leveling Stands | Yes |
| Cabinet Interconnect | Yes |
| Floor Anchor | Yes |
| Grounding Lugs | Yes |
| Standards | CE; EIA/ECA-310-E; RoHS |
| NDAA Compliant | Yes |
FAQs
How much rack space does the UACC-RACK-42U-800-G provide?
The cabinet provides 42U of rack-mount equipment space.
What is the maximum equipment mounting depth?
The adjustable mounting depth is 607.2mm by default and 682.2mm at its maximum setting, with 15mm adjustment increments.
What type of front door does this rack use?
The UACC-RACK-42U-800-G uses a tempered glass front door that is reversible and configured for left-hand outswing by default.
What is the load capacity?
The cabinet supports up to 800kg static load and 320kg rolling load.
Does the rack include ventilation?
Yes. Two 120 × 120 × 38mm AC fan modules are pre-installed.
Are the side panels removable?
Yes. Four solid side panels are removable and lockable.
