Overview

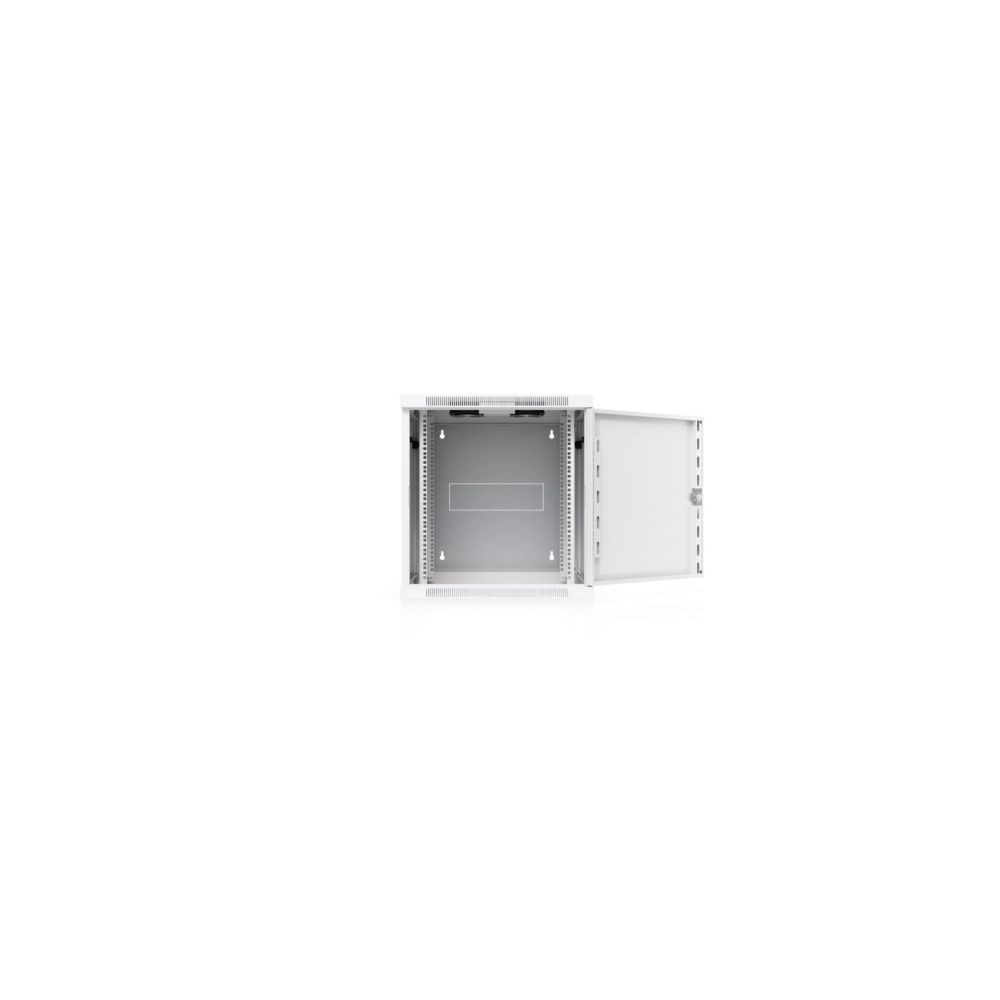

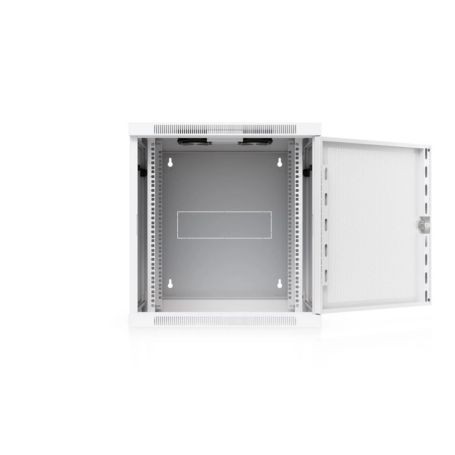

The Ubiquiti UACC-Rack-12U-Wall-SW-P is a 12U enclosed wall-mount rack cabinet designed for compact network equipment installations. It uses a four-post square-hole rack structure, a perforated reversible front door, a solid swing-out rear door, and removable lockable side panels.
The cabinet provides adjustable equipment mounting depth from 434mm to 559mm, with 25mm adjustment increments. Its steel construction supports up to 80kg of installed equipment.
Rack Construction
The cabinet is constructed from SPCC steel with 1.2mm door and side panels, a 1.2mm main body, and 2mm rack posts. The white powder-coated finish provides the enclosure with a consistent surface treatment for equipment-room and wall-mounted network installations.
Equipment Mounting
The four-post cabinet provides 12U of rack space and uses square mounting holes. The mounting depth can be adjusted from a default 434mm up to 559mm, with 25mm adjustment increments, allowing the rack position to be matched to equipment depth.
Ventilation and Cable Access
Two pre-installed 120 x 120 x 38mm AC fan units provide active cabinet ventilation. The enclosure also includes cable-entry openings through the rear wall, top, and bottom, together with 35mm top and bottom knockouts for installation flexibility.
Access and Security
The perforated front door is configured for left-hand outward swing and can be reversed. A solid rear swing-out door provides access from the back of the cabinet, while both side panels are removable and lockable. The cabinet includes a front-door lock, rear swing-out door lock, four side-panel locks, and two keys.
Key Features
- 12U four-post enclosed wall-mount rack cabinet
- Perforated reversible front door for ventilation and equipment access
- Adjustable mounting depth from 434mm to 559mm
- Two pre-installed 120 x 120 x 38mm AC fan units
- 80kg maximum equipment load capacity
Applications
- Wall-mounted network equipment installations
- Small business and branch network cabinets
- Compact UniFi switching, gateway, and accessory deployments
- Structured networking installations requiring enclosed 12U rack space
- Installations where front, rear, and side equipment access is required
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Rack-12U-Wall-SW-P |
|---|
| Product Type | 12U Wall-Mount Rack Cabinet |
|---|
| Rack Height | 12U |
|---|
| Rack Type | 4-post, enclosed cabinet |
|---|
| Mounting Type | Wall mount |
|---|
| Mounting Hole Type | Square |
|---|
| Default Mounting Depth | 434mm (17.1") |
|---|
| Maximum Mounting Depth | 559mm (22") |
|---|
| Depth Adjustment | 25mm (1") increments |
|---|
| Maximum Weight Capacity | 80kg (176lb) |
|---|
| Front Door | Perforated, swing-out, reversible |
|---|
| Rear Door | Solid, swing-out |
|---|
| Side Panels | 2 removable, solid, lockable |
|---|
| Fan Modules | 2 pre-installed AC fans |
|---|
| Fan Size | 120 x 120 x 38mm |
|---|
| Acoustic Noise | ≤50dB(A) sound pressure level |
|---|
| Cable Entry | Rear wall, top, and bottom openings |
|---|
| Top Cable Opening | 235 x 62mm (9.3 x 2.4") |
|---|
| Bottom Cable Opening | 235 x 62mm (9.3 x 2.4") |
|---|
| Rear Wall Cable Opening | 350 x 100mm (13.8 x 3.9") |
|---|
| Knockouts | 4 top and 4 bottom, 35mm (1.4") |
|---|
| Enclosure Material | SPCC steel |
|---|
| Door / Side Panel Thickness | 1.2mm (0.05") |
|---|
| Main Body Thickness | 1.2mm (0.05") |
|---|
| Rack Post Thickness | 2mm (0.08") |
|---|
| Color | White |
|---|
| Finish | Powder coating |
|---|
| Grounding | Grounding lugs |
|---|
| Rack Dimensions | 600 x 700 x 639mm (23.6 x 27.6 x 25.2") |
|---|
| Rack Weight | 25.8kg (56.9lb) |
|---|
| Packaging Dimensions | 725 x 840 x 735mm (28.5 x 33.1 x 28.9") |
|---|
| Packaging Weight | 31.8kg (70.1lb) |
|---|
| Standards | CE, EIA/ECA-310-E, RoHS |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
How many rack units does the UACC-Rack-12U-Wall-SW-P provide?
The cabinet provides 12U of rack space in a four-post enclosed configuration.
What is the maximum equipment depth?
The adjustable mounting depth reaches 559mm (22"), with a default mounting depth of 434mm (17.1") and 25mm adjustment increments.
Does the cabinet have ventilation?
Yes. Two 120 x 120 x 38mm AC fan units are pre-installed in the cabinet.
What type of front door does it have?
The front door is perforated, swings outward, and can be reversed from its default left-hand configuration.
Are the side panels removable?
Yes. Both solid side panels are removable and lockable.
