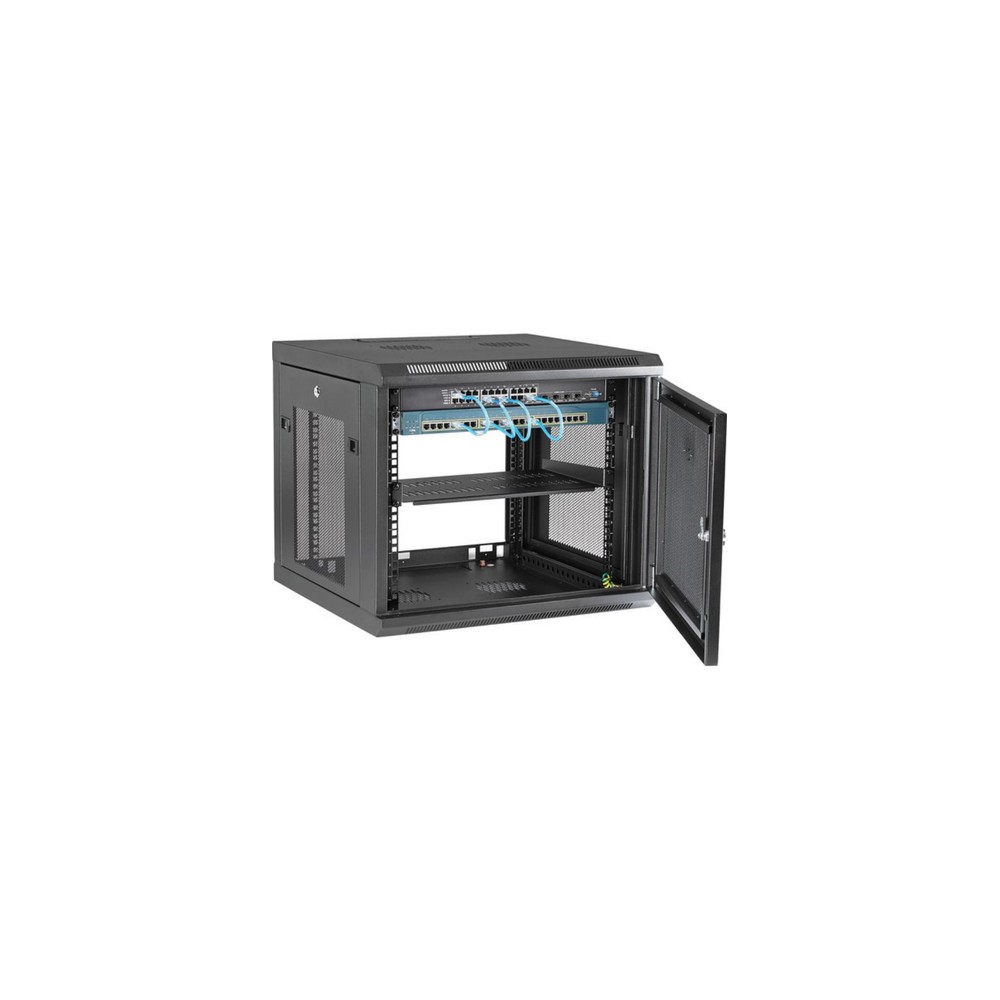

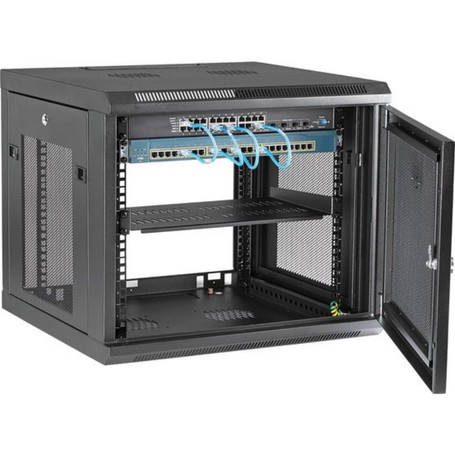

The StarTech RK920WALM is a specialized 9U wall-mount server cabinet designed for space-constrained environments such as hallways, retail back offices, or classrooms. Unlike traditional cabinets where equipment sticks out perpendicular to the wall, this enclosure features a "patch-flush" or vertical mounting orientation. This allows equipment to be mounted parallel to the wall, resulting in a significantly reduced profile that minimizes obstruction in high-traffic areas.
The cabinet supports up to 9U of total rack space: 3U for full-depth equipment (up to 30 inches) and 6U for shallower networking gear like patch panels or switches. Constructed from heavy-duty cold-rolled steel, the RK920WALM features a lockable front door and side panels to prevent unauthorized access to critical infrastructure. The vented design facilitates passive cooling, though it also includes mounting points for optional 120mm fans if active thermal management is required.
This enclosure is an ideal solution for edge computing and localized networking where floor space is unavailable. It ships fully assembled for rapid deployment and includes a 1U shelf and a roll of hook-and-loop cable tie for immediate organization.
Vertical mounting design reduces profile to just 9.5 inches from the wall.
Supports 3U of deep equipment (30") and 6U of shallow gear (up to 3").
Lockable steel door and side panels ensure physical hardware security.
Arrives fully assembled with 1U shelf and mounting hardware included.
Top and bottom cable entry ports with brush strips prevent dust ingress.
| Specification | Details |
| Brand | StarTech |
| Part Number | RK920WALM |
| Product Type | Wall Mount Network Cabinet |
| Rack Units | 9U (3U Vertical + 6U Horizontal/Shallow) |
| Mounting Orientation | Vertical (Low Profile) |
| Max Mounting Depth | 30 in (762 mm) |
| Weight Capacity | 200 lb (90.7 kg) |
| Material | Cold-Rolled Steel |
| Security | Key Lock (Front and Sides) |
| Mounting Hole Type | Square (Caged Nut) |
| Standards | EIA/ECA-310-E |
| Color | Black |
