Detailed Specifications

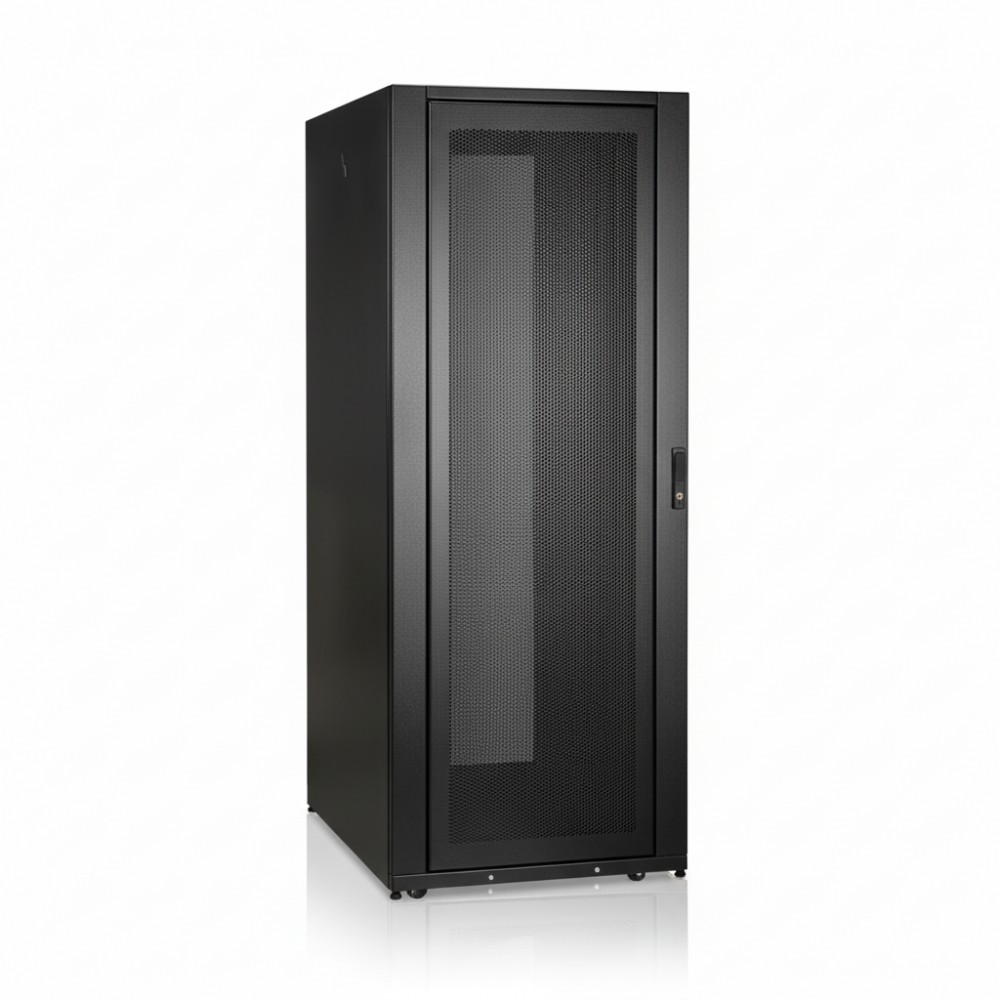

Eaton SR42UBWDVRT - Wide Standard-Depth Rack Cabinet
Overview
The SR42UBWDVRT is a 42U floor-standing rack enclosure built for IT infrastructure environments, intended for engineers and deployment teams needing extra width and depth for servers, UPS systems, and networking gear. It offers a 750 mm (30 in) width and ~1050 mm (42 in) depth, enabling more cabling space and better airflow than standard footprints. It is suited for data centres, server rooms, and dense edge deployments. The unit integrates with the brand's SmartRack range and supports vertical cable management pre-installed for improved organization.
Key Features
750 mm wide cabinet (30 in) and ~1050 mm deep layout
Supports up to 3,500 lb (1,588 kg) stationary equipment load
Two pre-installed 6-ft vertical cable managers (SRCABLEVRT3)
Locking, removable, reversible front/rear doors and side panels
Technical Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | SR42UBWDVRT |
| Product Type | Floor-standing rack enclosure cabinet |
| Rack Height | 42U |
| Cabinet Width | 750 mm (30 in) |
| Cabinet Depth | ~1,050 mm (42 in) |
| Maximum Device Depth | 940 mm (37 in) |
| Stationary Load Capacity | 3,500 lb (1,588 kg) |
| Rolling Load Capacity | 2,250 lb (1,020.6 kg) |
| Material / Finish | Heavy-duty steel with textured black powder coat |
| Ventilation | Vented top panel + >65% perforation doors |
| Compliance | UL 60950-1, RoHS, CE, PCI DSS-compliant |
