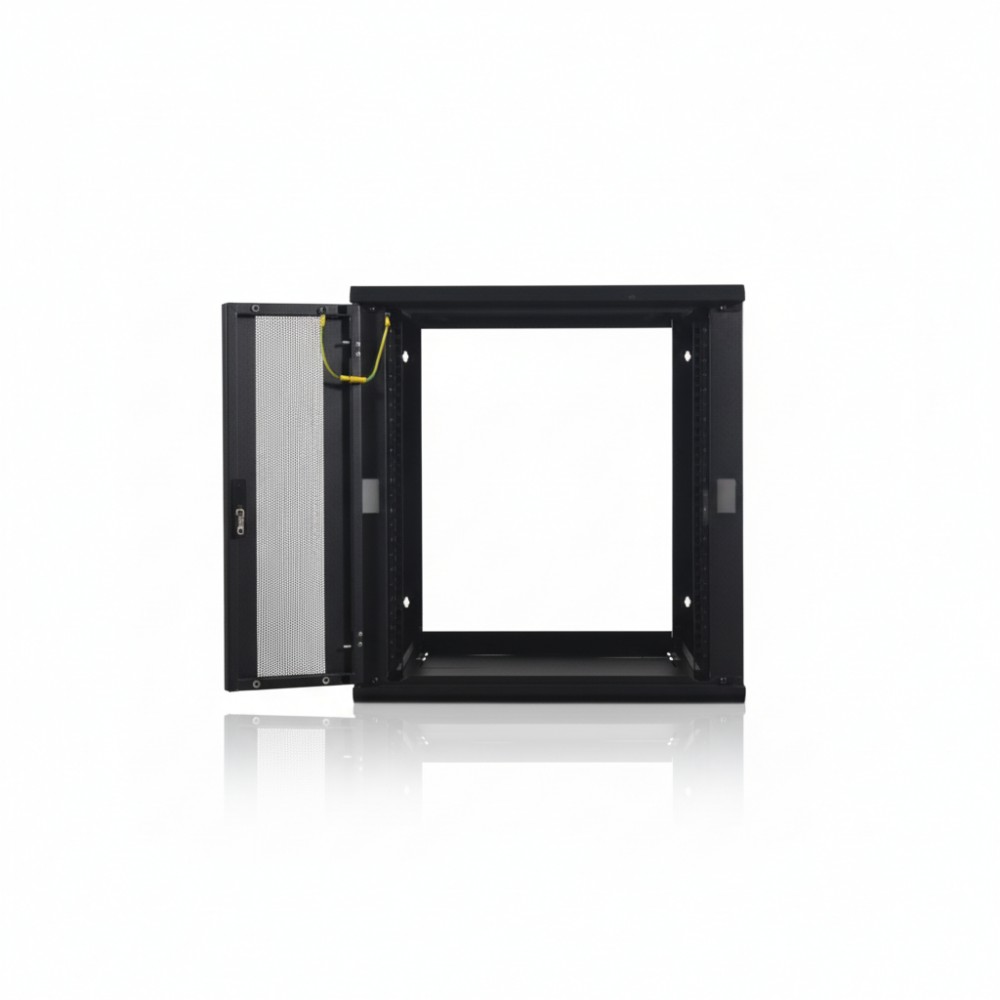

APC AR112 NetShelter 12U Wallmount Rack Cabinet Single Hinged Server Depth Unassembled View larger

APC AR112 NetShelter 12U Wallmount Rack Cabinet Single Hinged Server Depth Unassembled

AR112

New

In Stock

The APC AR112 is a 12U wall-mount rack cabinet with adjustable 16.8″–20.8″ depth.
×




$439.00

Detailed Specifications

APC AR112 12U Wall-Mount Rack Cabinet

Overview

The APC AR112 is a 12U wall-mount rack enclosure in the NetShelter WX/Wallbox series, used in edge, branch, and telecom environments where floor space is constrained. It supports standard 19-inch EIA-310 rack equipment like network switches, patch panels, and small servers. The depth is adjustable (16.8″ to 20.8″) to accommodate varying device depths, and the cabinet includes knockouts for cable entry. Its single-hinged door is reversible to suit installation layouts. With a 200 lb (≈ 90.7 kg) load rating, the AR112 provides reliable support for modest equipment loads in secure, ventilated enclosures.

Key Features

  • 12U wall-mount form factor

  • Adjustable mounting depth (16.8″–20.8″)

  • Reversible single-hinge front door

  • 200 lb static load capacity

  • Cable knockouts top/bottom

  • Ships unassembled (flat pack)

Technical Specifications

SpecificationValue
Brand APC (Schneider Electric)
Part Number AR112
Product Type 12U Wall-Mount Rack Cabinet
Rack Units 12U
Rack Width 19 inch (482.6 mm)
Depth Range (mounting) 16.8″ to 20.8″ (426.7 mm to 528 mm)
Static Load Capacity 200 lb (≈ 90.7 kg)
Net Weight (cabinet) 40.30 lb (≈ 18.3 kg)
Height 24.41″ (≈ 620 mm)
Width (cabinet body) 23.58″ (≈ 599 mm)
Depth (cabinet body) 23.58″ (≈ 599 mm)
Door Type Single-hinged, reversible
Cable Entry / Knockouts Top and bottom knockouts provided
Warranty 5 years repair or replace
Ship Condition Flat pack unassembled
