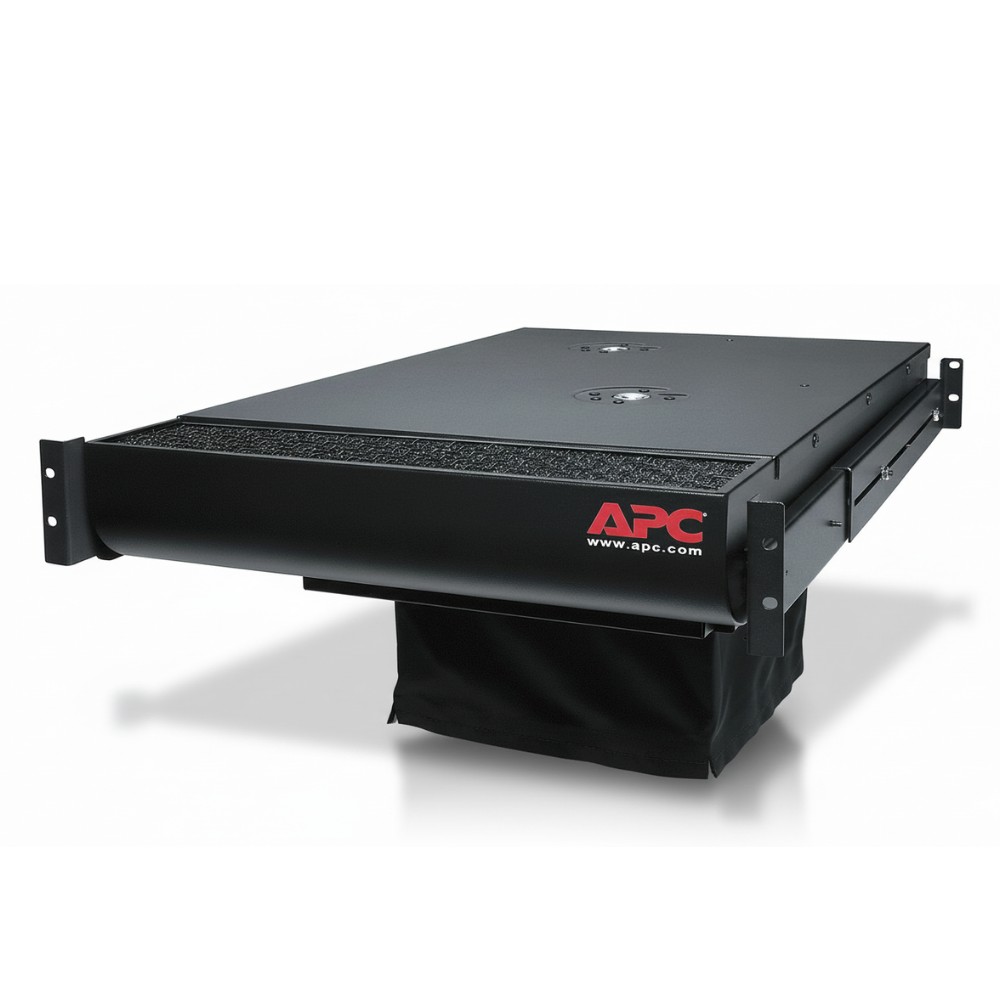

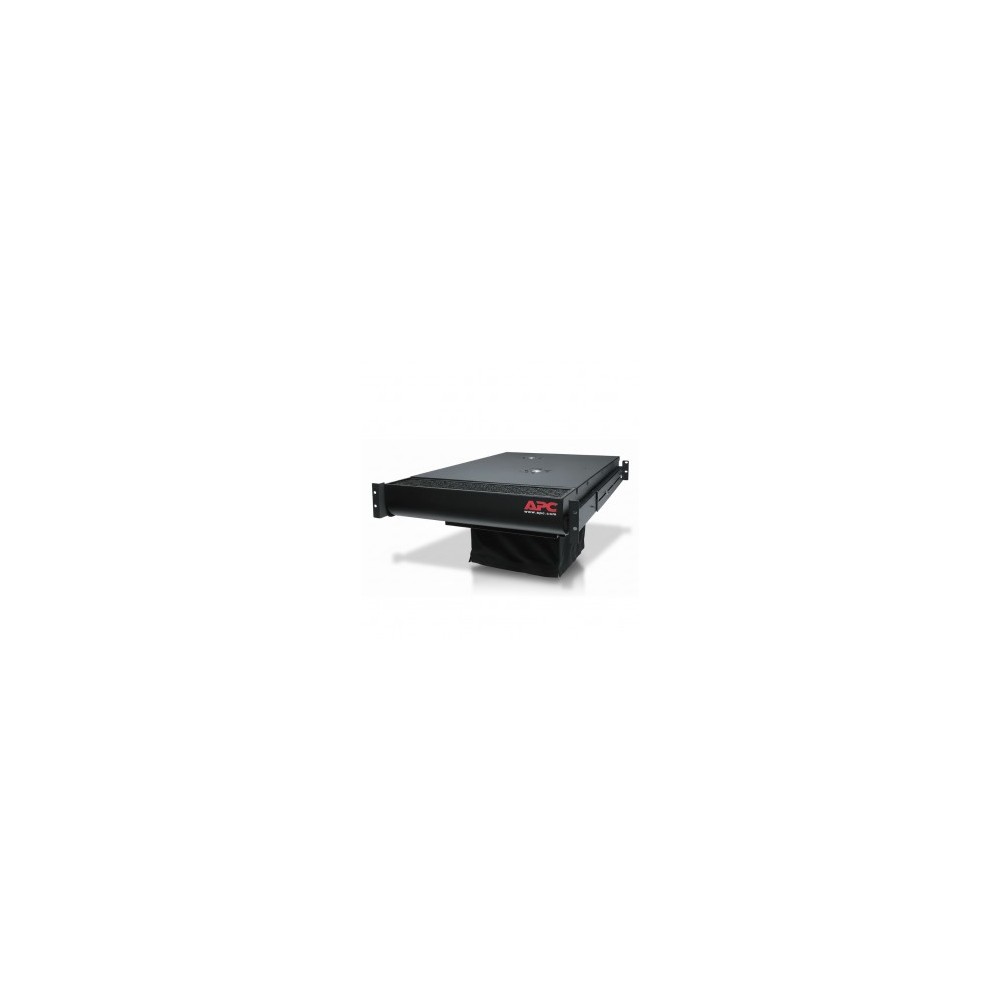

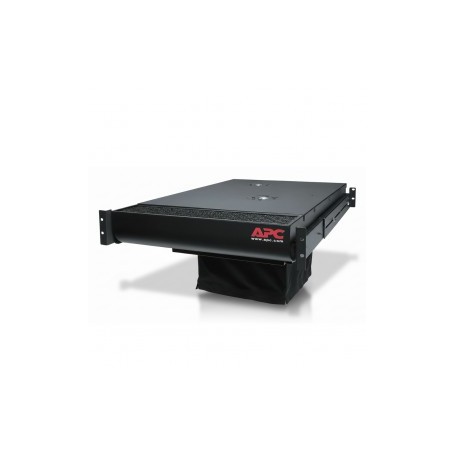

APC ACF001 NetworkAIR 2U Rack-Mount Air Distribution Unit - 115V View larger

APC ACF001 NetworkAIR 2U Rack-Mount Air Distribution Unit - 115V

New

APC ACF001: 2U rackmount air distribution unit with 503 CFM airflow,
×




  • New

Detailed Specifications

APC ACF001 – 2U Rack Air Distribution Unit

Overview

The APC ACF001 is a 2U rackmount air distribution unit designed to enhance cooling efficiency in server racks, particularly in raised floor environments. It draws conditioned air directly from the floor and delivers it into the rack, preventing the mixing of cool air with warmer room air. This targeted airflow minimizes temperature differences within the enclosure and prevents hot exhaust air from recirculating to the equipment inlets.With a maximum airflow of 503 CFM and a power consumption of 240W, the ACF001 is suitable for rack enclosures with loads ranging from 1.5kW to 3.5kW. Its 120V 60Hz operation ensures compatibility with standard power supplies. The unit is equipped with IEC 60320 C13 connectors and is designed for easy installation in 19-inch EIA-310-D compliant racks.This air distribution unit is an essential component for maintaining optimal operating temperatures in high-density server environments, ensuring equipment longevity and reliability.

Key Features:

  • 503 CFM airflow for effective cooling

  • 240W power consumption for energy efficiency

  • Compatible with 19-inch EIA-310-D racks

  • IEC 60320 C13 connectors for power input

Technical Specifications:

SpecificationDetail
Brand APC
Part Number ACF001
Product Type Rackmount Air Distribution Unit
Key Specification 1 503 CFM airflow
Key Specification 2 240W power consumption
Key Specification 3 19-inch EIA-310-D rack compatibility
Power Input IEC 60320 C13
Voltage 120V 60Hz
Dimensions 2U height, 19-inch width
Warranty 2-year repair or replace
