Overview

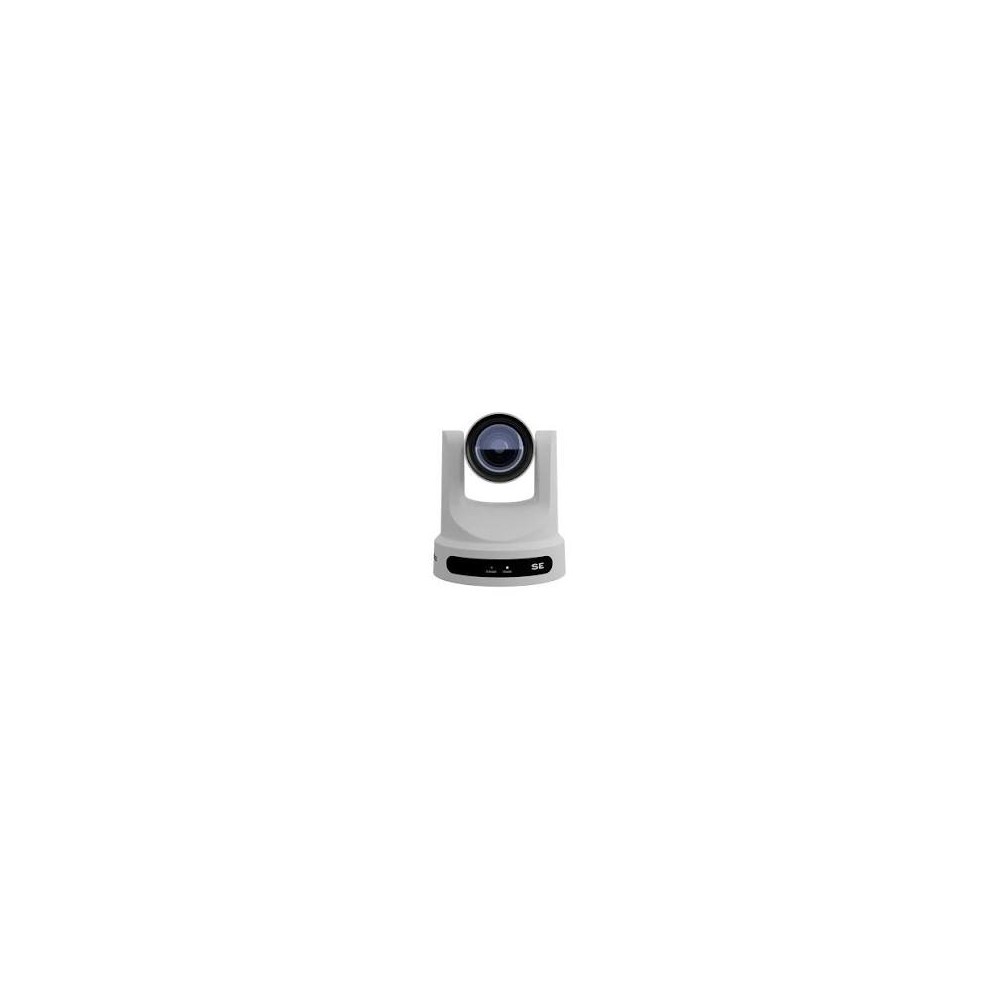

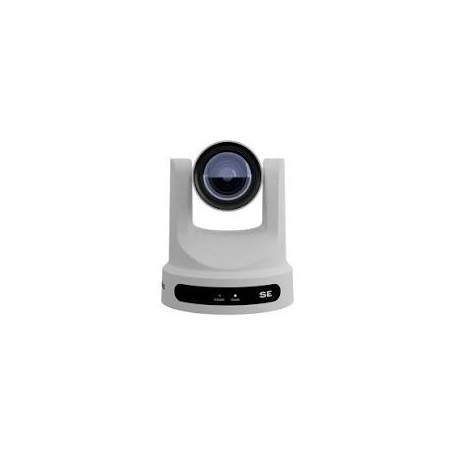

The PTZOptics Move SE PT12X-SE-WH-G3 is a third-generation professional pan-tilt-zoom (PTZ) camera designed for live streaming, video conferencing, lecture capture, houses of worship, and professional video production. Its white finish suits modern meeting rooms, studios, classrooms, and presentation spaces.
The camera combines Full HD 1080p video at up to 60 frames per second with a 12× optical zoom lens and a wide 72.5° horizontal field of view. Video-based auto-tracking helps follow a presenter automatically, while simultaneous video outputs support flexible production workflows. HDMI, 3G-SDI, USB 3.0 Type-C, and IP connectivity allow integration with compatible video production systems.
Key Features
- Full HD video output up to 1920 × 1080 at 60fps.
- 12× optical zoom with a 4.1–49.2mm focal length.
- Video-based auto-tracking for presenter-focused recording.
- White camera finish for professional installation environments.
- Simultaneous HDMI, 3G-SDI, USB 3.0 Type-C, and IP video outputs.
- NDI|HX capability available through supported upgrade options.
- Supports RTMP, RTMPS, RTSP, SRT, and other supported streaming protocols.
- Pan range of ±170° and tilt range from -30° to +90°.
- Up to 255 preset camera positions.
- RS-232, RS-485, IP, and infrared remote control options.
- Supports 12V DC power or compatible PoE power.
- 3.5mm audio line input for external audio integration.
Technical Specifications
| Specification | Details |
|---|
| Brand | PTZOptics |
| Part Number / MPN | PT12X-SE-WH-G3 |
| Product Type | Professional PTZ Video Camera |
| Product Family | Move SE |
| Generation | Third Generation (G3) |
| Color | White |
| Image Sensor | 1/2.8-inch Sony CMOS |
| Effective Pixels | 2.07 megapixels |
| Maximum Resolution | 1920 × 1080 Full HD |
| Maximum Frame Rate | 60fps |
| Optical Zoom | 12× |
| Focal Length | 4.1–49.2mm |
| Aperture | F1.8–F2.68 |
| Horizontal Field of View | 72.5° wide to 6.9° telephoto |
| Vertical Field of View | 44.8° wide to 3.9° telephoto |
| Minimum Illumination | 0.5 lux at F1.8, AGC enabled |
| Auto-Tracking | Video-based auto-tracking |
| Maximum Tracking Distance | Up to 60 feet (20m), depending on conditions |
| Pan Range | ±170° |
| Tilt Range | -30° to +90° |
| Preset Positions | Up to 255 |
| Video Outputs | HDMI, 3G-SDI, USB 3.0 Type-C, IP |
| Network Streaming | RTMP, RTMPS, RTSP, SRT and supported IP protocols |
| NDI Support | NDI|HX upgradeable; verify license or upgrade requirements |
| Video Compression | H.264, H.265, MJPEG, depending on output and mode |
| Audio Input | 3.5mm line-level input |
| Control Interfaces | RS-232, RS-485, IP, IR remote |
| Power Options | 12V DC or compatible PoE |
| Operating Environment | Indoor |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Dimensions (L × W × H) | 6.7 × 5.6 × 6.5 inches; approximately 7.88 inches maximum height when tilted up |
| Weight | 3.2 lbs |
Applications
- Live streaming and multi-camera video production.
- Corporate conference rooms and hybrid meetings.
- Classrooms, lecture halls, and distance learning.
- Houses of worship and event venues.
- Presenter tracking for training sessions and presentations.
- Broadcast and production workflows using compatible SDI, HDMI, USB, or IP equipment.
Compatibility and Installation
The PT12X-SE-WH-G3 can connect to compatible production computers, video switchers, capture devices, displays, and IP streaming systems. HDMI and 3G-SDI support conventional video workflows, while USB 3.0 Type-C supports compatible computer-based production. Network streaming and remote control require appropriate network configuration and compatible software or controllers.
The camera supports 12V DC power and compatible PoE operation. Verify the power supply or PoE standard supported by your installation before connecting it. Wall, ceiling, or pole mounting may require compatible mounting accessories, which should be checked separately. NDI|HX functionality may require a separate license or upgrade depending on the supplied configuration.
Frequently Asked Questions
What resolution does this camera support?
It supports Full HD 1920 × 1080 video at frame rates up to 60fps.
Does it have optical zoom?
Yes. It features a 12× optical zoom lens with a 4.1–49.2mm focal length.
Can it automatically track a presenter?
Yes. The camera supports video-based auto-tracking designed to follow a presenter within its supported tracking range and operating conditions.
Which video connections are available?
It provides HDMI, 3G-SDI, USB 3.0 Type-C, and IP video output options.
Does the camera support NDI?
NDI|HX capability is upgradeable. Confirm whether the required license or upgrade is included with the specific unit.
Is this the white model?
Yes. The “WH” in PT12X-SE-WH-G3 identifies the white version of the Move SE 12X camera.
DC Supplies Product Note
DC Supplies recommends verifying the exact MPN, video output requirements, network streaming compatibility, power method, and mounting accessories before ordering. NDI functionality and included accessories may depend on the supplied configuration.
