Overview

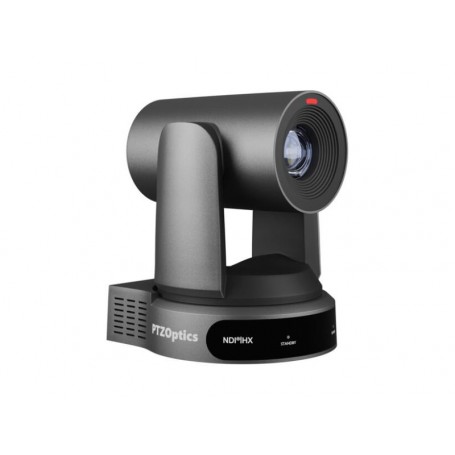

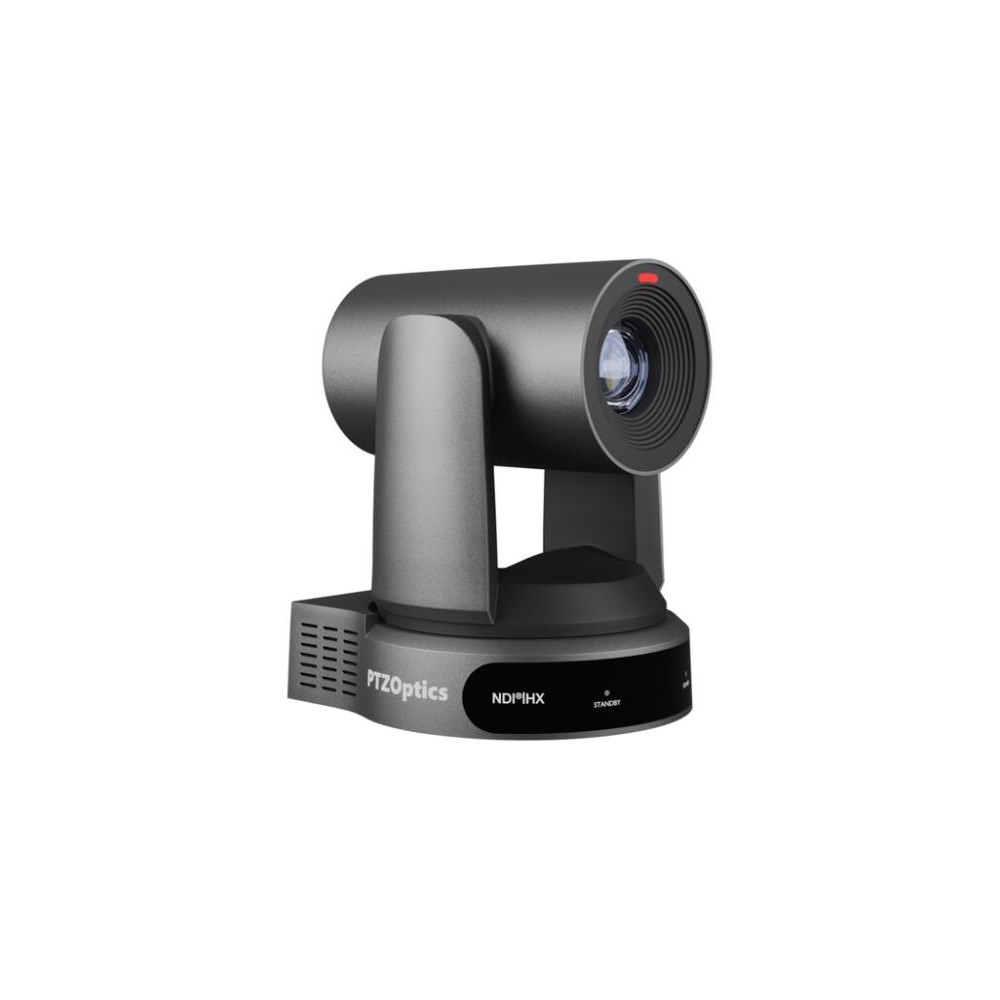

The PTZOptics PT30X-4K-GY-G3 Move 4K is a professional gray pan-tilt-zoom camera designed for live production, conferencing, education, houses of worship, and streaming applications. It captures Ultra HD video at up to 4K 60 frames per second over HDMI and supports video-based auto-tracking for presenter-focused production. Its 30x optical zoom, multiple video outputs, network streaming capabilities, and remote-control interfaces make it suitable for integrated AV environments.
Key Features
- 4K UHD Video: Supports resolutions up to 3840 × 2160 at 60 fps over HDMI.
- 30x Optical Zoom: Captures close-up details across large rooms and venues.
- Video-Based Auto-Tracking: Helps keep a presenter or subject in frame during supported tracking workflows.
- Multiple Video Outputs: HDMI 2.0, 3G-SDI, USB 2.0, and IP video output.
- NDI|HX Support: Integrates with compatible networked production systems.
- Low-Light Performance: Uses a 1/1.8-inch CMOS image sensor and 3D digital noise reduction.
- Remote Control: Supports compatible IR, IP, RS-232, RS-485, and USB control methods.
- Power Options: Supports 12V DC and compatible PoE+ installations.
- Built-In Tally Light: Provides a visual indication of supported preview and on-air states.
- Gray Finish: Model GY identifies the gray version of the Move 4K camera.
Technical Specifications
| Specification | Details |
|---|
| Brand | PTZOptics |
| Part Number / MPN | PT30X-4K-GY-G3 |
| Product Type | Professional PTZ Network Camera |
| Product Family | Move 4K |
| Color | Gray |
| Image Sensor | 1/1.8-inch Sony CMOS |
| Effective Resolution | 8.42 megapixels |
| Maximum HDMI Resolution | 3840 × 2160 at up to 60 fps |
| Maximum SDI Resolution | 1920 × 1080 at up to 60 fps |
| Optical Zoom | 30x |
| Lens Focal Length | 7.1–210 mm |
| Horizontal Field of View | 2.5°–59.2° |
| Vertical Field of View | 1.4°–34.6° |
| Auto-Tracking | Video-based tracking supported |
| Video Outputs | HDMI 2.0, 3G-SDI, USB 2.0, IP |
| Network Interface | 1 × Gigabit Ethernet RJ-45 |
| Streaming and Compression | NDI|HX, RTSP, RTMP/RTMPS, SRT, H.264, H.265, MJPEG; feature availability depends on configuration |
| Control Interfaces | IR, USB, IP, RS-232, RS-485 |
| Audio Input | 3.5 mm line-level input |
| Power Input | 12V DC or compatible PoE+ |
| Maximum Power Consumption | Approximately 12W |
| Dimensions (W × D × H) | 6.69 × 7.12 × 8.98 inches |
| Weight | 4.41 lbs |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
Applications
- Video Conferencing: Capture presenters and participants in meeting rooms and auditoriums.
- Live Streaming: Provide remotely controlled camera shots for live online broadcasts.
- Education: Record lectures and follow instructors in classrooms and lecture halls.
- Houses of Worship: Capture speakers, stages, and services with optical zoom and remote operation.
- Corporate AV: Integrate with compatible video switchers, streaming encoders, and network production systems.
- Live Events: Deliver flexible camera positioning for presentations and productions.
Installation and Compatibility
Install the camera using a suitable mounting solution and connect the desired video output to compatible production or display equipment. For network streaming and IP control, connect the camera to a compatible Ethernet network and configure the required protocols and credentials. PoE+ requires compatible network equipment; otherwise, use the specified 12V DC power input. Confirm that your video workflow supports the selected output resolution and frame rate. HDMI and SDI output capabilities differ, and simultaneous output behavior depends on the camera's operating configuration.
Frequently Asked Questions
1. Does this camera support 4K at 60 fps?
Yes. It supports up to 3840 × 2160 at 60 fps over HDMI.
2. What does 30x optical zoom mean?
The lens provides 30x optical magnification, allowing remote operators to frame distant subjects without relying solely on digital zoom.
3. Does the camera support auto-tracking?
Yes. It supports video-based auto-tracking. Audio-based auto-tracking is not supported.
4. Can it stream over a network?
Yes. It supports IP video and compatible network streaming protocols, including NDI|HX. Network setup and software compatibility affect the available workflow.
5. How can the camera be powered?
It supports 12V DC power and compatible PoE+ power over Ethernet.
DC Supplies Product Note
Before ordering, confirm that the gray GY model, zoom level, mounting requirements, power method, video interfaces, and network protocols meet your project needs. Check the manufacturer's current documentation for firmware-specific features and integration requirements.
