Detailed Specifications

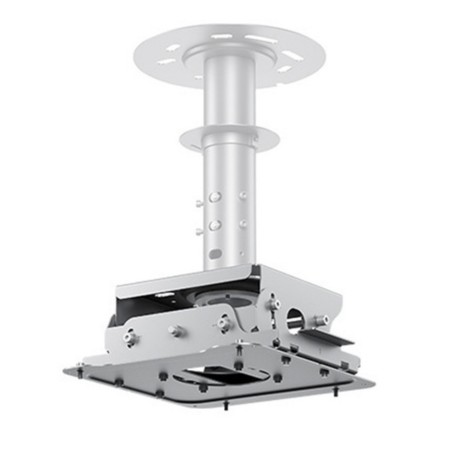

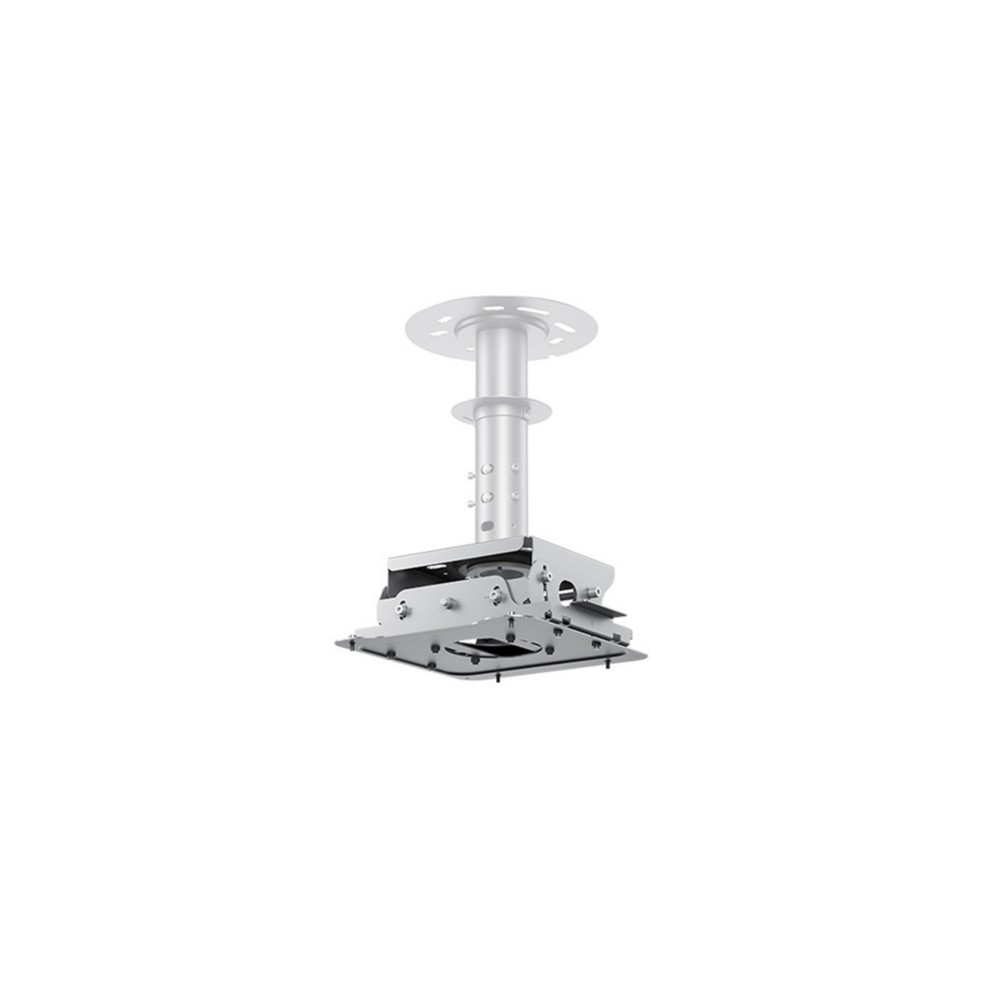

Epson V12HA54010 ELPMB67 Ceiling Mount
Overview :
The Epson V12HA54010 (ELPMB67) is a professional-grade adjustable ceiling mount system designed for installing Epson large-venue and Pro Series projectors in commercial and enterprise environments.
It is used in conference rooms, auditoriums, training centers, and fixed AV installations where precise projector alignment and structural mounting flexibility are required.
The mount supports 360° rotation, vertical and horizontal tilt adjustment, and forward/back sliding adjustment, allowing fine positioning even in complex ceiling or truss setups. It also supports heavy-duty projectors up to approximately 40 kg (88 lb).
This product is not a projector itself; it is an installation accessory. It is not suitable for lightweight consumer projectors unless they are within supported compatibility ranges.
Key Features :
- Heavy-duty ceiling mount supports up to 88 lb projector loads
- Full 360° rotation with multi-axis tilt adjustment flexibility
- Forward/back slide supports precise lens alignment correction
- Designed for Pro Series and large venue Epson projectors
- Supports truss mounting and high-ceiling installation setups
Specifications :
| Specification | Details |
|---|
| Brand | Epson |
| Part Number | V12HA54010 |
| Product Type | Projector Ceiling Mount |
| Model | ELPMB67 |
| Supported Load Capacity | Up to 88 lb (40 kg) |
| Adjustment Range | Vertical +5° to -15° |
| Horizontal Tilt | +5° to -5° |
| Rotation | 360° directional mounting |
| Slide Adjustment | Forward/back adjustment ~36 mm |
| Compatible Series | Epson EB-PU Series (selected models) |
| Installation Type | Ceiling / truss mounting |
| Material | Heavy-duty steel construction |
