Detailed Specifications
816822-S01 Overview

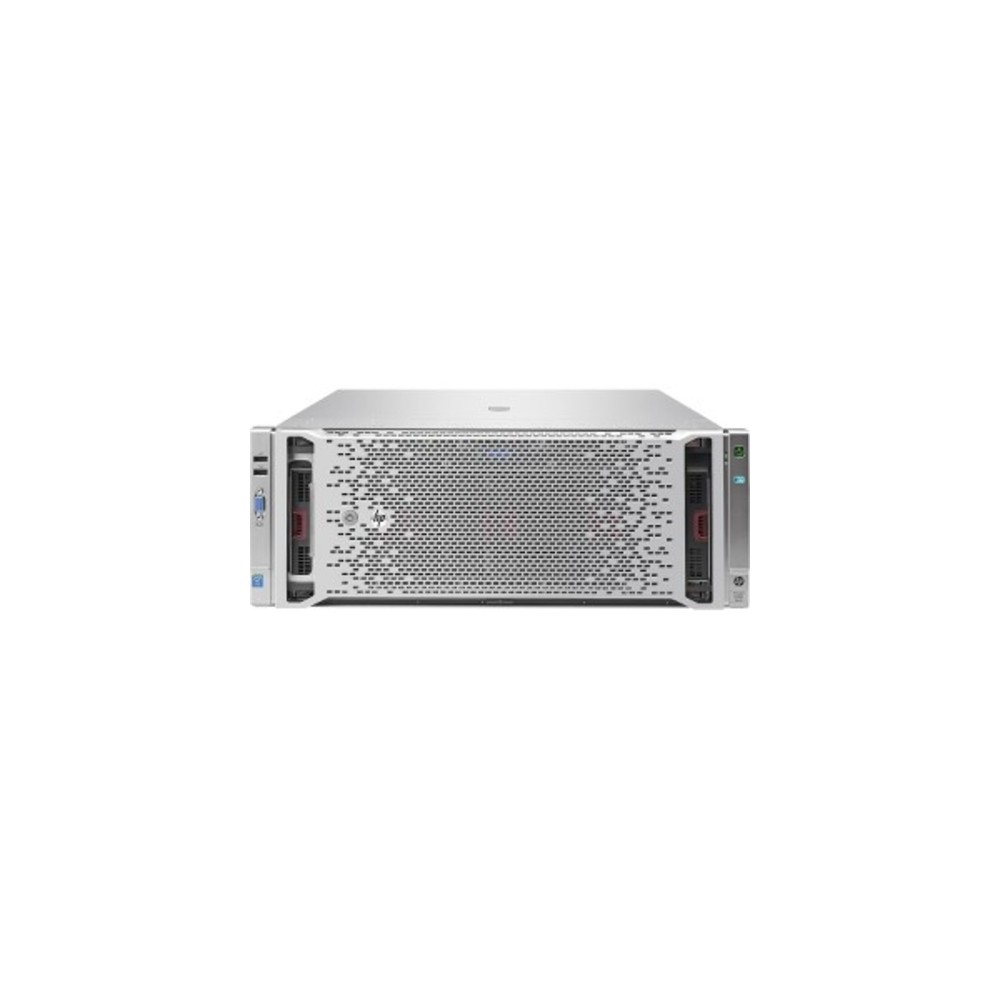

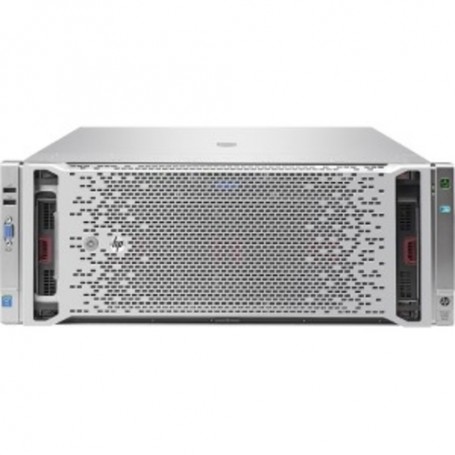

HP DL580 816822-S01 GEN9 Intel Xeon E7-8860 v4 Octadeca-core (18 Core) E7-8860V4 2P 128GB SRV
Do your business demand fast insights, support for an increased number of users, and uncompromised availability? The HP ProLiant 816822-S01 DL580 Gen9 Server is the HP four-socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability, availability, and compelling consolidation and virtualization efficiencies. Supporting Intel® Xeon® E7-4800/8800 v3 processors, the DL580 816822-S01 Gen9 Server offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen 3.0 slots), and 12 Gb/s of SAS speeds.
The DL580 816822-S01 Gen9 Server has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.
Whether needed for highly virtualized or cloud-based deployments, with intelligence and simplicity of automated management with HP OneView and HP iLO 4 your business can achieve agile and lower-cost infrastructure management.
Features 816822-S01
Commanding Performance and Scalability
The HP ProLiant 816822-S01 DL580 Gen9 Server provides up to 39% processor performance and 20% more cores with Intel Xeon E7-4800/8800 v3 processors than the previous generation.
HP 816822-S01 SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 6 TB DDR4 max capacity (96 DIMM slots) with speeds up to 1866MHz with up to 16% performance gain. Ideal for large-scale in-memory computing and virtualization.
Comes standard with 9 FL/FH PCIe 3.0 slots for GPGPUs and a choice of HP FlexibleLOM or PCIe standup 1GbE, 10GbE, or InfiniBand Adapters providing you the flexibility of networking bandwidth and fabric so you can adapt and grow to change business needs It.
Faster access to your data with the redesigned HP Flexible Smart Array and HP Smart SAS HBA Controllers allow you the flexibility to choose the optimal 12 Gb/s SAS controller most suited to your environment. Additional support for HP NVMe Mixed Uses and Write Intensive PCIe Workload Accelerators.
816822-S01 Rock-solid Availability and Reliability
The HP ProLiant 816822-S01 DL580 Gen9 Server provides increased system availability and less need for service with advanced error recovery, error diagnosis, and built-in redundancy; all features of the DL580 Server Comprehensive Fault Management and Diagnostics.
Improved reliability and data protection with HP Smart Array Controllers featuring HP Secure Encryption and Advanced Data Mirroring, and HP SmartDrive technology.
Increased security with four new levels of Secure Boot with Unified Extensible Firmware Interface (UEFI) mode.
HP Proactive 816822-S01 Care Services helps customers prevent problems before they occur by integrating uptime and productivity into a personalized, simplified support experience.
816822-S01 Compelling Agility and Efficiencies for Scale-up Environments
The HP ProLiant 816822-S01 DL580 Gen9 Server supports improved ambient temperature ASHRAE A3 and A4 standards helping to reduce your cooling expenses.
High-efficiency redundant HP Common Slot Power Supplies up 4x 1500W provide up to 94% efficiency (Platinum), infrastructure power efficiencies with -48VDC input voltages, and support for HP Power Discovery Services.
Customer-inspired and easily accessible features include a front access processor/memory drawer for ease of serviceability, hot-pluggable fans, and drives, optional SID for the health and monitoring of components, and Quick Reference code for quick access to product information.
Basic 816822-S01 |
Brand Name: |
HPE 816822-S01 |
Environmentally Friendly: |
Yes |
Form Factor: |
Rack 816822-S01 |
Maximum Memory: |
6 TB |
Number of Processors Installed: |
2 |
Number of Processors Supported: |
4 |
Operating System: |
No |
Optical Drive Type: |
No |
Processor Core: |
Octadeca-core (18 Core) 816822-S01 |
Processor Manufacturer: |
Intel |
Processor Model: |
E7-8860 v4 |
Processor Speed: |
2.20 GHz |
Processor Type: |
Xeon 816822-S01 |
Product Type: |
Server 816822-S01 |
Rack Height: |
4U |
RAID Levels: |
1 |
RAID Supported: |
Yes |
Standard Memory: |
128 GB |
Total Hard Drive Capacity: |
No |
Controllers 816822-S01 |
Controller Type: |
12Gb/s SAS |
RAID Levels: |
1 |
RAID Supported: |
Yes |
Display & Graphics 816822-S01 |
Graphics Controller Manufacturer: |
Matrox 816822-S01 |
Graphics Controller Model: |
G200 |
Graphics Memory Capacity: |
Up to 16 MB |
General Information 816822-S01 |
Brand Name: |
HPE 816822-S01 |
Manufacturer: |
Hewlett Packard Enterprise |
Manufacturer Part Number: |
816822-S01 |
Manufacturer Website Address: |
http://www.hpe.com |
Product Line: |
ProLiant 816822-S01 |
Product Name: |
ProLiant 816822-S01 DL580 G9 Server |
Product Series: |
DL580 G9 |
Product Type: |
Server |
Memory 816822-S01 |
Maximum Memory: |
6 TB |
Memory Technology: |
DDR4 SDRAM 816822-S01 |
Standard Memory: |
128 GB |
Miscellaneous 816822-S01 |
Environmental Certification: |
WEEE |
Environmentally Friendly: |
Yes |
Package Contents: |
- ProLiant DL580 G9 Server
- HPE Ball Bearing Rails
- Cable Management Arm
- High-Voltage Server to PDU Power Cord
|
Network & Communication 816822-S01 |
Ethernet Technology: |
Gigabit Ethernet 816822-S01 |
Physical Characteristics |
Depth: |
29" |
Form Factor: |
Rack 816822-S01 |
Height: |
6.9" |
Rack Height: |
4U |
Weight (Approximate): |
116.56 lb |
Width: |
17.5" |
Power Description 816822-S01 |
Input Voltage: |
120 V AC |
Maximum Power Supply Wattage: |
1200 W |
Number of Power Supplies Installed: |
2 |
Processor & Chipset 816822-S01 |
Number of Processors Installed: |
2 |
Number of Processors Supported: |
4 |
Processor Core: |
Octadeca-core (18 Core) 816822-S01 |
Processor Manufacturer: |
Intel |
Processor Model: |
E7-8860 v4 |
Processor Speed: |
2.20 GHz |
Processor Type: |
Xeon |
Software 816822-S01 |
Operating System: |
No |
Storage 816822-S01 |
Optical Drive Type: |
No |
Total Hard Drive Capacity: |
No |
Warranty 816822-S01 |
Limited Warranty: |
3 Year |
