Detailed Specifications

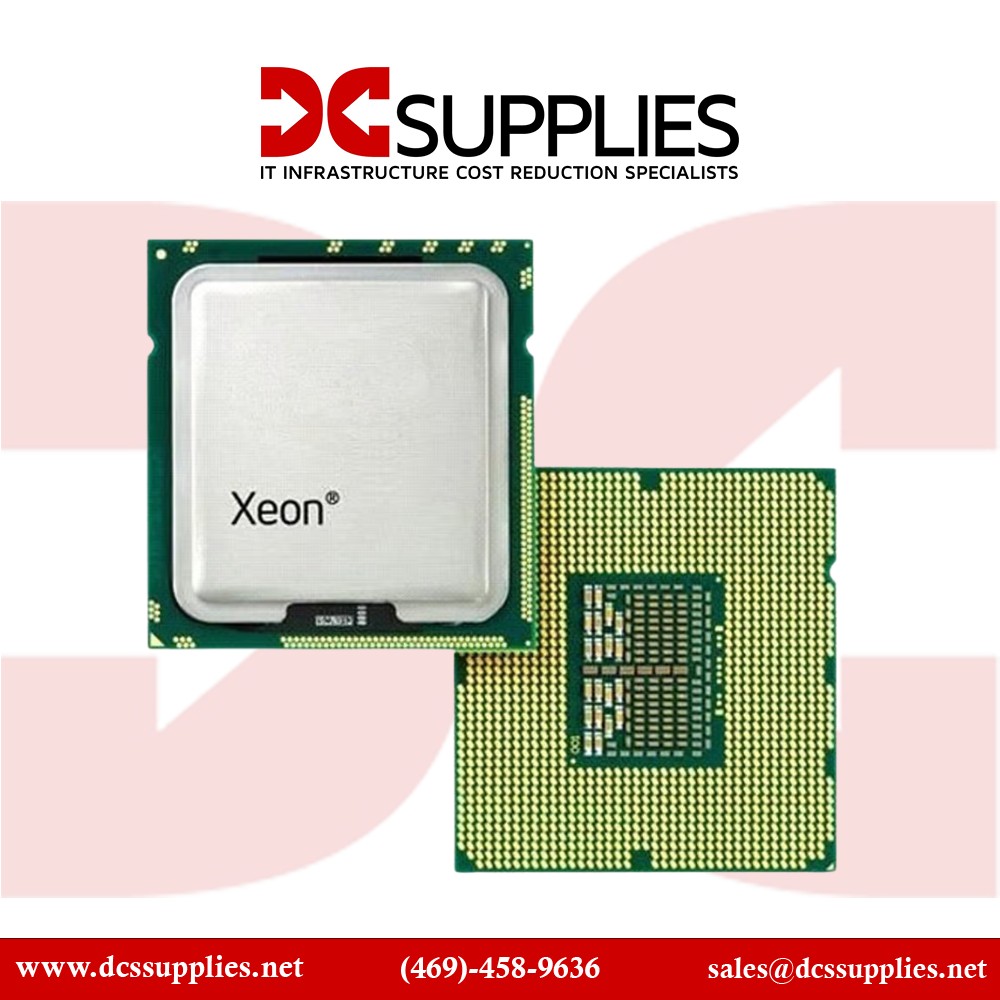

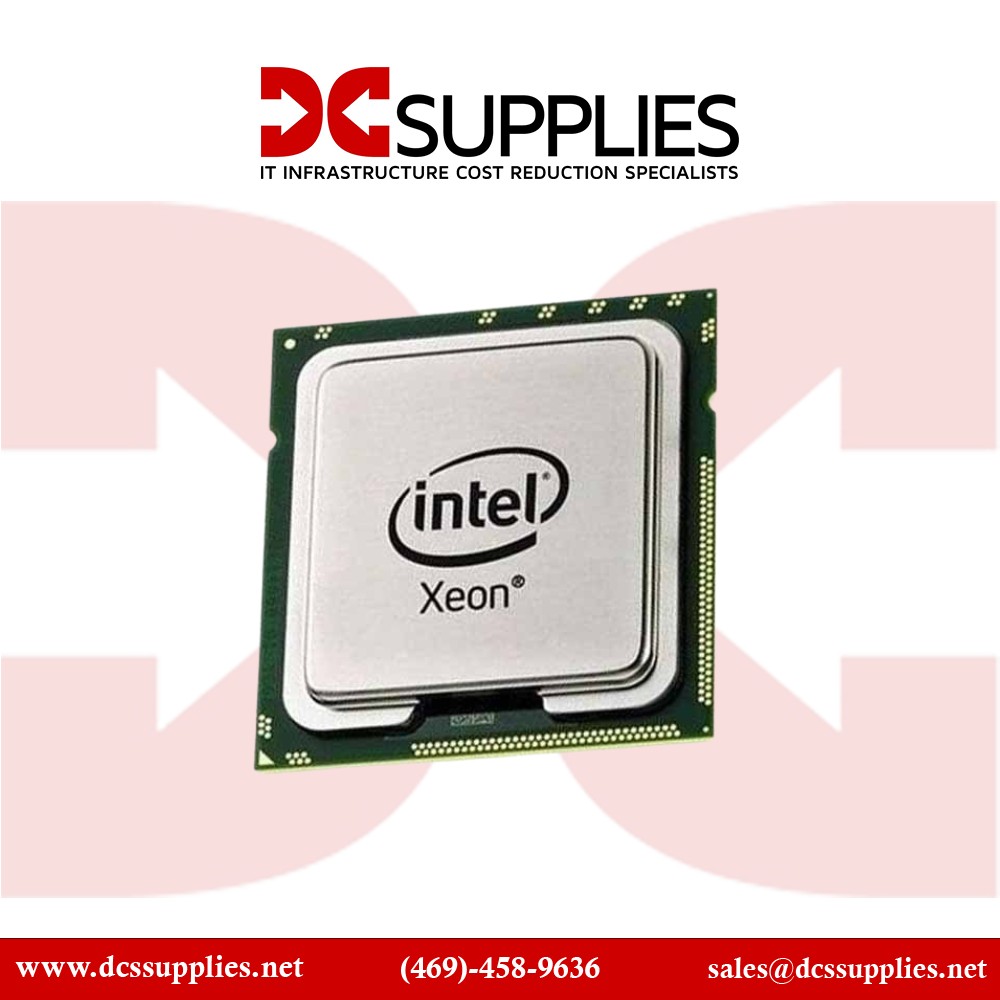

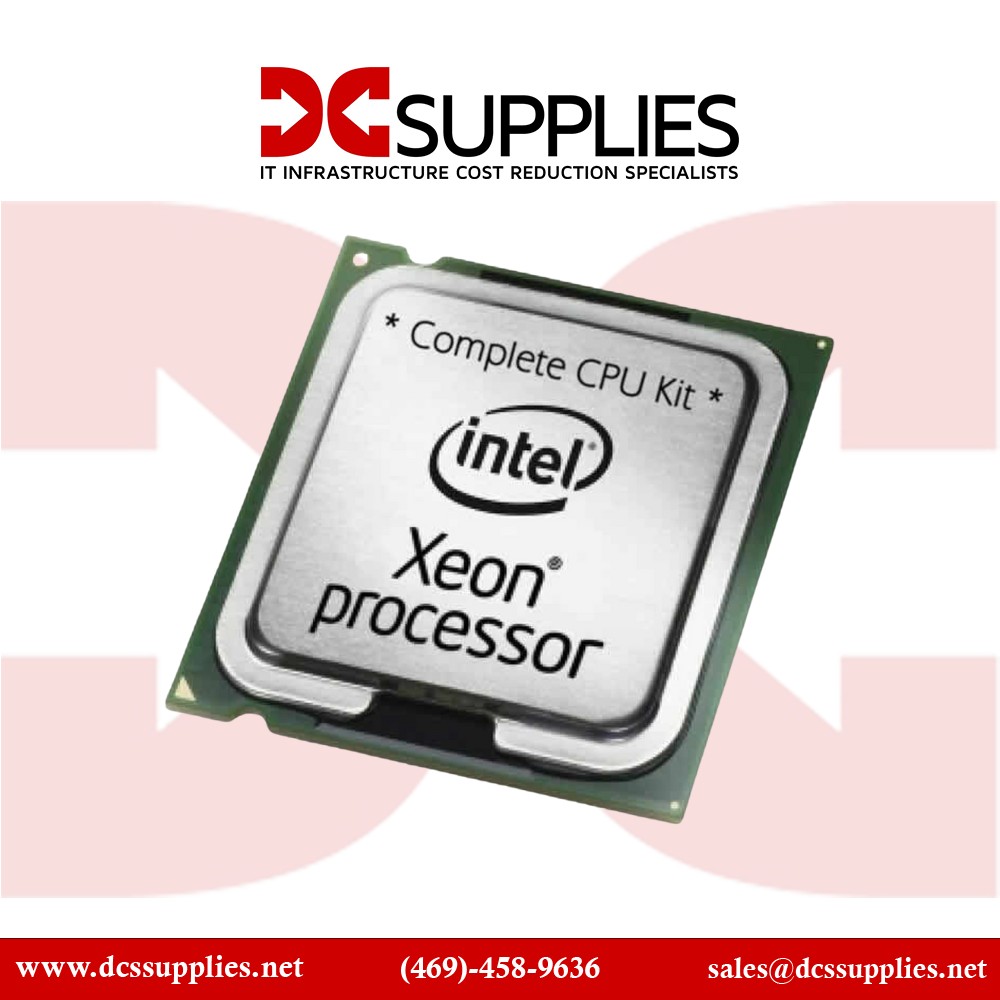

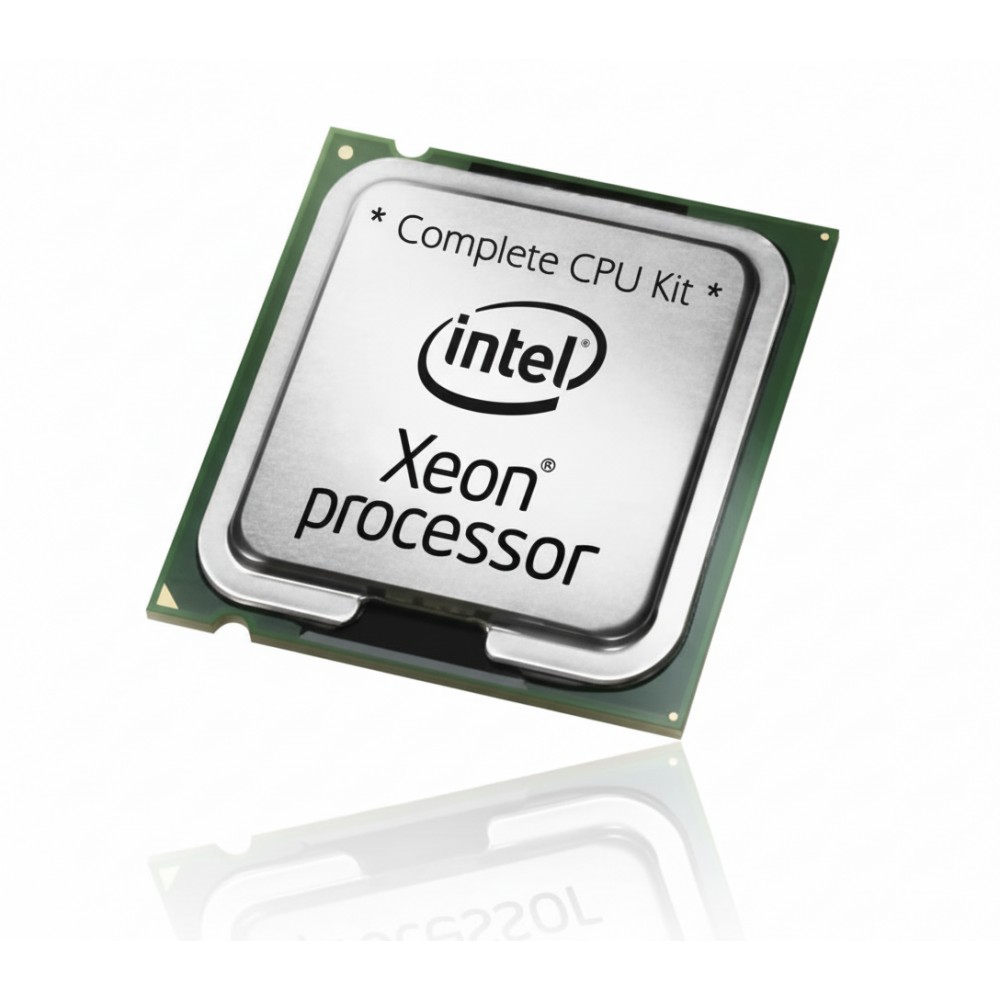

HP 762760-B21 - Server CPU Kit / Intel Xeon E5-2695 v3
Overview :
The HP 762760-B21 is a dual-socket capable processor kit designed for enterprise servers such as the HPE ProLiant DL380 Gen9. It provides 14 physical cores and 28 threads per CPU, enabling virtualization, large-scale compute workloads and high throughput in data centre, cloud or HPC deployments. With a base clock of 2.30 GHz and maximum turbo frequency of 3.30 GHz, it supports modern DDR4 memory and up to 768 GB per socket, making it suitable for high-density memory applications. It is intended for deployment in rack-mounted servers in data centres or campus server rooms and integrates with HPE's management ecosystem including iLO, firmware updates and system diagnostics. The kit includes the processor, appropriate heatsink/fan configuration and is fully compatible with dual-socket server platforms from HPE.
Key Features :
14 cores / 28 threads per processor
2.30 GHz base clock, up to 3.30 GHz turbo
35 MB Intel Smart Cache
Supports up to 768 GB DDR4 memory per socket
120 W thermal design power (TDP)
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | 762760-B21 |
| Product Type | Server Processor Kit |
| Processor Model | Intel Xeon E5-2695 v3 |
| Total Cores | 14 cores |
| Total Threads | 28 threads |
| Base Clock Frequency | 2.30 GHz |
| Max Turbo Frequency | 3.30 GHz |
| Intel Smart Cache | 35 MB |
| Thermal Design Power (TDP) | 120 W |
| Supported Memory Max Size | 768 GB per socket |
| Memory Type | DDR4 1600/1866/2133 |
| QPI / Bus Speed | 9.6 GT/s |
| Socket | FCLGA 2011-3 |
| Lithography | 22 nm |
| Package Size | 52.5 mm × 51 mm (≈2.07" × 2.00") |
