Detailed Specifications

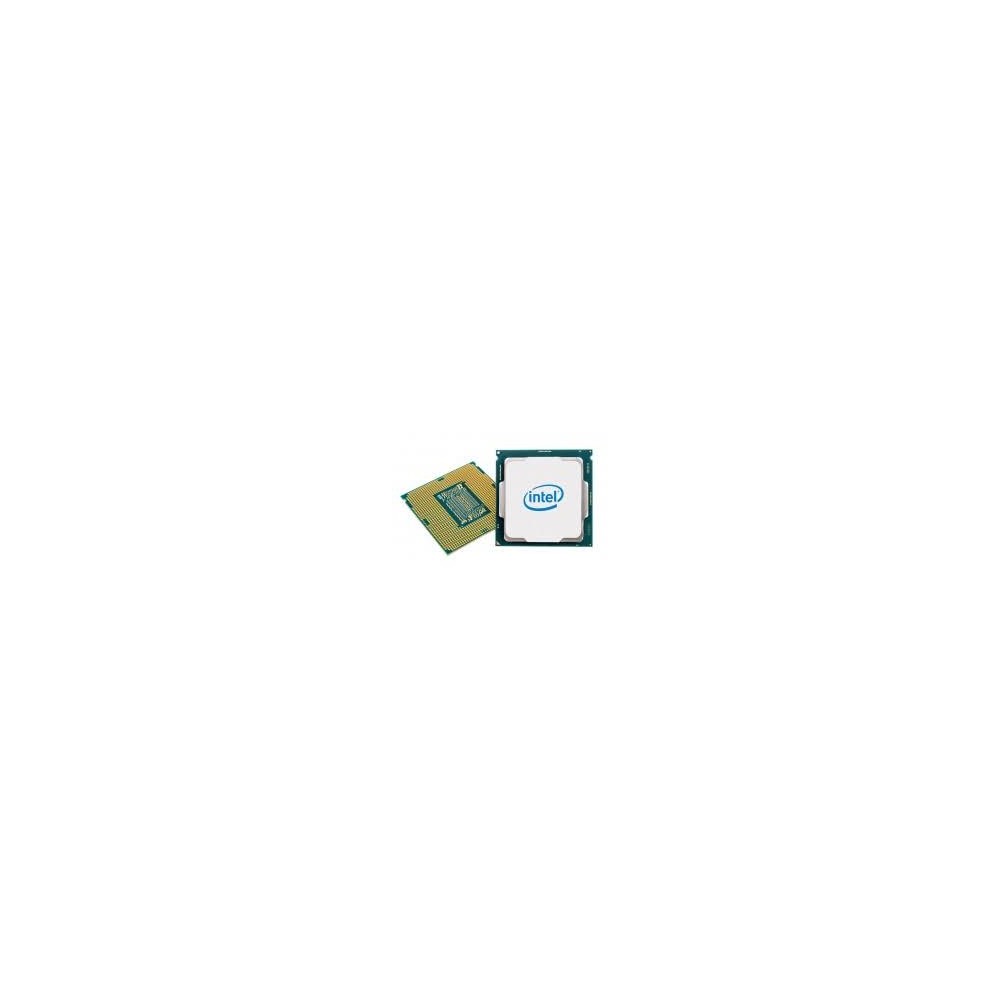

Intel BX8070110100 - Core i3-10100 10th Gen Desktop Processor
Overview :
The Intel BX8070110100 is a 10th generation Core i3-10100 desktop processor for system integrators, procurement teams, and workstation builders requiring balanced performance for business and entry-level technical workloads. It solves the limitation of previous-generation i3s by introducing Hyper-Threading, doubling thread count from four to eight for improved multitasking and compilation efficiency .
Technical capability includes four cores and eight threads with a 3.60 GHz base frequency and 4.30 GHz max turbo frequency via Intel Turbo Boost 2.0 technology . The 6MB Intel Smart Cache and 8 GT/s bus speed support memory bandwidth up to 41.6 GB/s . Maximum memory capacity is 128GB of DDR4-2666 across two channels; ECC memory is not supported .
Deployment targets include office workstations, developer machines, edge compute nodes, and light virtualization hosts. Integrated Intel UHD Graphics 630 provides three-display output support without a discrete GPU . The boxed version includes the OEM thermal solution . Socket is LGA1200, compatible with Intel 400 and 500 series chipsets (B460, H410, Z490, B560, H510, Z590) .
Use this processor when you need a cost-effective 65W TDP CPU with integrated graphics for standard business deployments. Do NOT use if you require ECC memory support, PCIe 4.0 (10th gen is PCIe 3.0 only), or more than 4 cores per socket×select Core i5/i7/i9 or Xeon alternatives.
Key Features :
4 cores / 8 threads with Hyper-Threading
3.60 GHz base / 4.30 GHz turbo
Integrated Intel UHD Graphics 630
65W TDP with boxed cooler included
LGA1200 socket, PCIe 3.0 x16
Specifications :
| Specification | Value |
|---|
| Brand | Intel |
| Part Number | BX8070110100 |
| Product Type | Desktop processor |
| Product Family | 10th Generation Intel Core i3 |
| Code Name | Comet Lake |
| Vertical Segment | Desktop |
| Processor Number | i3-10100 |
| Lithography | 14 nm |
| Cores | 4 |
| Threads | 8 |
| Base Frequency | 3.60 GHz |
| Max Turbo Frequency | 4.30 GHz |
| Cache | 6 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 65 W |
| Socket | FCLGA1200 |
| Max Memory Size | 128 GB |
| Memory Types | DDR4-2666 |
| Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Support | No |
| Integrated Graphics | Intel UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.10 GHz |
| Max Displays Supported | 3 |
| PCI Express Revision | 3.0 |
| Max PCI Express Lanes | 16 |
| PCI Express Configurations | 1x16, 2x8, 1x8+2x4 |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Cooler Included | Yes (boxed version) |
| Launch Date | Q2'20 |
| Instruction Set Extensions | SSE4.1, SSE4.2, AVX2 |
