Detailed Specifications

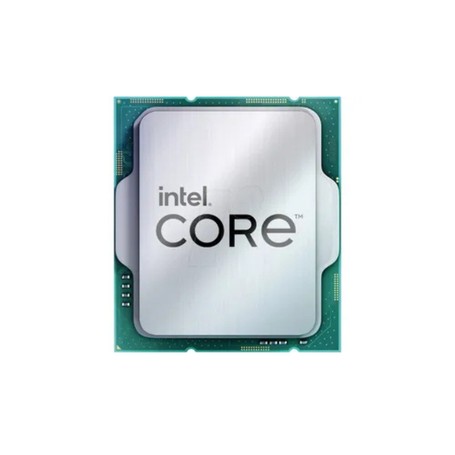

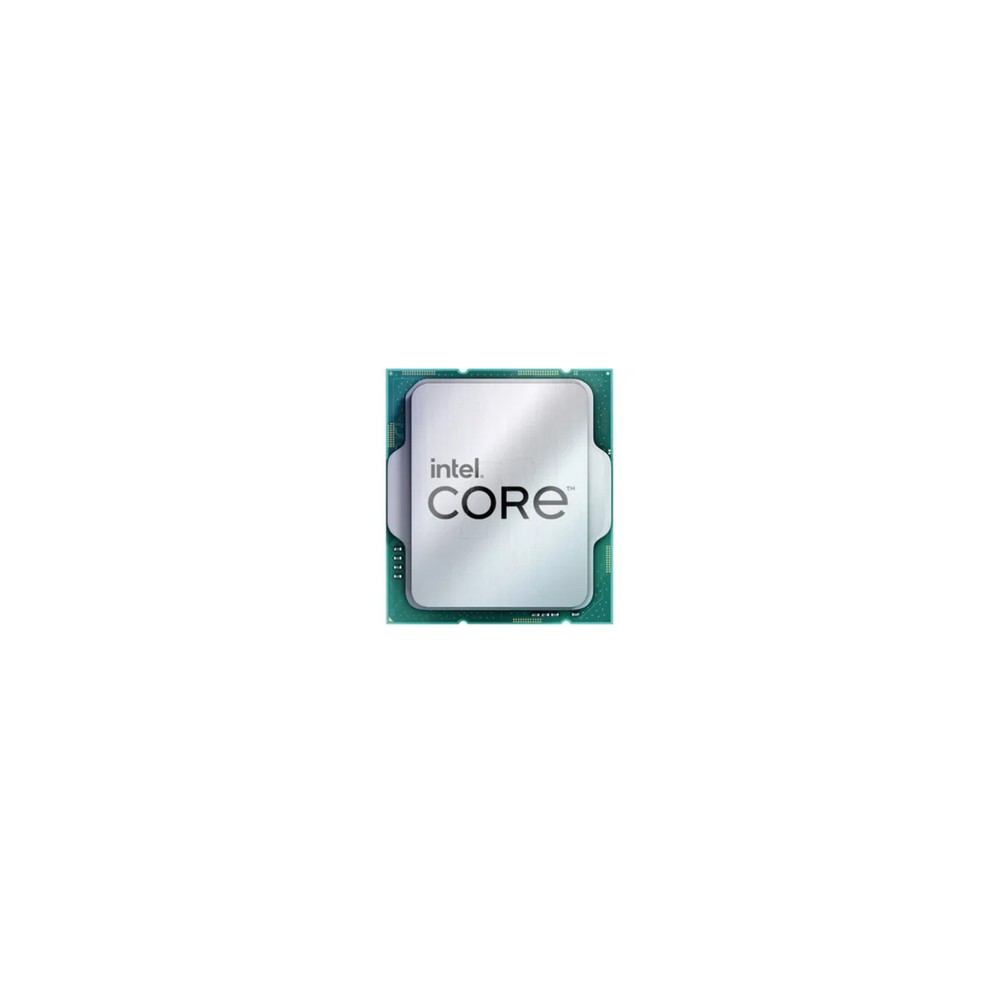

Intel CM8071504821113 Desktop Processor
Overview :
The Intel CM8071504821113 is an OEM/tray commercial microprocessor built on the 14th generation Core i5-14400F Raptor Lake Refresh architecture. System integrators, corporate hardware procurement teams, and IT infrastructure specialists deploy this computing component within mass-market enterprise desktops, digital signage arrays, and edge workstation nodes. It uses a hardware-level hybrid design to mitigate operating power while routing higher-priority background instructions efficiently.
This processor delivers a 10-core, 16-thread processing matrix comprised of 6 Performance-cores and 4 Efficient-cores, combined with 20 MB of Intel Smart Cache.Operating at a 65W base envelope, it scales dynamically via clock scaling from a 2.5 GHz base up to 4.7 GHz when complex transactional processing demands peak.Engineered for the FCLGA1700 interface, the platform supports up to 20 total PCIe express links across Gen 5.0 and Gen 4.0 storage or network arrays.
The microchip is routinely integrated into micro-ATX layouts, business enclosures, and retail client machines matching Intel 600 and 700 series controller hubs. Platforms running older controller firmware revisions require an update to the underlying board system BIOS prior to deployment validation.Do not choose this model if your terminal requires onboard integrated graphics pipelines or multi-CPU load sharing, as it omits onboard graphics and operates solely in single-socket setups.
Key Features :
Performance hybrid architecture splits 10 cores into 6P and 4E zones.
Maximum clock frequency reaches up to 4.7 GHz via Turbo Boost.
Dual-channel memory controllers link to DDR5 4800 or DDR4 3200 modules.
Integrated PCIe Gen 5.0 lines provide direct high-speed array links.
Missing integrated graphics keeps processing thermal footprints controlled.
Specifications :
| Attribute | Specification |
| Brand | Intel |
| Part Number | CM8071504821113 |
| Product Type | Desktop Processor |
| CPU Series | Core i5 14th Generation (i5-14400F) |
| Architecture Cores | 10 Cores (6 Performance-cores / 4 Efficient-cores) |
| Thread Execution Count | 16 Threads |
| Base Operating Frequency | 2.5 GHz (P-core Base) / 1.8 GHz (E-core Base) |
| Max Turbo Frequency | 4.7 GHz (P-core Max) / 3.5 GHz (E-core Max) |
| On-Board Cache Array | 20 MB Intel Smart Cache (L3) / 9.5 MB L2 Cache |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 148 W |
| Supported Memory Types | Up to DDR5 4800 MT/s / Up to DDR4 3200 MT/s |
| Max Memory Capacity | 192 GB |
| Expansion Interfaces | PCI Express Revision 5.0 and 4.0 (Up to 20 Lanes) |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1S Only |
| On-Board Graphics | None Integrated Graphics |
| Tjunction Temperature | 100°C |
