Detailed Specifications

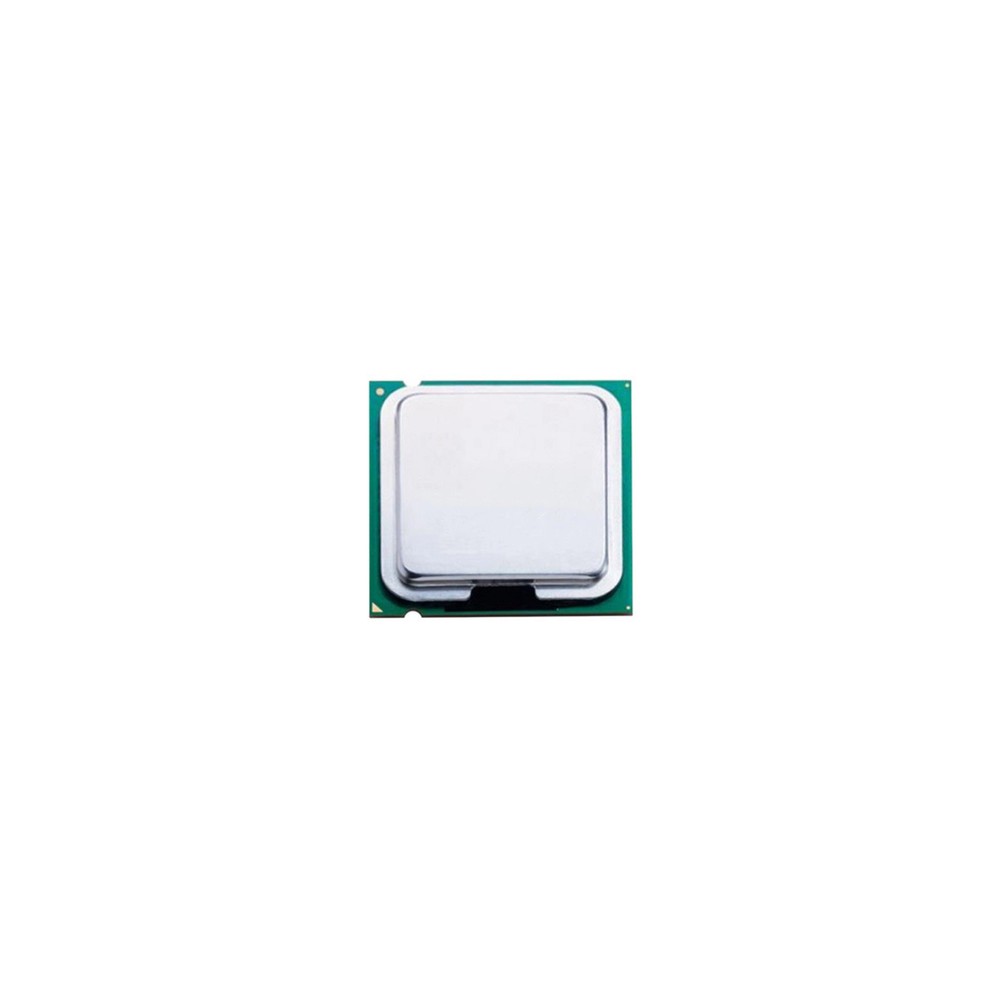

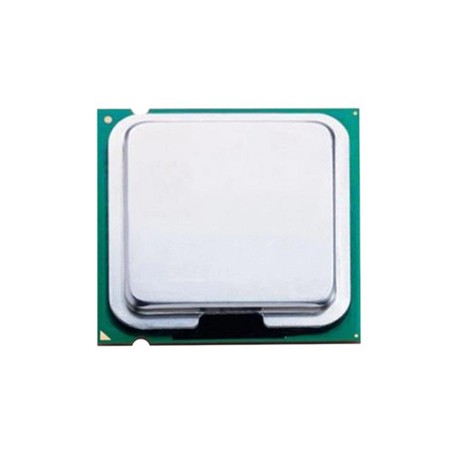

Intel BX80768285K Desktop Processor
Overview :
The Intel BX80768285K is a premier flagship Core Ultra 9 285K retail-boxed desktop processor constructed on the Arrow Lake architecture. Engineered to fulfill the high-intensity performance requirements of engineering simulation hosts, massive AI dev stations, and enterprise multi-threaded rendering platforms, this unlocked CPU leverages native hardware optimizations to maintain exceptional data flow. It moves past traditional hyper-threading loops to offer an exceptionally stable parallel execution profile across data centers, corporate workspaces, and remote edge compute cells.
Utilizing a high-density compute arrangement, the processor coordinates 8 Performance-cores and 16 Efficient-cores to complete 24 simultaneous processing threads. The underlying core blocks operate at a solid 3.70 GHz base clock for P-cores, surging up to a maximum peak of 5.70 GHz through Intel Thermal Velocity Boost technology. The CPU contains a dedicated internal Intel AI Boost Neural Processing Unit (NPU) delivering a standalone 13 TOPS footprint for localized hardware-accelerated deep learning algorithms, alongside 36 MB of shared Intel Smart Cache.
The onboard graphics core features built-in Intel Graphics capabilities to safely run up to four unique client display monitors.For volatile storage, it manages a maximal dual-channel capacity of up to 192 GB of high-frequency unbuffered DDR5 system RAM with data throughput capabilities scaling up to 6400 MT/s. Ensure this hardware component is not combined with older legacy DDR4 layouts or motherboard infrastructures housing LGA1700 physical interfaces.
Key Features :
24-core native hybrid computing layout maximizes continuous multitasking pipelines.
Integrated Intel AI Boost NPU drives 13 TOPS of specialized local inference.
Embedded PCIe 5.0 and 4.0 controllers provision 24 direct platform expansion lanes.
Unlocked architecture allows precise core multiplier scaling for heavy server nodes.
Dual-channel unbuffered DDR5 architecture scales memory capacity up to 192 GB.
Specifications :
| |
| Brand | Intel |
| Part Number | BX80768285K |
| Product Type | Desktop Processor |
| Total Cores | 24 (8 Performance-cores / 16 Efficient-cores) |
| Total Threads | 24 threads |
| Base Clock Frequency | 3.70 GHz (Performance-core) / 3.20 GHz (Efficient-core) |
| Max Turbo Frequency | 5.70 GHz (Intel Thermal Velocity Boost) |
| Cache Size | 36 MB Intel Smart Cache (Shared L3) |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 250 W |
| Memory Support | DDR5 up to 6400 MT/s (Dual-Channel) |
| Maximum Memory Size | 192 GB |
| Integrated Graphics | Intel Graphics (Up to 4 Displays) |
| Neural Processing Unit | Intel AI Boost (13 TOPS Peak) |
| Supported Sockets | FCLGA1851 |
| PCI Express Revision | 5.0 and 4.0 (Up to 24 Lanes) |
| Maximum Operating Temperature | 105 °C |
