Detailed Specifications

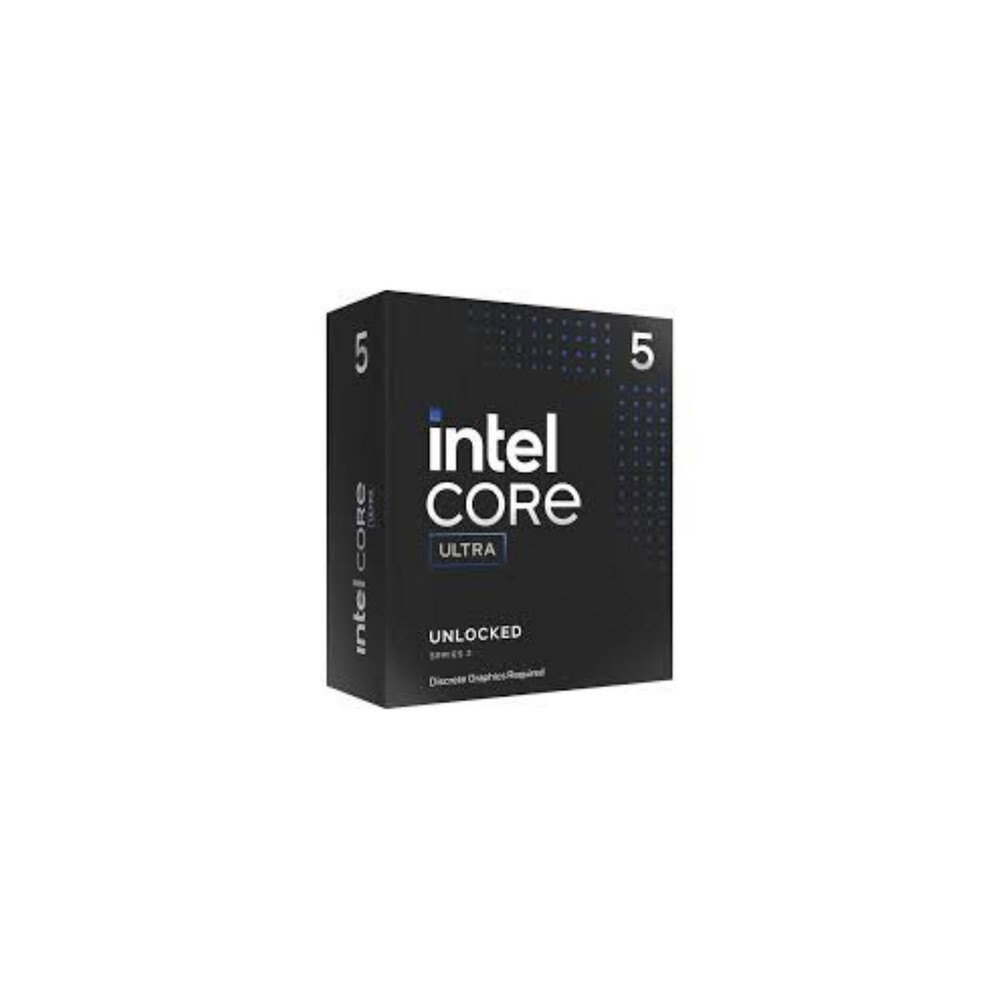

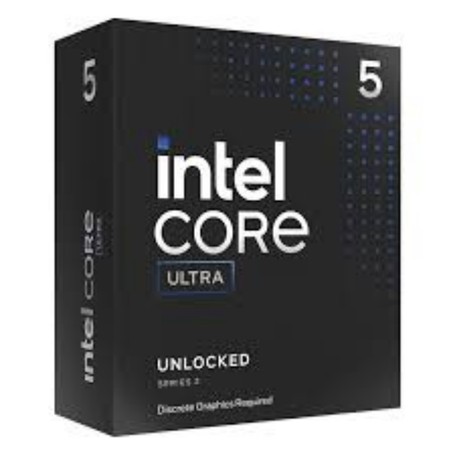

Intel BX80768245KF Desktop Processor
Overview :
The Intel BX80768245KF is a retail-boxed Core Ultra 5 245KF desktop processor engineered on the advanced Arrow Lake-S architecture.Purpose-built for mid-tier engineering workspaces, distributed commercial fleets, and localized AI compute tasks, this SKU omits an integrated graphics processor to deliver clean computational throughput. Removing the graphics block optimizes internal thermal distribution and lowers parasitic energy loss for procurement teams deploying multi-system infrastructure.
Configured with a specialized hybrid execution matrix, the processor coordinates 6 Performance-cores and 8 Efficient-cores to yield 14 concurrent processing threads without hyper-threading resource overhead. It sustains a baseline clock configuration of 4.20 GHz for the Performance-cores, scaling directly to a 5.20 GHz max turbo limit under standard operation. To accelerate local matrix calculations, it integrates a hardware-level Intel AI Boost Neural Processing Unit (NPU) capable of 13 TOPS peak performance.
Since this processor lacks an integrated GPU, system deployment requires a discrete PCIe graphics accelerator card to feed video signals to workstation displays.The hardware natively controls up to 192 GB of high-speed dual-channel DDR5 unbuffered system memory running at up to 6400 MT/s. Do not map this component into legacy hardware systems built for LGA1700 sockets or older DDR4 memory profiles.
Key Features :
14-core hybrid blueprint handles parallel multitasking workloads efficiently.
Dedicated Intel AI Boost NPU offloads 13 TOPS of local AI workloads.
24 discrete PCIe 5.0 and 4.0 lanes connect directly to high-speed storage arrays.
Lower 159W maximum turbo footprint saves power across dense corporate deployments.
Open multiplier layout allows precise clock scaling adjustments for system tuning.
Specifications :
| |
| Brand | Intel |
| Part Number | BX80768245KF |
| Product Type | Desktop Processor |
| Total Cores | 14 (6 Performance-cores / 8 Efficient-cores) |
| Total Threads | 14 threads |
| Base Clock Frequency | 4.20 GHz (Performance-core) / 3.60 GHz (Efficient-core) |
| Max Turbo Frequency | 5.20 GHz (Intel Turbo Boost Technology 2.0) |
| Cache Size | 24 MB Intel Smart Cache (Shared L3) |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 159 W |
| Memory Support | DDR5 up to 6400 MT/s (Dual-Channel) |
| Maximum Memory Size | 192 GB |
| Integrated Graphics | None (Discrete Graphics Card Required) |
| Neural Processing Unit | Intel AI Boost (13 TOPS Peak) |
| Supported Sockets | FCLGA1851 |
| PCI Express Revision | 5.0 and 4.0 (Up to 24 Lanes) |
| Maximum Operating Temperature | 105 °C |
