Detailed Specifications

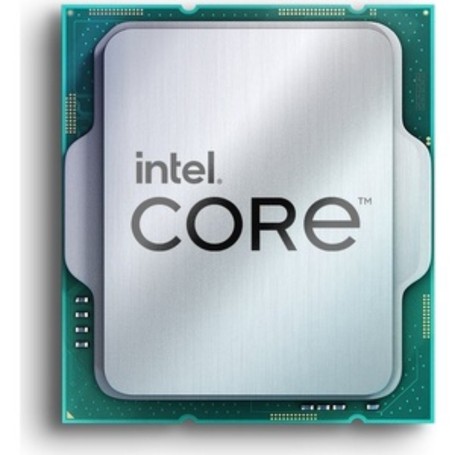

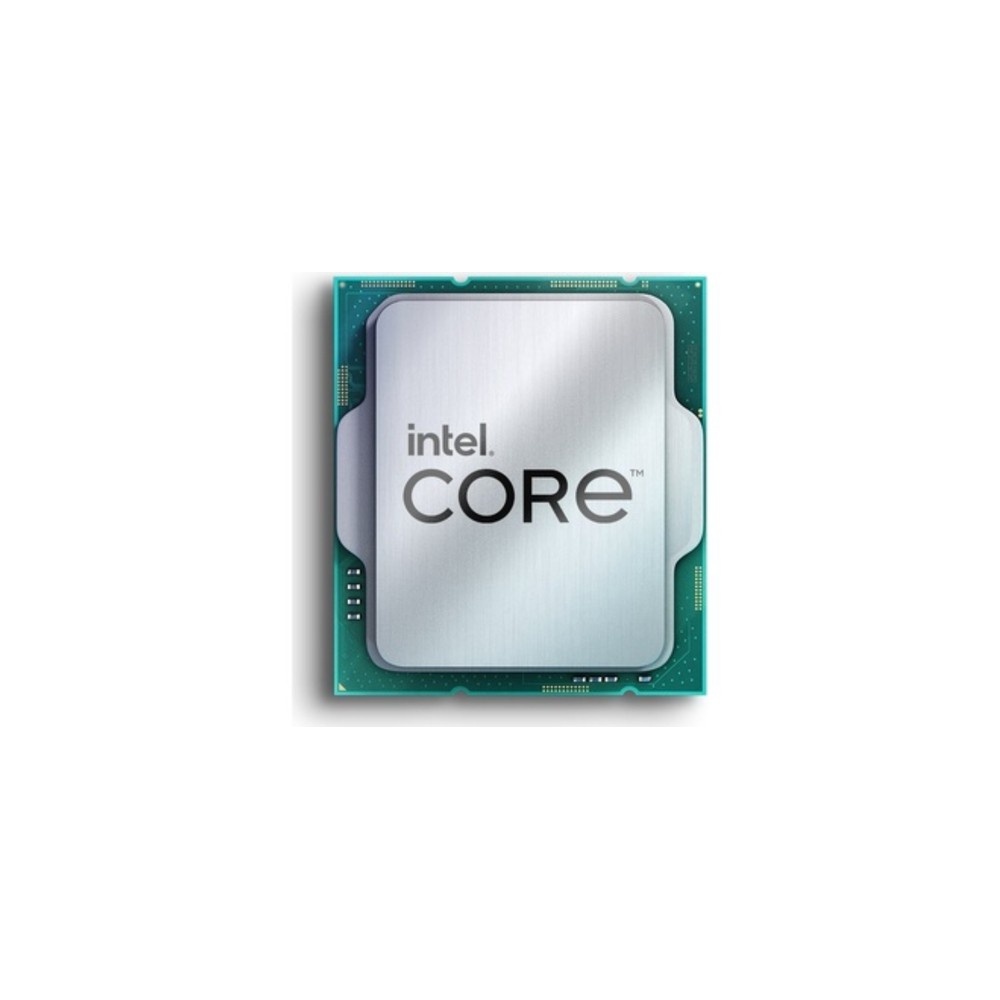

Intel AT807680640f Desktop Processor
Overview :
The Intel AT807680640F is an enterprise-class Core Ultra 5 245K desktop processor based on the Arrow Lake architecture and distributed strictly as an OEM tray component. Purpose-built for bulk system integration, enterprise workstation fleets, and network edge compute clusters, this processor drops consumer retail packaging to optimize deployment logistics for commercial systems builders and IT procurement teams.
Built with a hardware-level hybrid design, the processor operates 6 Performance-cores and 8 Efficient-cores to deliver 14 concurrent threads without hyper-threading overhead.It functions at a native base clock frequency of 4.20 GHz for the major compute blocks and scales dynamically up to a maximum 5.20 GHz under standard operational boost parameters.The system logic implements a dedicated Intel AI Boost Neural Processing Unit (NPU) driving 13 TOPS of specialized local machine learning and inference processing alongside 24 MB of Intel Smart Cache.
This computing engine drops cleanly into the FCLGA1851 socket grid, requiring business-class mainboards powered by Intel Z890, Q870, or W880 system chipsets.Running at a baseline thermal profile of 125W, it stretches up to a maximum turbo power limit of 159W under full data processing matrix loads.Because it is an OEM tray processor, it ships with no thermal fan; integration teams must supply qualified hardware cooling solutions certified for persistent 159W heat dissipation.
The internal architecture includes an active integrated Intel Graphics engine that naturally drives up to four independent client display channels.System memory compatibility supports up to 192 GB of high-frequency dual-channel DDR5 unbuffered RAM, complete with native ECC error correction processing to eliminate data corruption. Do not attempt back-porting into older legacy LGA1700 or DDR4 mainboard infrastructures.
Key Features :
14-core native hybrid core arrangement optimizes scalable commercial multi-tasking.
Dedicated Intel AI Boost NPU drives 13 TOPS of localized machine learning.
Native tray distribution layout eliminates physical packaging footprint for system builders.
Integrated Intel Graphics core safely runs up to 4 independent workspace displays.
Integrated PCIe 5.0 and 4.0 buses afford up to 24 direct system lanes.
Specifications :
| |
| Brand | Intel |
| Part Number | AT807680640F |
| Product Type | Desktop Processor |
| Total Cores | 14 (6 Performance-cores / 8 Efficient-cores) |
| Total Threads | 14 threads |
| Base Clock Frequency | 4.20 GHz (Performance-core) / 3.60 GHz (Efficient-core) |
| Max Turbo Frequency | 5.20 GHz (Intel Turbo Boost Technology 2.0) |
| Cache Size | 24 MB Intel Smart Cache (Shared L3) |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 159 W |
| Memory Support | DDR5 up to 6400 MT/s (Dual-Channel) |
| Maximum Memory Size | 192 GB |
| ECC Memory Supported | Yes |
| Supported Sockets | FCLGA1851 |
| PCI Express Revision | 5.0 and 4.0 (Up to 24 Lanes) |
| Integrated Graphics | Intel Graphics (Up to 4 Displays) |
| Neural Processing Unit | Intel AI Boost (13 TOPS Peak) |
| Maximum Operating Temperature | 105 °C |
