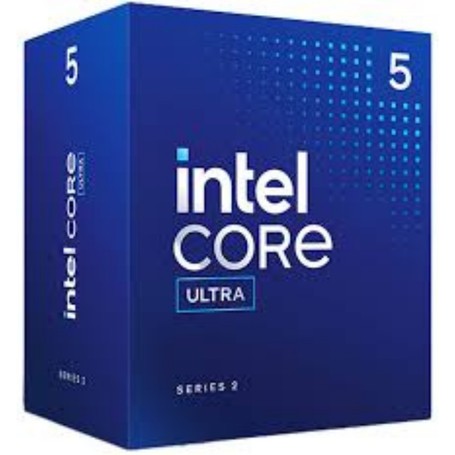

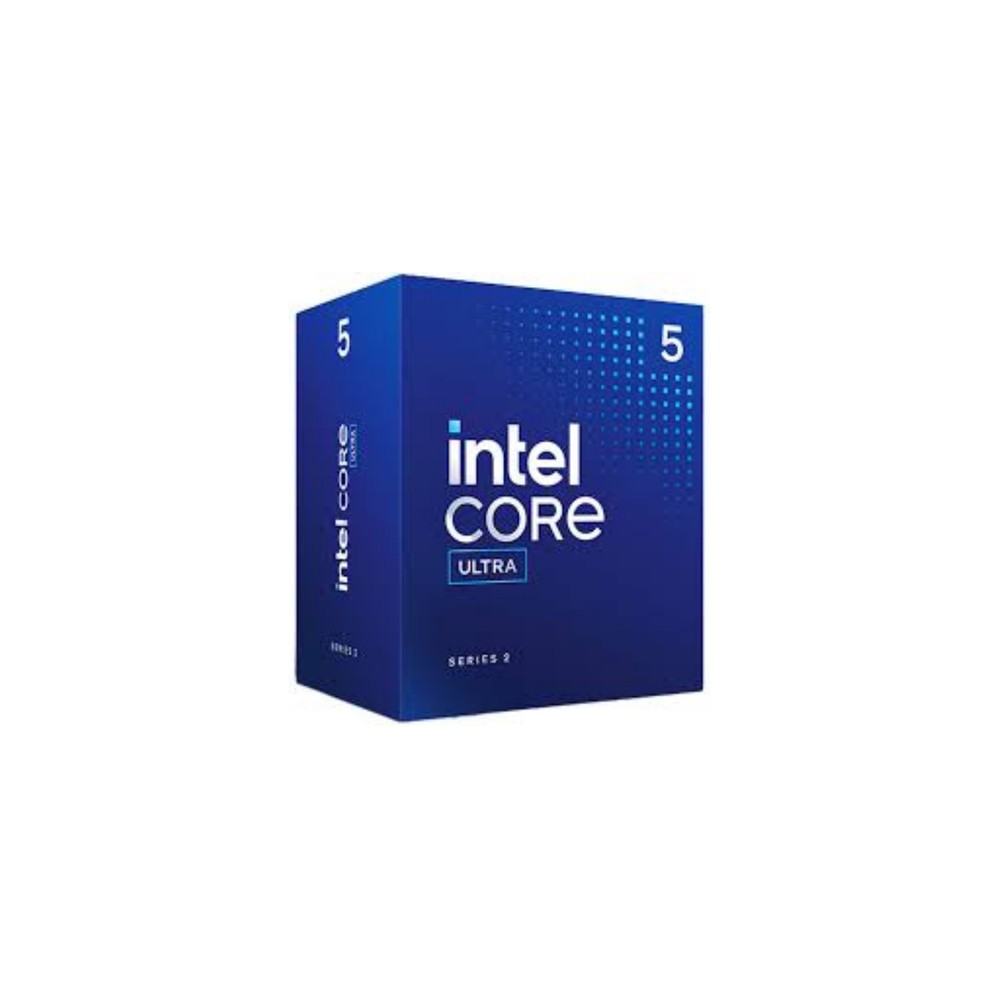

Intel BX80768225F Desktop Processor

Overview :

The Intel BX80768225F is a mainstream, 10-core desktop processor engineered on the Arrow Lake architecture (Series 2). Enterprise procurement managers and system builders deploy this SKU to run standard corporate office nodes, entry-level engineering setups, and edge computing terminals that require stable, multithreaded crunching power. Because this is an "F" suffix processor, it lacks integrated graphics silicon, which completely eliminates redundant component costs when building workstations that rely entirely on a dedicated PCIe discrete graphics card.

This processor splits its computing workload across 6 Performance-cores and 4 Efficient-cores, keeping base electrical requirements low while executing parallel background processes cleanly. It is built with an integrated Intel AI Boost NPU engine driving up to 13 TOPS to handle modern on-device AI algorithms and automated corporate workflow assistants natively. The processing core links directly to dual-channel DDR5 system memory up to 6400 MT/s and features 24 configurable lanes of PCIe 5.0 and 4.0 data bandwidth.

The CPU mounts directly into the newer FCLGA1851 socket and comes retail-packaged with an Intel Laminar RM2 standard thermal cooling solution. This processor is built exclusively for native 800-series chipset motherboards. Do not deploy this SKU in systems lacking a separate, dedicated graphics unit, and avoid trying to install it into older motherboards built with legacy LGA1700 or LGA1200 CPU sockets.

Key Features :

• 10 distinct cores and 10 threads balance low power use with execution.

• Integrated 13 TOPS NPU accelerates client-side AI app performance.

• Core architecture supports up to 256GB of fast DDR5 system memory.

• Dedicated PCIe 5.0 lanes secure max speed for next-gen NVMe drives.

• Boxed unit includes an Intel Laminar RM2 stock thermal solution.

Specifications :
