Detailed Specifications

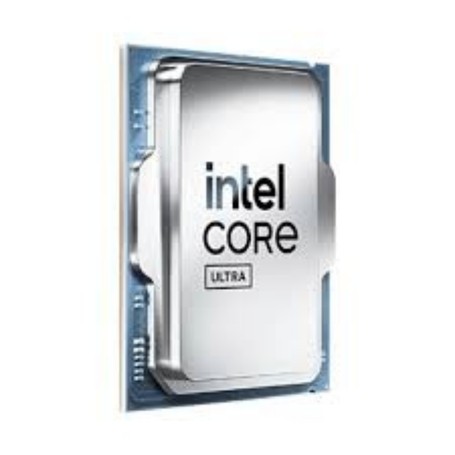

Intel AT8076806411 Desktop Processor
Overview :
The Intel AT8076806411 is an OEM/Tray 15th Generation Intel Core Ultra 7 265F desktop processor. Engineered for advanced enterprise systems, next-gen commercial workstations, and demanding client computing architectures, this processor handles deep multi-application processing and native edge AI workloads fluidly. It provides high-volume system integrators and IT hardware infrastructure teams with an elite, highly efficient processing engine tailored for modern corporate deployments.
Architected on a cutting-edge TSMC 3nm production node using the Arrow Lake-S microarchitecture, this CPU features a decoupled hybrid execution framework running 20 physical cores and 20 computational threads.This design coordinates 8 Performance-cores (P-cores) ticking at a 2.40GHz base frequency with 12 Efficiency-cores (E-cores) operating at an 1.80GHz baseline.Utilizing Intel Turbo Boost Max Technology 3.0, the processor scales up to an operational ceiling of 5.30GHz. It is supported by a massive 30MB Intel Smart Cache and 36MB of total L2 cache to maximize memory loop performance.
This multi-core component seats securely into next-generation FCLGA1851 hardware interface slots on compatible Intel 800-series platform controller hubs.The on-die memory controller introduces broad infrastructure scalability, managing up to 256GB of dual-channel DDR5 system memory at native transfer speeds up to 6400 MT/s.It features an integrated neural processing unit (NPU)×the Intel AI Boost engine delivering 13 Peak TOPS×to offload local AI software frameworks like OpenVINO and DirectML. Do not deploy this processor module in system configurations lacking an autonomous discrete graphics processing unit (GPU), as the "F" product classification contains no integrated on-chip graphics execution silicon.
Key Features :
Decoupled 20-core layout optimizes high-density multitasking workflows.
5.30GHz maximum turbo velocity manages intense application transaction spikes.
Integrated Intel AI Boost NPU accelerates dedicated client edge AI models.
Massive 30MB Smart Cache array reduces low-level execution pipeline latency.
Native PCIe 5.0 and 4.0 data architecture delivers 24 high-speed expansion lanes.
Specifications :
| Specification Field | Technical Data |
| Brand | Intel |
| Part Number | AT8076806411 |
| S-Spec Code | SRQCV |
| Product Type | Desktop Processor |
| Processor Number | Core Ultra 7 265F |
| Product Collection | Intel Core Ultra Processors (Series 2) |
| Microarchitecture | Arrow Lake-S |
| Total Physical Cores | 20 (8 P-Cores + 12 E-Cores) |
| Total Execution Threads | 20 |
| Max Turbo Frequency | 5.30 GHz |
| Cache Architecture | 30 MB Intel Smart Cache |
| Total L2 Cache | 36 MB |
| Thermal Power (Base / Max Turbo) | 65 Watts / 182 Watts Max |
| Host Socket Interface | FCLGA1851 |
| Supported Memory Types | Dual-Channel DDR5 up to 6400 MT/s |
| Max Memory Capacity | 256 GB |
| Integrated NPU Engine | Intel AI Boost (13 NPU Peak TOPS) |
