Detailed Specifications

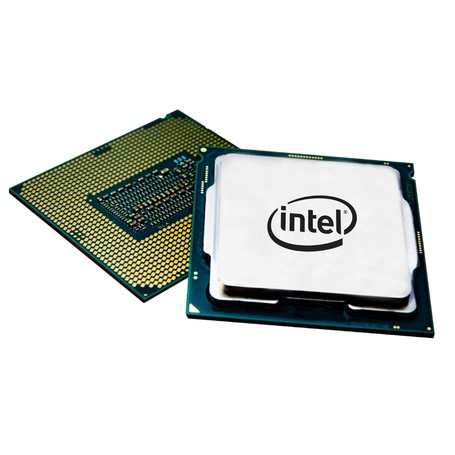

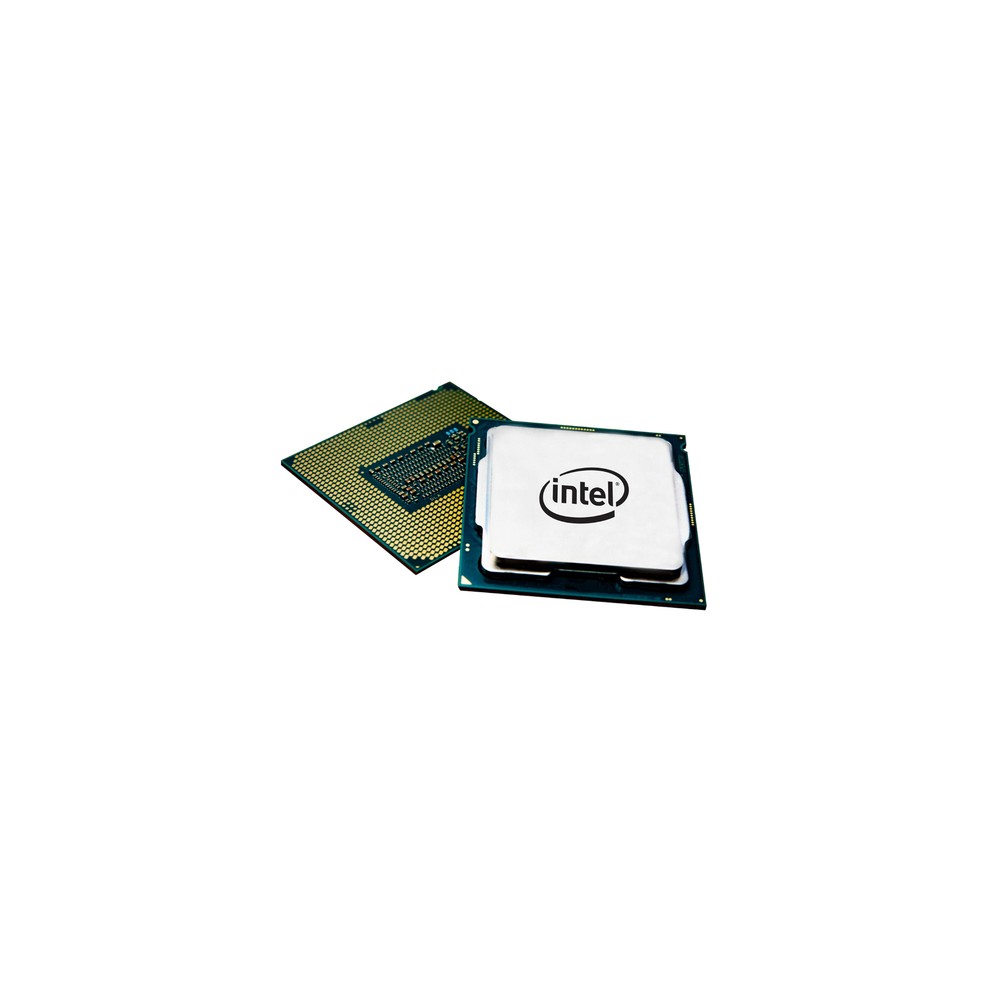

Intel SRG13 Desktop Processor
Overview :
The Intel SRG13 is the specific production-specification code (S-Spec) for the R0 stepping of the 9th Generation Intel Core i7-9700 desktop processor. Engineered for high-tier enterprise workstations, corporate fleet platforms, and mainstream commercial client builds, this processor drives robust multithreaded productivity. It offers system integrators and IT hardware procurement teams a high-performance, stable computing node for demanding office application ecosystems.
Fabricated on an optimized 14nm lithography process using the Coffee Lake-S Refresh microarchitecture, the chip features 8 physical cores and 8 simultaneous computing threads. The CPU runs at a 3.00GHz baseline clock velocity and utilizes Intel Turbo Boost Technology 2.0 to scale up to an impressive 4.70GHz maximum turbo frequency. Supported by a 12MB Intel Smart Cache and an 8 GT/s bus interconnect, this architecture minimizes processor execution stalling during large spreadsheet calculations or multi-layered local data modeling.
The desktop component interfaces with standard FCLGA1151 slots on compatible Intel 300-series motherboard platform controller hubs. It incorporates an integrated memory controller managing up to 128GB of dual-channel, non-ECC DDR4 system memory running at native transfer speeds up to 2666MHz. For onboard visual processing, on-die Intel UHD Graphics 630 silicon supplies up to an 1.20GHz dynamic turbo frequency, driving up to three independent 4K workstation displays natively without requiring an external discrete graphics card. Do not deploy this 9th-generation client processor inside legacy Intel 100 or 200-series chipset motherboards, as they lack the firmware routing required for this multi-core configuration.
Key Features :
Native octa-core architecture optimizes dedicated single-thread execution workloads.
4.70GHz maximum turbo velocity manages abrupt processing spikes effortlessly.
On-die Intel UHD Graphics 630 natively runs three independent 4K workstation screens.
Integrated 12MB Smart Cache layer minimizes low-level core processing delays.
65-watt low thermal profile allows integration inside quiet, space-saving chassis.
Specifications :
| Specification Field | Technical Data |
| Brand | Intel |
| Part Number | SRG13 |
| Product Type | Desktop Processor |
| Processor Number | i7-9700 |
| Core Stepping | R0 |
| Microarchitecture Code Name | Coffee Lake |
| Total Physical Cores | 8 |
| Total Execution Threads | 8 |
| Baseline Clock Speed | 3.00 GHz |
| Max Turbo Speed | 4.70 GHz |
| Cache Architecture | 12 MB Intel Smart Cache |
| Thermal Design Power (TDP) | 65 Watts |
| Interface Socket | FCLGA1151 (300 Series Chipset Only) |
| Integrated Graphics Engine | Intel UHD Graphics 630 |
| Graphics Base / Turbo Frequency | 350 MHz / 1.20 GHz |
| Memory Support Type | Dual-Channel DDR4-2666 |
| Max Memory Capacity | 128 GB |
